Place of Origin:
China
Brand Name:
LTPM China
Certification:
CE, GMP
Model Number:
FL-Series
Contact Us

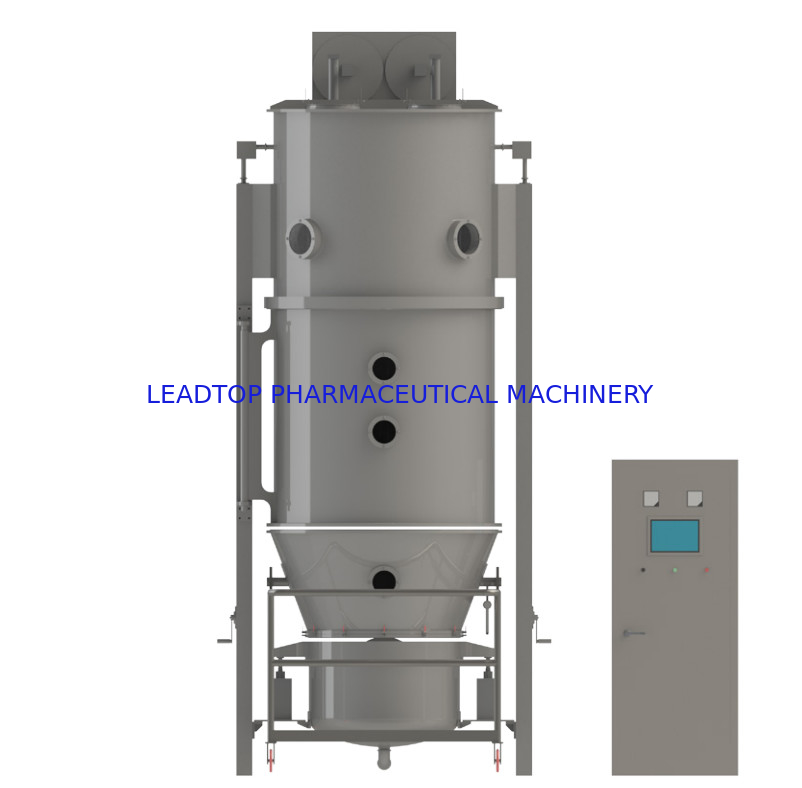

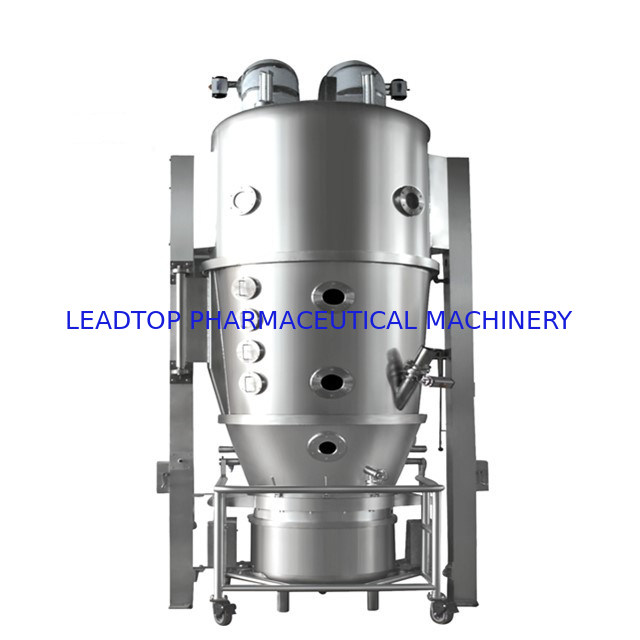

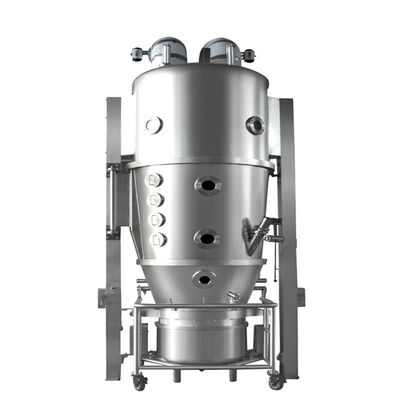

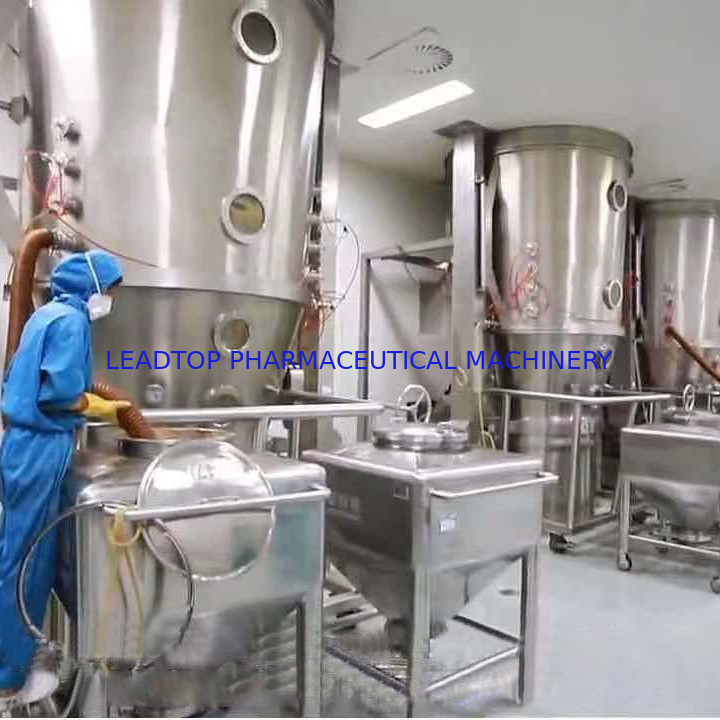

Our FL Series Fluid Bed Granulator is suitable for tablet, capsule, low sugar or sugar granule of Chinese medicine.
1. The flow ability is improved and the dust is reduced.
2. The operation is safe.
3. No need corner. Therefore the loading and unloading are quick, light and clean
4. It's safe for operator because the anti static filtering cloth is adapted.
5. It meets the requirements of GMP.
WORKING PRINCIPLE:
The intake air is processed from the inlet AHU through filters and heated, then lead into the lower bowl. The material is blow up evenly by hot air which passes through air distribution plate of product bowl, then forms continuous fluidized state and dried evenly by hot air.
In case of top spray for fluidized granulation, use top spray movable product bowl, the binder is top sprayed through spray guns in diffuse chamber into the product bowl, and spray onto the material surface atomized by compressed air. The product granules cohere each other by the binder and get the binder bridge to form the core granules, then grow up to form required wet granules, which the binder dried evenly by hot air and finally get dry granules.
In case of bottom spray for coating, use bottom spray movable product bowl, the binder changes to spray from bottom spray guns and atomized. The granules or pellet sprayed from bottom to top inside of fluidized chamber and coated by coating solutions, then fall back along the wall of bottom spray product bowl and dried by hot air, which back to bottom are sprayed again from fluidized chamber and repeat coating process.
Specifications
| Model | 200 |
| Volume (L) | 670 |
| Amount to be treated (kg/per time) | 100/300 |
| Power of fan (kw) | 30 |
| Consume of steam 0.4MPa(kg/h) | 282 |
| Consume of compressed air (m3/min) | 1.1 |
| Noise,dB (A) | (fan is installed separately) ≤75 |
| Main machine height (m) | 2.34×1.7×3.8 |
FEATURES
1. INLET AHU
The inlet AHU including three stage filters with G4, F8 and H13, dehumidifier with surface cooler, inlet air temperature controlled by cold and hot air mixing door, inlet air volume by inverter controlled which can set and adjust.
2. MAIN BODY STRUCTURE
The main body structure consists of lower bowl, top spray movable product bowl , bottom spray movable product bowl , diffuse chamber and filter chamber. The lower bowl, movable product bowl and diffuse chamber are silicon inflatable sealed with compress air inspection to assure the reliable sealing.
3. PRODUCT FILTER
The pulse anti-blow filter clean device adopt anti-static cloth filter (in case request, stainless steel anti-blow filter is available), which is silicon inflatable sealed with the filter chamber with compress air inspection to assure the reliable sealing. A dust sensor is mounted on the exhaust piping and interlocked with PLC control sys to secure the product safety during production.
4.EXHAUST AHU
The exhaust dust collection sys can be optionally designed upon request to protect environment.
5. 2 BAR & 10 BAR DUST EXPLOSION DESIGN
The 2 bar and 10 bar powder ex-proof design is selectable to ensure the operator, equipment and environment safety with reliable grounding device.
6.FLUIDZED GRANULATION
In case of fluidized granulation is requested, the binder solution tank and spray sys with peristaltic pump would be supplied. The binder sprays into product bowl through spray guns and spray onto the material surface atomized by compressed air. The product granules cohere each other by the binder and get the binder bridge to form the core granules, then grow up to form required wet granules, which the binder dried evenly by hot air and finally get dry granules.
7. BOTTOM SPRAY FOR COATING
In case of bottom spray for coating, use bottom spray movable product bowl, the binder changes to spray from bottom spray guns and atomized. The granules or pellet sprayed from bottom to top inside of fluidized chamber and coated by coating solutions, then fall back along the wall of bottom spray product bowl and dried by hot air, which back to bottom are sprayed again from fluidized chamber and repeat coating process. The height of fluidized chamber can be adjusted according to the quantity of material, and get the best fluid state. The bottom spray air distributing plate can be changed to different spray distance and flow based on material characteristics.
