Stainless Steel hydraulic Dry Granulator Machine With Capacity 20-100L

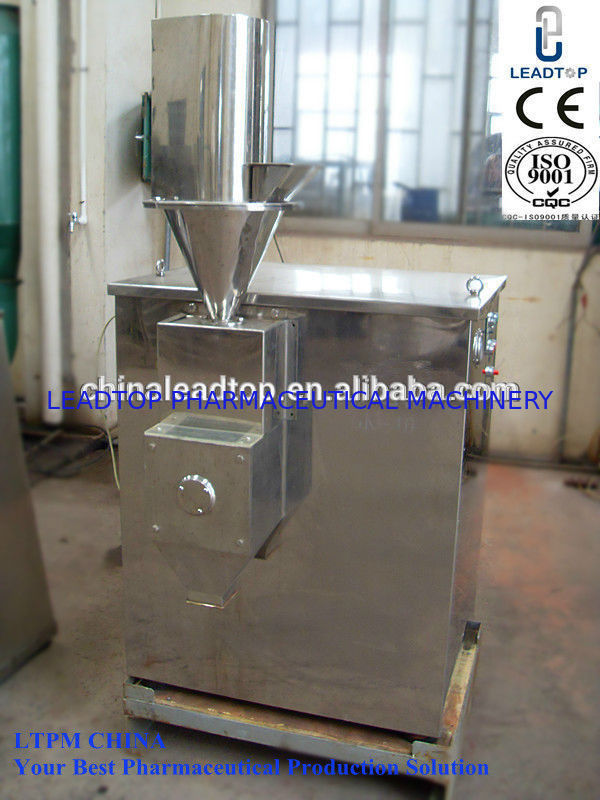

Stainless Steel hydraulic Dry Granulator Machine With Capacity 20-100L

wet granulation equipment

dry granulation equipment

Place of Origin:

China

Brand Name:

LTPM China

Certification:

CE, GMP

Model Number:

GF

Contact Us

Request A Quote
Product Details
Product Description



Simple Operation Dry Method Granulating Machine With Capacity 20-100L​





Quick Detail:





Motor of oil pump(kw): 1.1

Model: GF

Productive capacity: 20-100

Volume of hopper(L): 3-5

Size of roller(mm): 300(D)*80(W) / 200(D)*120(W)

Revolution of roller(r.p.m): adjustable

Material: Stainless Steel





Description:





1. Being adapted advanced electric hydraulic pressure, its operation is a simple and its automatic content     is high.

2. It is not necessary to use water or ethanol as humectants and to carry out the second heating and             drying. Its procedure is less and its working efficiency is high and its cost is cheap.

3. Being adapted seal operation, no pollution, the quality of finished product can meet the requirement of       health.

4. Particularly it is suitable for granulating of raw materials that can not be granulated through damp               method.





Applications:





The granule manufactured with this machine can be used for pressing tablet, drinking granule, filling capsule etc.

It is widely used for pharmaceutical industry, foodstuff industry and chemical industry to granulate. Particularly it is suitable for granulating of raw materials that can not be granulated through damp method.





Specifications:





Model GF-80 GF-120
Productive capacity 20-60kg 30-100kg
Volume of hopper 3L 5L
Size of roller φ200×80mm φ200×120mm
Max pre-pressure of roller 10T 15T
Revolution of roller Adjustable
Revolution of fed raw material Adjustable
Motor of driving roller 4KW 7.5KW
Motor of fed raw material 1.5KW 2.2KW
Motor of granulating 0.75KW 2.2KW
Motor of oil pump   1.1KW
Adjusting way of roller wheel and fed speed Electromagnetic speed control







Competitive Advantage:





1. we have seven technicians who gets passport ready to travel all over world to offer service to you.

2. We have 24hours hot line for Technical Support.

3. We get 18hours internet line for technical support.

4. Video camera in workshop to help you adjust and solve machine problem in working situation.

5. We have Technical Support in below Foreign Cities:

     California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi       (Agent), Dhaka (Agent), Laho
