Laminated Tube Toothpaste Filling Machine 40xpcs/Min Automatic Feeding

Laminated Tube Toothpaste Filling Machine 40xpcs/Min Automatic Feeding

Product Details:

Place of Origin: China
Brand Name: LTPM China
Certification: CE
Model Number: LTRG-Series

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Export Standard Wooden Case
Delivery Time: 25days
Payment Terms: L/C, T/T
Supply Ability: 15Set/Month
Get Best Price Contact Now

Detail Information

Automatic Grade: Automatic Voltage: 220/380V,customized
Usage: Toothpaste,facial Cleanser,foam,cream Filling Speed: 40-60 Pcs/min
Motor: 1.5kw Control System: PLC Control
Weight: 1000KG Tube Diameter: Dia.5mm-60mm
High Light:

Laminated Tube Toothpaste Filling Machine

,

Toothpaste Filling Machine 40xpcs/Min

,

Automatic Feeding Toothpaste Filling Machine

Product Description

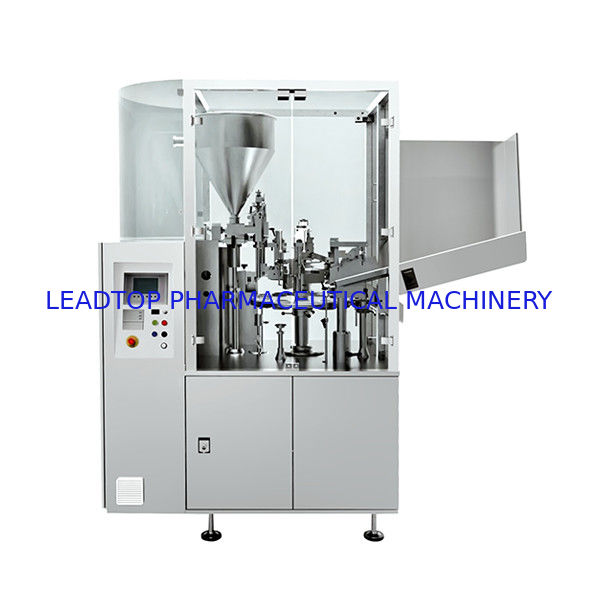

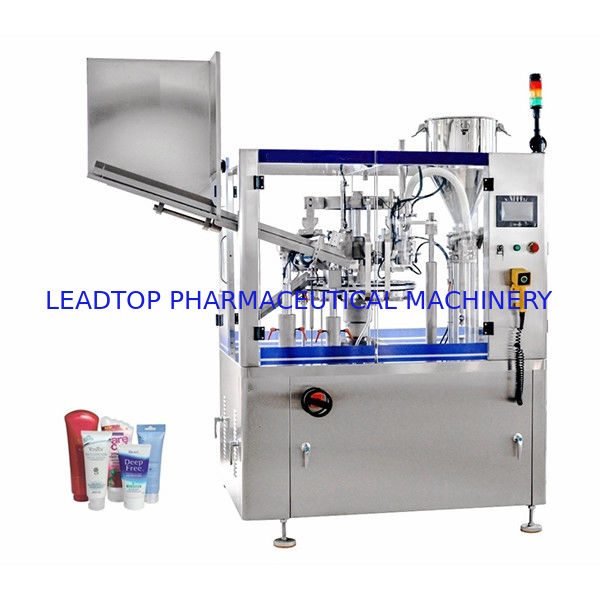

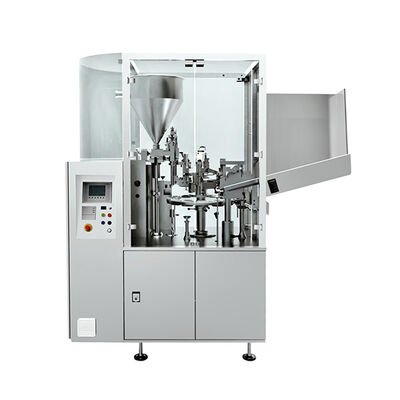

Laminated Tube Toothpaste Filling Machine 40xpcs/Min



This product is suitable for automatic color code aligning, filling, sealing, date printing and end cutting of various plastic tubes and aluminum composite tubes. It is widely applied in daily chemical industry, medicine, food, etc.



Feature

1. Automatic tube feeding,filling,heating,clamping and forming(codeprinting),tail cutting, no filling in case of no tube;
2. The parts contacting materials are all made of stainless steel 316,conforming to GMP requirements.
3. PLC+liquid crystal touch screen control and operation. Parameters canbe easily set on the touch screen.
The information of output and errors can be displayed clearly and visually with digitally displayed temperature
4. The electric and pneumatic components are all products ofinternationally famous brands.





Product Application

This machine is widely used for different hoses (with different diameters of Ф10-Ф52, like plastic pipes,aluminum-plastic composite pipes) sealing, and materials with different Viscosity and characteristics (from water-like to high-viscosity pastes) Filling, fully meets the requirements of different levels of GMP production.

Laminated Tube Toothpaste Filling Machine 40xpcs/Min Automatic Feeding 0



Specifictaion
Putting the tubes in the right position,filling the inert gas (optional ),filling ,sealing and labeling is full-automatically.Contorl botton is in extraposition,make it easy and precise to adjust(applicable to the production of different sizes and different types.).The filling would stop when without tubes.It will warn while the tubes are not in the right position and the working air pressure is low.The machine would stop once the protection door is opened .





Technical Parameter

Tube Material
Plastic tube, laminated tube
Tube Diameter
Φ5mm-Φ60mm
Tube Length
50-300mm (customizable)
Filling Volume
5-250ml/piece (Adjustable)
Filling Accuracy
≤±1%
Product Capacity (Pcs/min)
30-50 0.1m3/min
Air Supply
0.55-0.65Mpa
Motor Power
1.2kw (380V/220V 50Hz)
Heat Sealing Power
5kw





Laminated Tube Toothpaste Filling Machine 40xpcs/Min Automatic Feeding 1
