Automatic Tube Filling And Sealing Machine

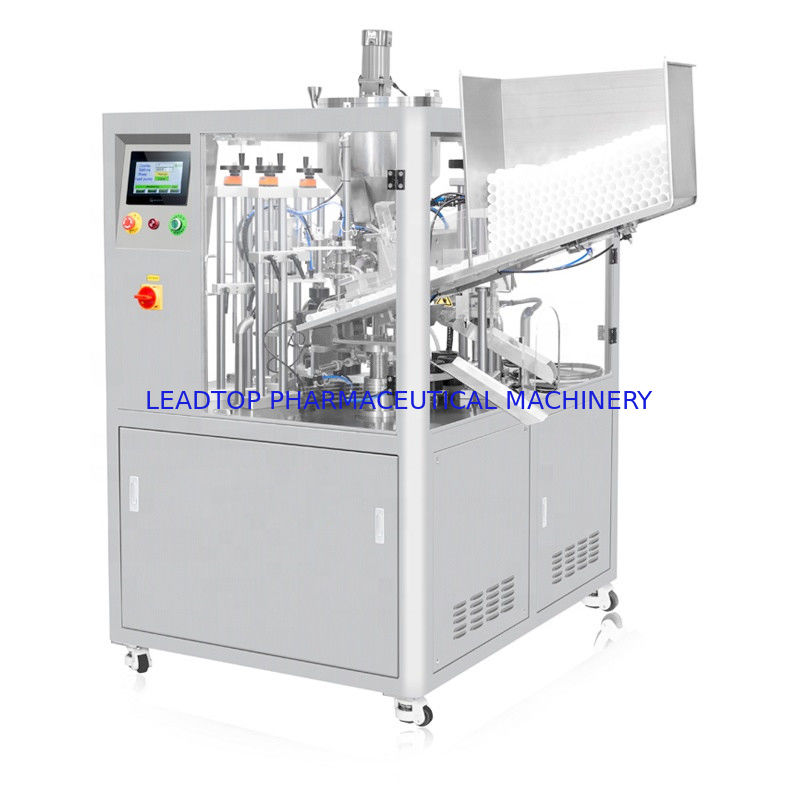

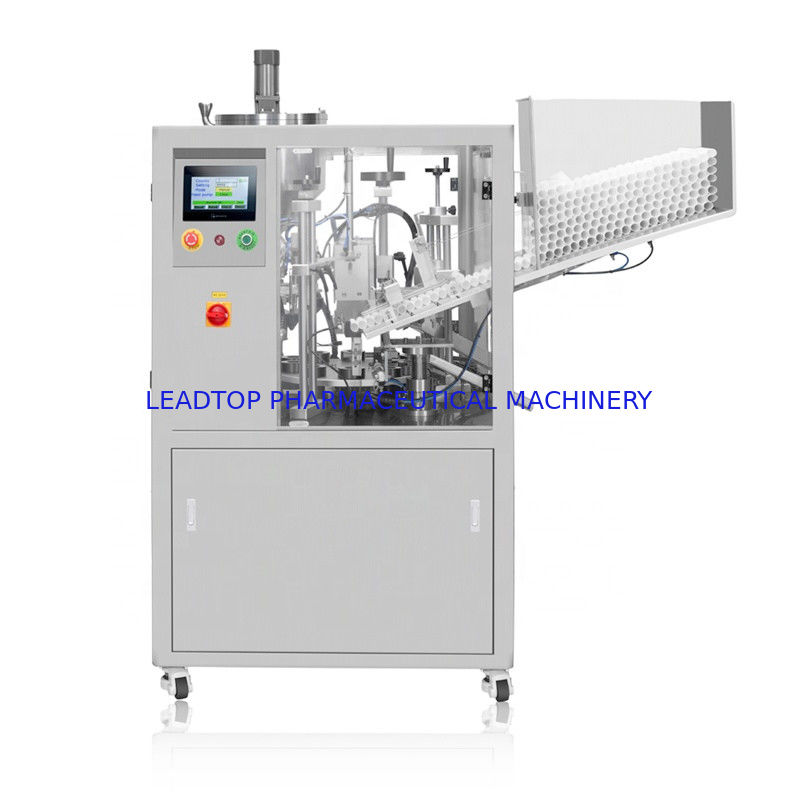

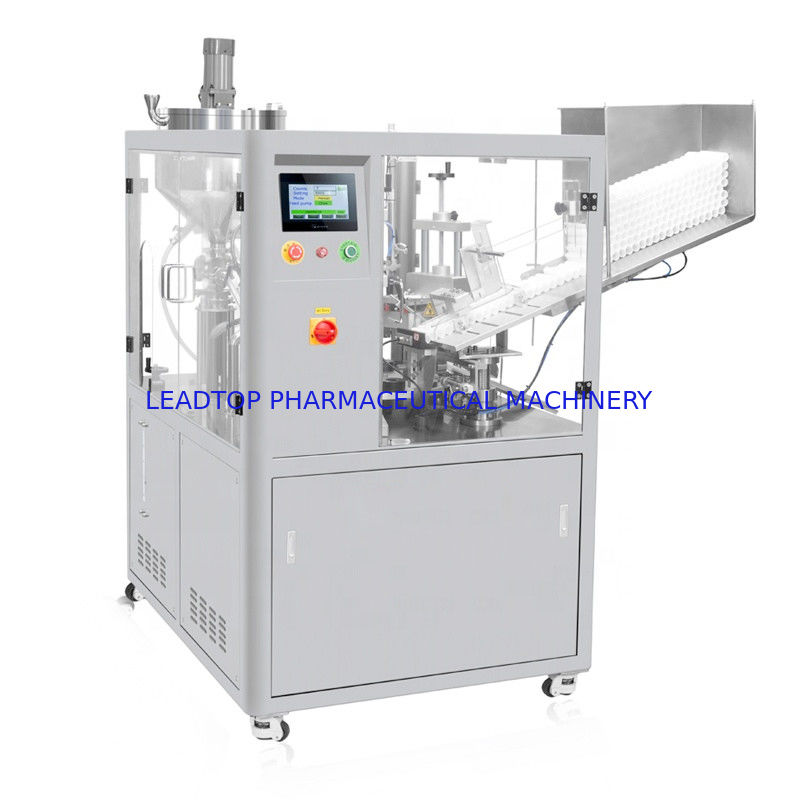

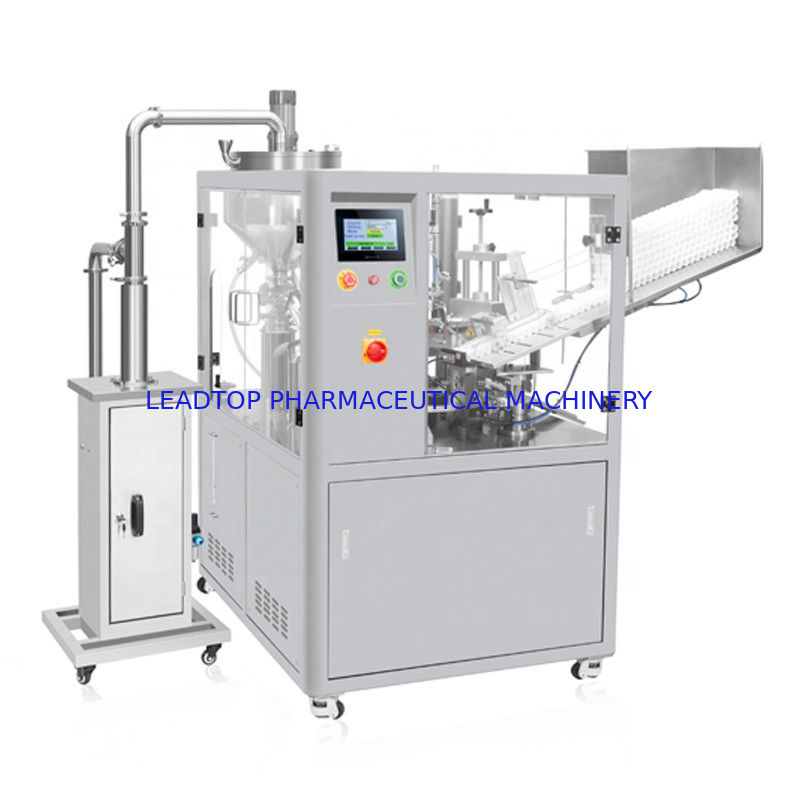

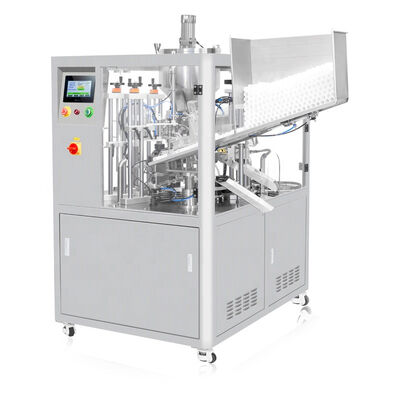

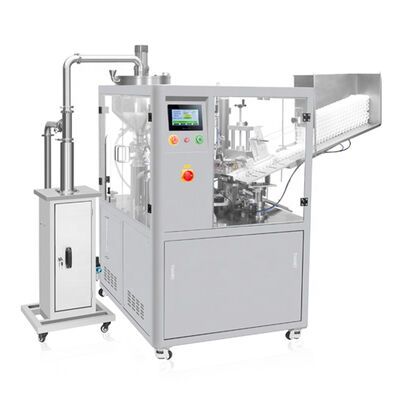

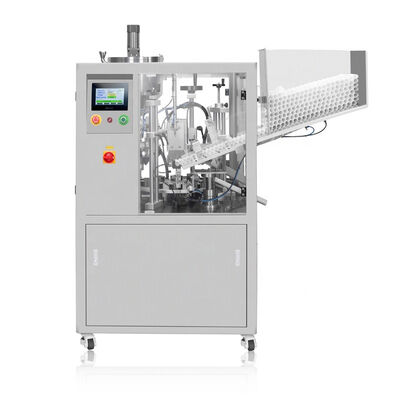

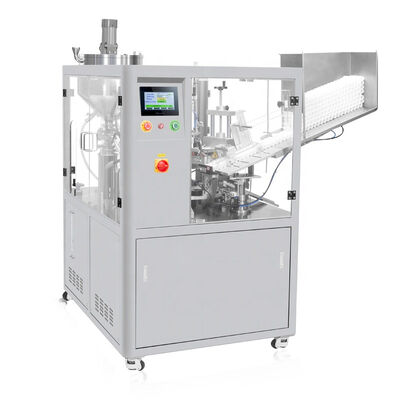

60pcs/Min Dia 5mm Soft Tube Filling Machine 1.5kw For Cosmetic Cream

Brand Name:	LTPM China
Model Number:	LTRG-Series
MOQ:	1set
Price:	Negotiation
Payment Terms:	L/C, T/T
Supply Ability:	15Set/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Automatic Grade:

Automatic

Voltage:

220/380V,customized

Usage:

Toothpaste,facial Cleanser,foam,cream

Filling Speed:

40-60 Pcs/min

Motor:

1.5kw

Control System:

PLC Control

Weight:

1000KG

Tube Diameter:

Dia.5mm-60mm

Packaging Details:

Export Standard Wooden Case

Supply Ability:

15Set/Month

Highlight:

60pcs/Min Soft Tube Filling Machine

Dia 5mm Soft Tube Filling Machine

Soft Tube Filling Machine 1.5kw

Product Description

Cosmetic Cream Soft Tube Filling Sealing Machine

Automatic Tube Filling & Sealing Machine are smoothness of operation, easy cleaning, easy size change over and simple maintenance procedures. These combined with wearing property and the highest safety guarantee make this an excellent machine.And suitable to filling multi-typed materials as well. For those materials uneasy to filling, for example, food in large tube, ointment in small tube, this machine can provide satisfied quality of filling and sealing.

Feature

Fully Automatic Tube Filling & Sealing
Metal, Plastic or Laminate Tubes
Hot Air Sealing Technology
Custom Profile Seal & Trim Available
Unit Dose Filling
Service and On-Line Support via Ethernet/Modem
Vertical Bottom Up Filling
Swirl Filling & Custom Fill Profiles
Optional Sanitary Fill Station
Clean Room Installations
Pharmaceuticals, Cosmetics, Sealants & Adhesives, Grease & Food Products

60pcs/Min Dia 5mm Soft Tube Filling Machine 1.5kw For Cosmetic Cream 0

Product Application

60pcs/Min Dia 5mm Soft Tube Filling Machine 1.5kw For Cosmetic Cream 1

Technical Parameter

Tube Material	Plastic tube, laminated tube
Tube Diameter	Φ5mm-Φ60mm
Tube Length	50-300mm (customizable)
Filling Volume	5-250ml/piece (Adjustable)
Filling Accuracy	≤±1%
Product Capacity (Pcs/min)	30-50 0.1m3/min
Air Supply	0.55-0.65Mpa
Motor Power	1.2kw (380V/220V 50Hz)
Heat Sealing Power	5kw

Machine details

60pcs/Min Dia 5mm Soft Tube Filling Machine 1.5kw For Cosmetic Cream 2

Panasonic Color Mark Sensor

60pcs/Min Dia 5mm Soft Tube Filling Machine 1.5kw For Cosmetic Cream 3

Rigid oxidation Mould

60pcs/Min Dia 5mm Soft Tube Filling Machine 1.5kw For Cosmetic Cream 4

40L SS Material Hopper Anti-Dripping Filling Head
