SS Automatic Filling Toothpaste Tube Machine For Cosmetics

SS Automatic Filling Toothpaste Tube Machine For Cosmetics

Automatic Filling Toothpaste Tube Machine

SS Toothpaste Tube Machine

Cosmetics Toothpaste Tube Machine

Place of Origin:

China

Brand Name:

LTPM China

Certification:

CE

Model Number:

LTRG-Series

Contact Us

Request A Quote
Product Details
Automatic Grade:
Automatic
Voltage:
220/380V,customized
Usage:
Toothpaste,facial Cleanser,foam,cream
Filling Speed:
40-60 Pcs/min
Motor:
1.5kw
Control System:
PLC Control
Weight:
1000KG
Tube Diameter:
Dia.5mm-60mm
Product Description

SS Automatic Filling Toothpaste Tube Machine For Cosmetics





This machine is a high-tech product which successfully developed and designed by adopting advanced technology from abroad and strictly meet GMP requirement. PLC controller and color touch screen are applied and made it possible for programmable control of the machine.
This model machine adopts 12station design. Suitable for all kinds of folding Packing for metal tube. can easily realize the plastic tube and the metal tube
Packing by replacing the moulds and parts. It is an ideal equipment for ALU tube, plastic tube and multiple tube filling and sealing in cosmetic, pharmacy,foodstuff, adhesives etc industries, and it complies with the standard of GMP.

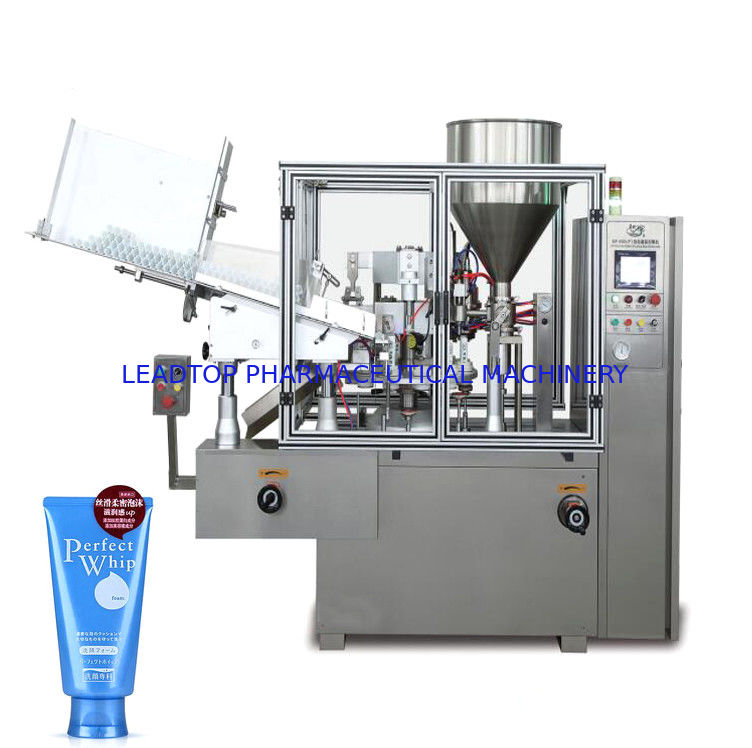

SS Automatic Filling Toothpaste Tube Machine For Cosmetics 0

Feature

1. High grade operation screen with LCD display and PLC control, easy operation and more humanization By stepless speed adjust, parameter set, output count, pressure index and failure display.

2. Automatically executing tube supply,photocell register, inert gas filling (optiona1), material filling and sealing, batch number printing, final products output.

3. High prevision photocell register, that reduces the chromatic aberration scope.

4. Adjustment parts external in position, position digital display, convenient and accurate adjust (suitable for variable products producing).

5. Mechanical, photoecectrical, electric, pneumatic integrative controlling, reaches no tube no filing function: warning if tube error positioned or pressure too 10w, it will automatic stop while open the protective door.

Product Application
Suitable for cosmetic ,cream ,skin creams , wasabi ,tomato sauce, peanut butter, honey, oil, juice, beverage, detergent, fertilizer, pesticides, ointments, adhesives, hair dyes, shoe polish, toothpaste and other liquid or paste filling and sealing materials.

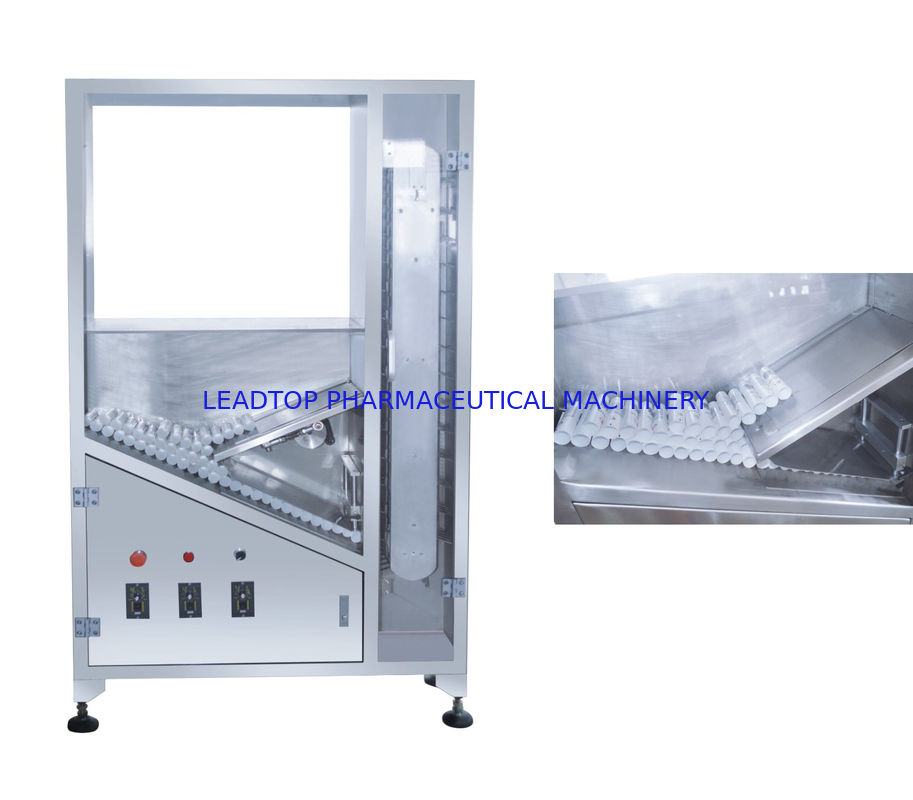

SS Automatic Filling Toothpaste Tube Machine For Cosmetics 1

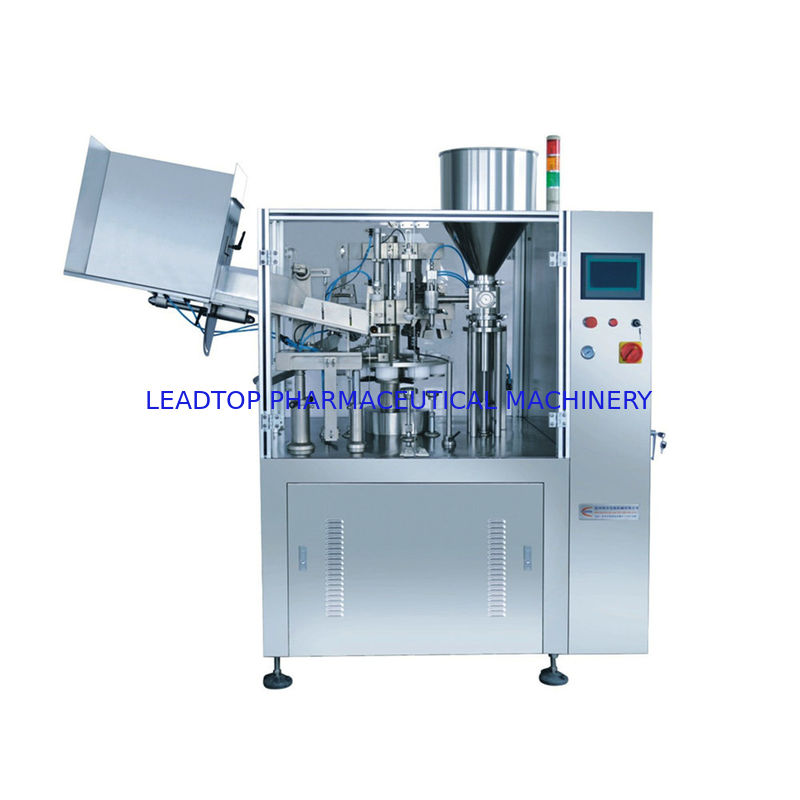

SS Automatic Filling Toothpaste Tube Machine For Cosmetics 2





Technical Parameter

Tube Material
Plastic tube, laminated tube
Tube Diameter
Φ5mm-Φ60mm
Tube Length
50-300mm (customizable)
Filling Volume
5-250ml/piece (Adjustable)
Filling Accuracy
≤±1%
Product Capacity (Pcs/min)
30-50 0.1m3/min
Air Supply
0.55-0.65Mpa
Motor Power
1.2kw (380V/220V 50Hz)
Heat Sealing Power
5kw



Machine details

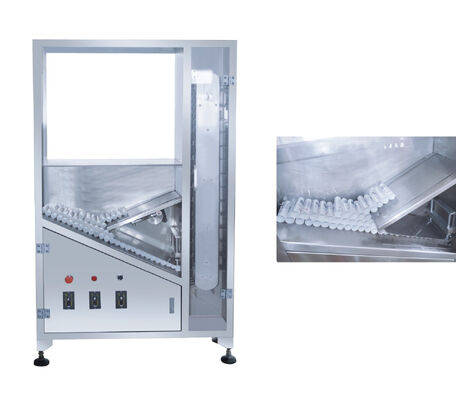

SS Automatic Filling Toothpaste Tube Machine For Cosmetics 3

High grade liquid crystal display programming controller and button combination operation screen, a comprehensive grasp of stepless speed, parameters of the equipment and production count statistics, pneumatic equipment instructions, fault display operation status, the operation is simple and user-friendly.



SS Automatic Filling Toothpaste Tube Machine For Cosmetics 4

Feed tube ,photocel,inert body temperature (optional), filling, sealing, printing, finished the whole products automatic.



High accuracy photocel system , to reduce the mistake sealing of tube body color .



SS Automatic Filling Toothpaste Tube Machine For Cosmetics 5

adjusting the position of the external, digital display, adjust fast and accurate (applicable to multi specification, multi variety production).



machine, light, electricity, gas integration, no tube no filling, for the pipe is not in place, low pressure, automatic display(alarm); open the protective door can automatically shut down, such as automatic functions.



SS Automatic Filling Toothpaste Tube Machine For Cosmetics 6

Having nine stations, full function, convenient for variety, metal pipe, plastic pipe, composite pipe mould can be

interchangeable, suitable for any folding metal tube.
