Place of Origin:
China
Brand Name:
LTPM China
Certification:
CE, GMP, SGS, BV
Model Number:
LTEC-Series
Contact Us

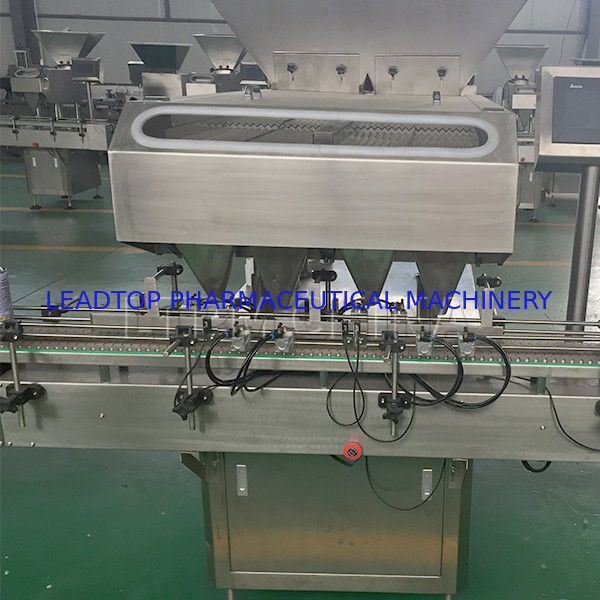

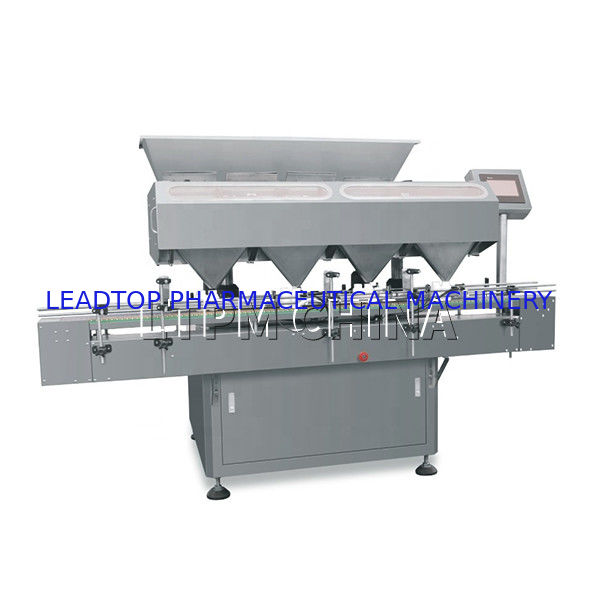

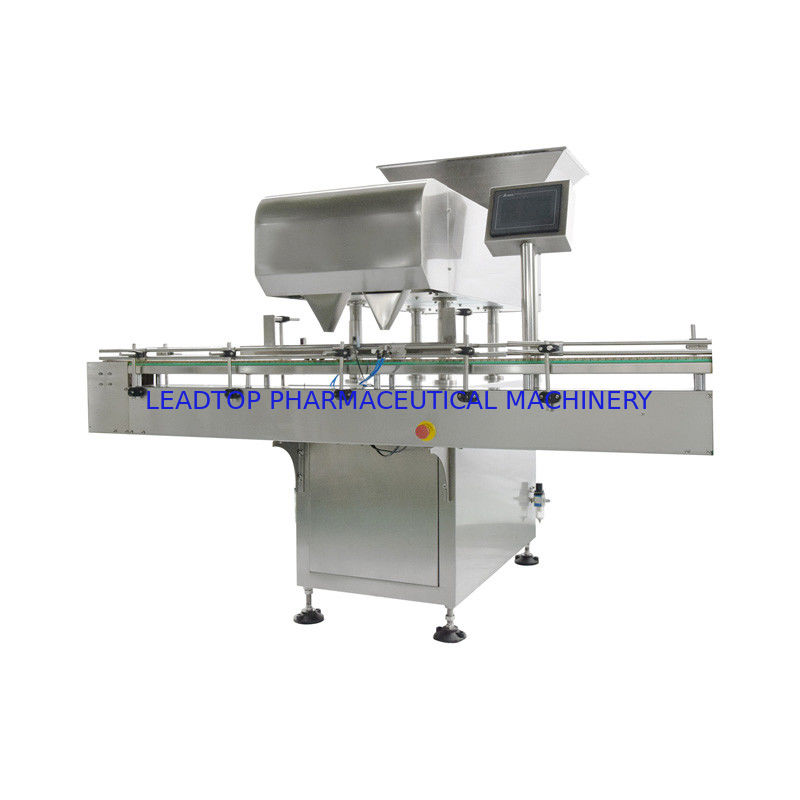

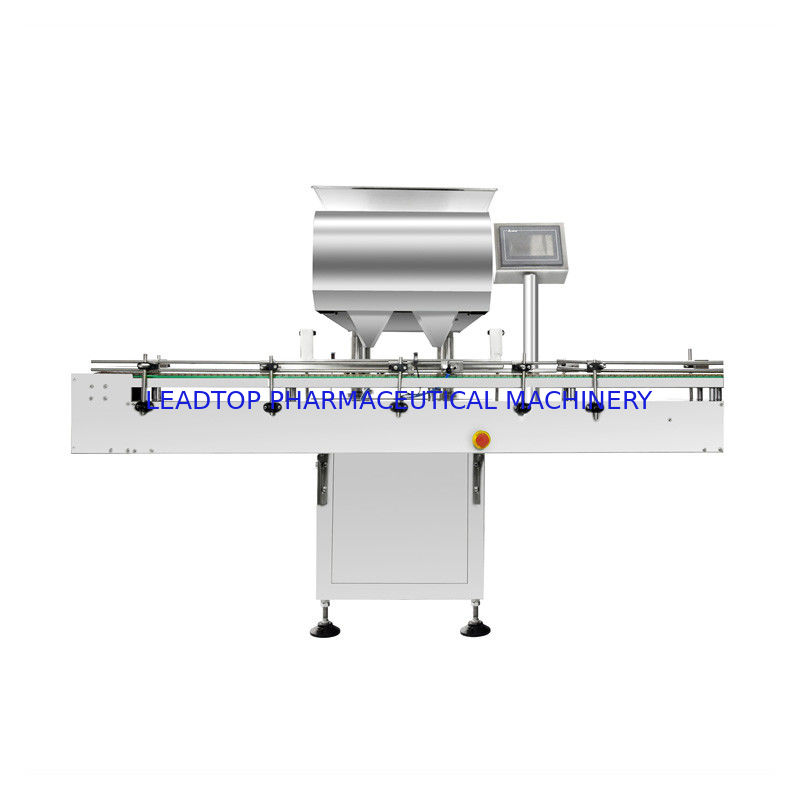

Professional Manufacturer Wholesale Electronic Tablet Capsule Counting Machine

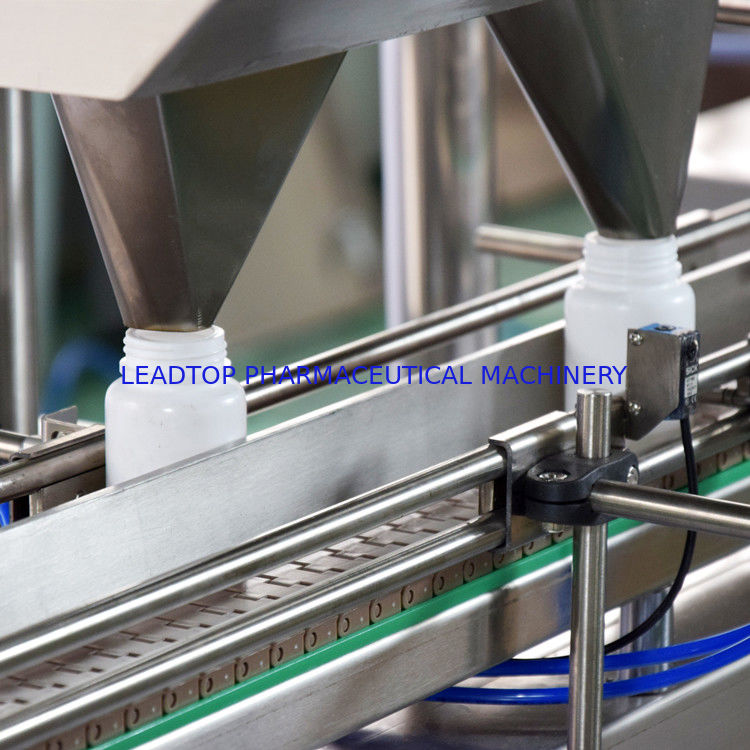

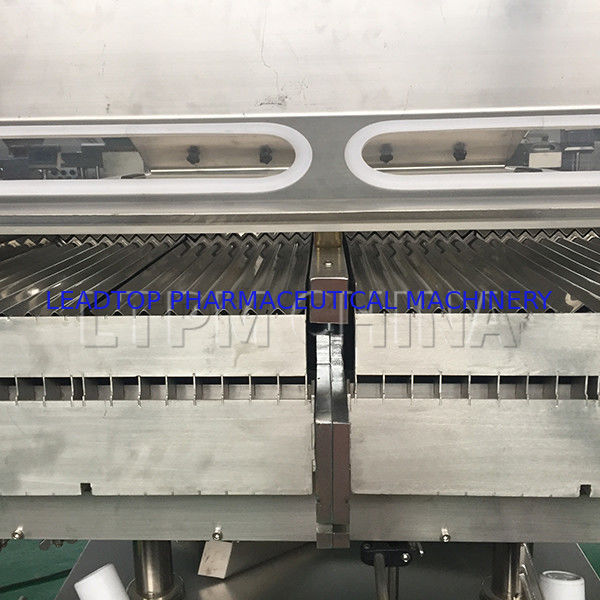

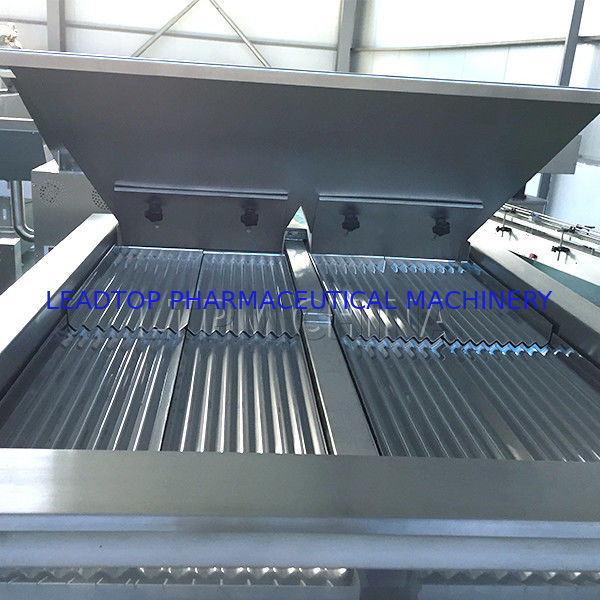

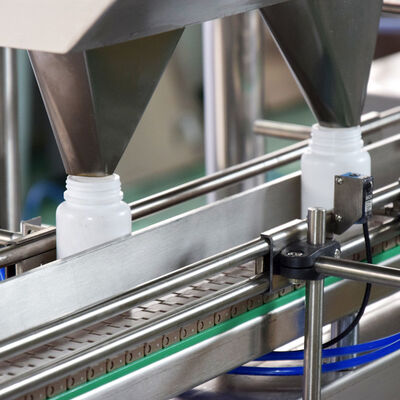

The multi-channel counter can count and package solid particles such as pills, tablets, capsules (transparent or opaque hard capsules, soft capsules). It is suitable for tablets, capsules, pills of 3mm to 20mm size. This machine is widely used in scientific research institutions, hospitals, pharmaceutical plants, laboratories, and health care products factories, in line with GMP requirements.The bottle stopper device on the bottle feeding rail of the conveying bottle mechanism will block the bottle conveyed from the upper device and stop at the bottling position, waiting for filling. The medicine enters the medicine chamber through the vibration of the feeding corrugated board, and the counting photoelectric sensor is installed on the medicine chamber. The medicine falling into the medicine chamber is quantitatively counted by the photoelectric counting sensor and then loaded into the bottle in the bottling position.
Features:
1- Good compatibility. It can count the tablet (including special-shaped tablets), capsule, soft capsule (transparent, opaque), pill, and other solid preparations or solid particles.
2- It adopts the anti-dust photoelectric sensor technology, which can work stably in the case of high dust.
3- It has a special structure of the leaking nozzle, which can prevent material jams, and the bottle with a small mouth can also quickly filling.
4- The materials feeding is even and stable to protect materials from harm, and ensure the bottling is accurate.
5- It has many detection and alarm control functions such as no bottle and no count, fault self-test, and so on.
6- It has a photoelectric sensor automatic inspection function. It will automatically stop when there is no bottle.
Main Technical Data
| Model | LTEC-12 | LTEC-16 | LTEC-24 | LTEC-32 |
| Slide wheel | 12 Channels | 16 Channels | 24 Channels | 32 Channels |
| Size of Object | Tablet: φ5-12mm Capsule: 00#-5# all kinds of soft capsule | |||
| Size of bottles | 20-300ml | |||
| The diameter for bottles mouth | 20-80mm | |||
| Output | 4,000pcs/min | 6,000pcs/min | 8,000pcs/min | 10,000pcs/min |
| Capacity | 40bottles/min | 60bottles/min | 80bottle/min | 100bottles/min |
| Power | 0.9KW | 0.9KW | 1.35KW | 1.35KW |
| Power supply | 220V 60HZ | |||
| Air pressure | 6kgs/c | |||
| Overall dimensions(mm) | 1700×1700×1900 | 2000×1700×1900 | 2800×1700×1900 | 3200×1700×1900 |
Application
(1) Strong compatibility, high accuracy, wide application range, can count and bottle tablets (including shaped tablets),
capsules, soft capsules (transparent, opaque) pills
(2) It has strong applicability and adopts the company's original anti-high dust photoelectric sensor technology, which can work
stably under the condition of high dust.
(3) Vibratory feeding, unique patent flap dispensing mechanism does not damage drugs
(4) High degree of intelligence, with multiple detection and alarm control functions such as no bottle count, fault self-test
