12 Channels Vibrating Pharmacy Counting Machine 200000pcs/H Dustproof

12 Channels Vibrating Pharmacy Counting Machine 200000pcs/H Dustproof

200000pcs/H Pharmacy Counting Machine

12 Channels Pharmacy Counting Machine

Dustproof Pharmacy Counting Machine

Place of Origin:

China

Brand Name:

LTPM China

Certification:

CE, GMP, SGS, BV

Model Number:

LTEC-Series

Contact Us

Request A Quote
Product Details
Usage:
Capsule,tablets,gums,rubber,etc.
Power:
220v 50hz Single Phase
Transmission:
Electronic
Capacity:
200000pcs/h
Brand:
LeadTop
Line Length:
Optional
Product Description

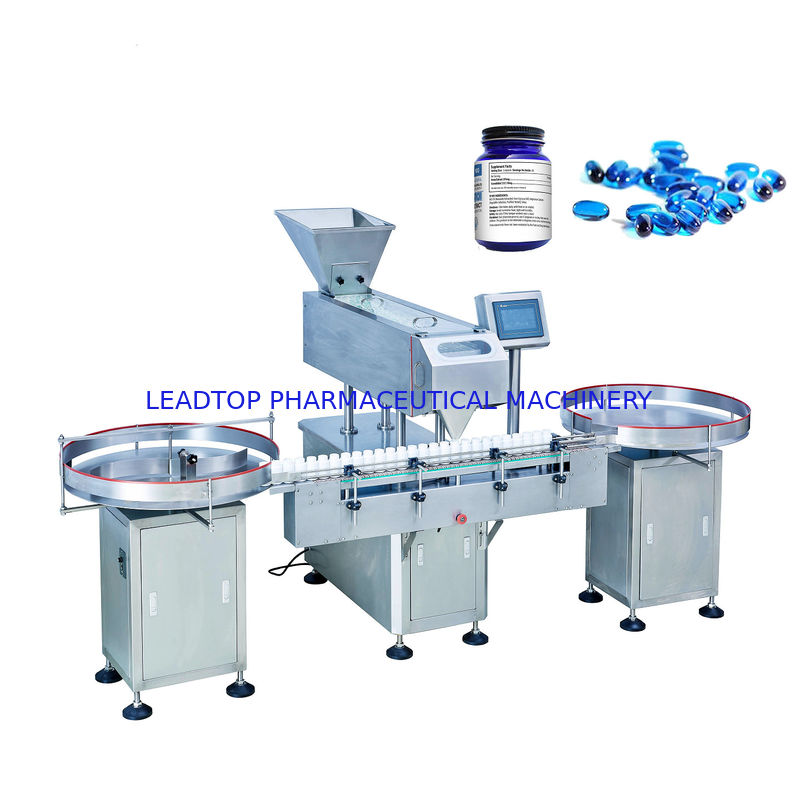

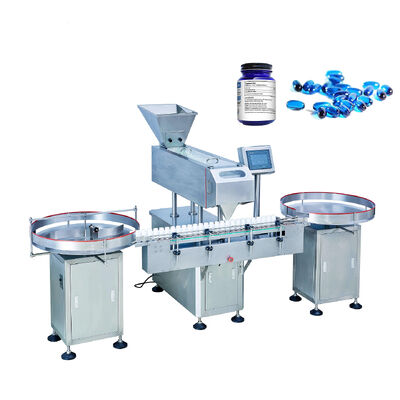

Automatic Capsule Tablet Electronic Vibrating Counting Machine For Pharmacy Counting And Bottle Filling Machine



This model is the third generation innovative product of our company. It can pack all kinds of tablets and capsules (transparent or opaque hard capsules, soft capsules, pills, etc.) in the range of 3-12 mm.Meet the requirements of GMP, suitable for scientific research institutions, hospitals, small and medium-sized pharmaceutical factories, health products factory production packaging



Features:

1. Strong compatibility,It can count and bottle various kind of solid preparation or sol solid granules for example,tablet(including heteromorphism tablet),capsule,soft c apsule( transparent and non- transparent),pill etc.
2. Vibration cutting: 32 channel vibration under homogeneous materials, unique patent agencies blanking , turning out material is steady, not damage
3. Anti high dust :Adopting the anti high dust photoelectric sensing technology only developed by our company ,it also can work stably under the high dust circumstance.
4. Correct counting :With automatic photoelectric sensor counting ,the error of bottling is less than nation standard.
5. Special structure of the discharge spout, can prevent blocking drugs,small bottle can fast botting (optional)
6. High intelligence :lt has various alarm and control functions like no bottle no count, check faultautomatically and so on.
7. Auxiliary function :Photoelectric sensor can check automatically if there's no bottle and stops automatically.
8. Easy operation :Adopting intellectualized design, all kinds of operation data can be set according to the requirement.lt can store 10 groups of setting parameters for use.
9. Convenient maintenance :After simple training, the worker can operate easil .t is easy to disassembly, clean and change the components without any tools.
10. Sealing and dustproof :Dust collection box is available, it can reduce the dust pollution.(Optional)



Working Principle
The block bottle device on the passing bottle-track of the conveying bottle system make the bottles which came from the previous equipment stay in the bottling position,waiting to be filled in.The medicine goes into the medicine container in order by the vibration of the feeding corrugated plate.There''s a counting photoelectric sensor installed on the medicine container,after counting of the medicine in the medicine container by the counting photoelectric sensor, the medicine goes into the bottle in the bottling position.



Main Technical Data

Model LTEC-12 LTEC-16 LTEC-24 LTEC-32
Slide wheel 12 Channels 16 Channels 24 Channels 32 Channels
Size of Object Tablet: φ5-12mm Capsule: 00#-5# all kinds of soft capsule
Size of bottles 20-300ml
The diameter for bottles mouth 20-80mm
Output 4,000pcs/min 6,000pcs/min 8,000pcs/min 10,000pcs/min
Capacity 40bottles/min 60bottles/min 80bottle/min 100bottles/min
Power 0.9KW 0.9KW 1.35KW 1.35KW
Power supply 220V 60HZ
Air pressure 6kgs/c
Overall dimensions(mm) 1700×1700×1900 2000×1700×1900 2800×1700×1900 3200×1700×1900



12 Channels Vibrating Pharmacy Counting Machine 200000pcs/H Dustproof 0



Application

12 Channels Vibrating Pharmacy Counting Machine 200000pcs/H Dustproof 1



Machine Details

12 Channels Vibrating Pharmacy Counting Machine 200000pcs/H Dustproof 2

12 Channels Vibrating Pharmacy Counting Machine 200000pcs/H Dustproof 3

12 Channels Vibrating Pharmacy Counting Machine 200000pcs/H Dustproof 4

12 Channels Vibrating Pharmacy Counting Machine 200000pcs/H Dustproof 5

12 Channels Vibrating Pharmacy Counting Machine 200000pcs/H Dustproof 6

12 Channels Vibrating Pharmacy Counting Machine 200000pcs/H Dustproof 7

12 Channels Vibrating Pharmacy Counting Machine 200000pcs/H Dustproof 8
