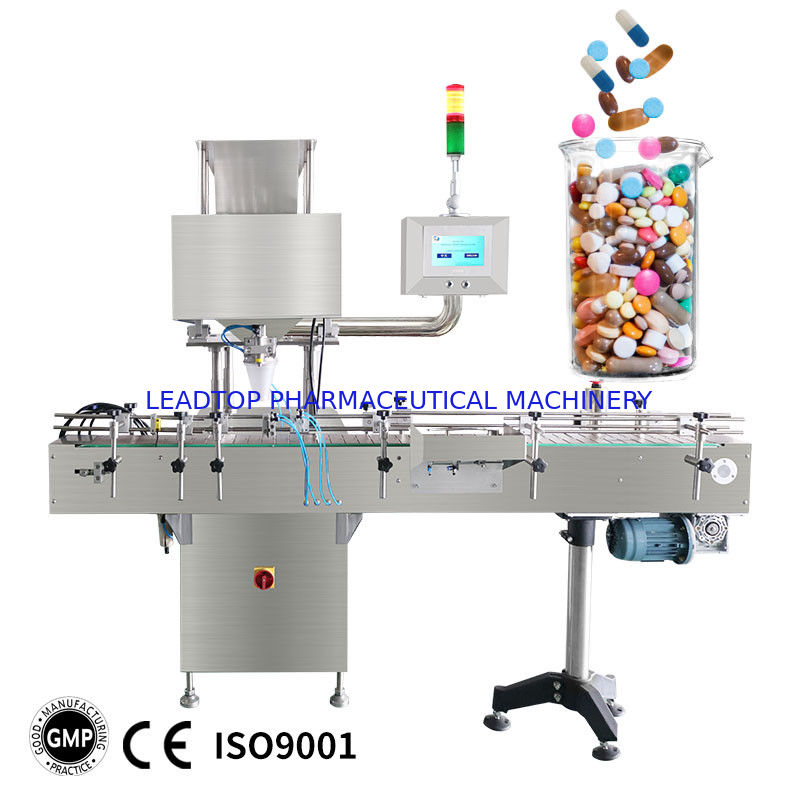

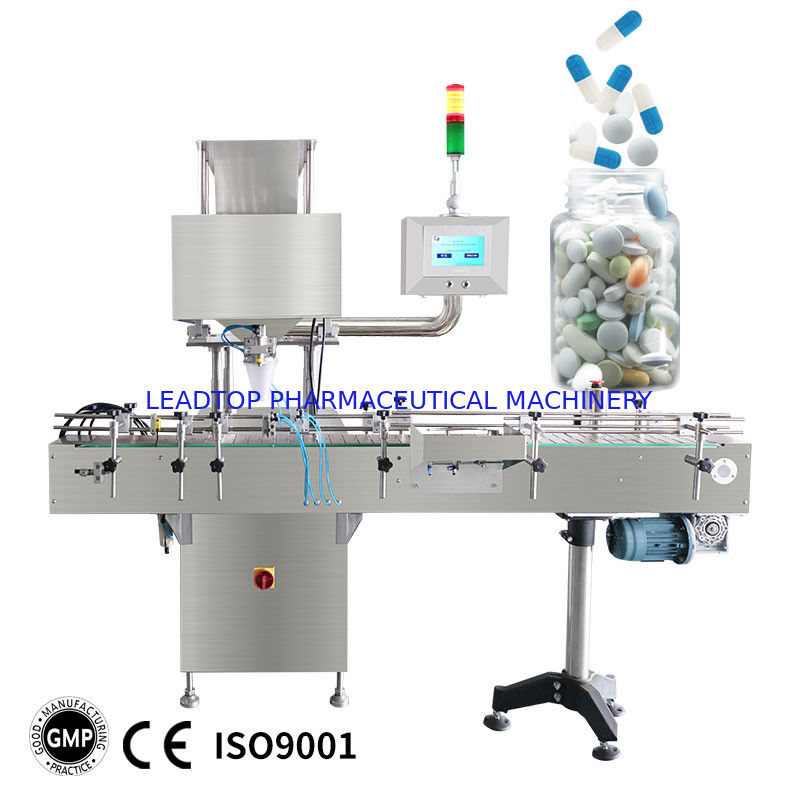

Accuracy 99.97% Tablet Counting Machine Counter For Pharmacy
Electronic Counting Machine is mainly suitable for medicine, industry, chemical industry, food and other industries. It can be widely used for counting and bottling solid preparations, such as pills, sugar-coated tablets, plain tablets, soft and hard capsules and other shapes of medicine granules. This machine can be used independently, and can also form a linked production line with other supporting equipment such as bottle unscrambler, paper stopper, capping machine, sealing and labeling machine.
Features:
1)The number of pellet counted can be arbitrarily set up among 0-9999.Stainless steel material for whole machine body an meet with GMP specification.
2)Easy to operate and no special training required.
3)Precision pellet count with special electrical eye protection device.
4)Rotary counting design with fast and smooth operation.
5)The rotary pellet counting speed can be adjusted with stepless according to the bottle putting speed manually.
6)The interior of the machine is equipped with dust cleaner to avoid the dust effect on the machine.
7)Vibration feeding design , the vibration frequency of the particle hopper can be adjusted with stepless based on the needs of the medical pellet out put.
8) Filling precision: 98%
Main Technical Data
| Model | LTEC-12 | LTEC-16 | LTEC-24 | LTEC-32 |
| Slide wheel | 12 Channels | 16 Channels | 24 Channels | 32 Channels |
| Size of Object | Tablet: φ5-12mm Capsule: 00#-5# all kinds of soft capsule | |||
| Size of bottles | 20-300ml | |||
| The diameter for bottles mouth | 20-80mm | |||
| Output | 4,000pcs/min | 6,000pcs/min | 8,000pcs/min | 10,000pcs/min |
| Capacity | 40bottles/min | 60bottles/min | 80bottle/min | 100bottles/min |
| Power | 0.9KW | 0.9KW | 1.35KW | 1.35KW |
| Power supply | 220V 60HZ | |||
| Air pressure | 6kgs/c | |||
| Overall dimensions(mm) | 1700×1700×1900 | 2000×1700×1900 | 2800×1700×1900 | 3200×1700×1900 |
