120pcs/Min Sachet Packing Machine 260mm Film Pillow Packaging Machine

120pcs/Min Sachet Packing Machine 260mm Film Pillow Packaging Machine

120pcs/Min Sachet Packing Machine

260mm Film Pillow Packaging Machine

PLC Pillow Packaging Machine

Place of Origin:

Zhejiang Province,China

Brand Name:

LTPM CHINA

Certification:

CE, GMP, SGS, BV

Model Number:

DXD-Series

Contact Us

Request A Quote
Product Details
Machine:
Pillow Packaging Machine
Max.Film Width:
260mm
Max Capacity Of Packing:
20-120 Pcs/ Min
Film Thickness:
Film Thickness
Bag Length:
60-300 ( Do Not Exceed This Size )
Packing Width:
25-150mm
Product Description

Automatic Vertical Small Bag Liquid Pouch Honey Stick Sachet Filling Packing Machine Milk Jam Soup Water Oil Packaging



Application

This machine is suitable for automatic packaging of liquid of foods,medicine and chemicals,

such as pesticide,shampoo,body foam bath lotion,facial cream,ingredient oil,fruit sauce,

tomato ketchup and honey etc.





Machine features

1. This machine can finish : forming bag--measuring--material filling—sealing—counting—date code printing, all the work automatically;

2. Photoelectric and tracing system or computer system can be provided without your specific requirements.

3. The PLC controller has the advantages such as setting the length of the bag; the out put alarm and the speed and quantity with buttons;

4. This machine can be installed to code printer for 1-3 lines characters such as production and expiry date according to your special request.







Technical Parameters

Items / Model
DXD-350K
DXD-500K
DXD-900K
Pouch length
50-250mm(L) (adjustable)
50~160mm
50~120mm( Pouch length can change)
Pouch width
50-85mm(W)
50~105mm
50~105mm
Packing speed
30-50times/min depend on pouch size and material
20~50times/nim(depend on pouch size and material)
80times/nim(depend on pouch size & material)
Measuring range
1-50ml
1~80ml
1~80ml
Applicable film
PET/AL/PE PET/PE NY/AL/PE NY/PE
PET/AL/PE PET/PE NY/AL/PE NY/PE
PET/AL/PE PET/PE NY/AL/PE NY/PE
Max width of film roll
350mm
500mm
900mm
Max film roll diameter
300mm
420mm
Φ300mm
Film roll core diameter
75mm
75mm
Φ75mm
Power voltage
220V/ 50HZ(do as customer’s request)
380V50Hz 3P 4W
380V 50Hz (do as customer's request)
Power
5.5kw
12 Kw
12 Kw
Gross Weight
650kg
1200kg
1200kg
Package size
(L)1400mm×(W)1000mm×(H)1700mm
1680x1280x2050mm
1500x1540x2200mm(L x W x H)



Working process

1. Turn on the machine waiting the temperature to setting numerical vaule, and set the parameter on the touch screen.


2. Put the material to the hopper.



3. Set the Packaging film to packing machine and test the packing machine working.


4. Automatic auger measuring material and auto bagging

5. Bag former auto bag making, the bag automatic sealing.

6. After bag sealing,finished product will auto cutting by cutting device, finished product put out.

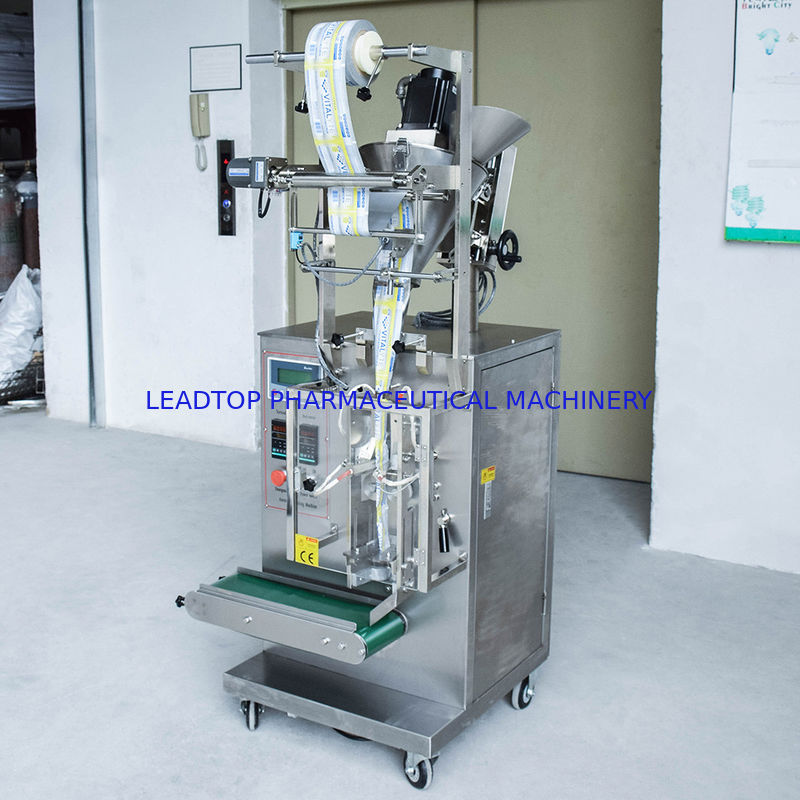

120pcs/Min Sachet Packing Machine 260mm Film Pillow Packaging Machine 0

120pcs/Min Sachet Packing Machine 260mm Film Pillow Packaging Machine 1

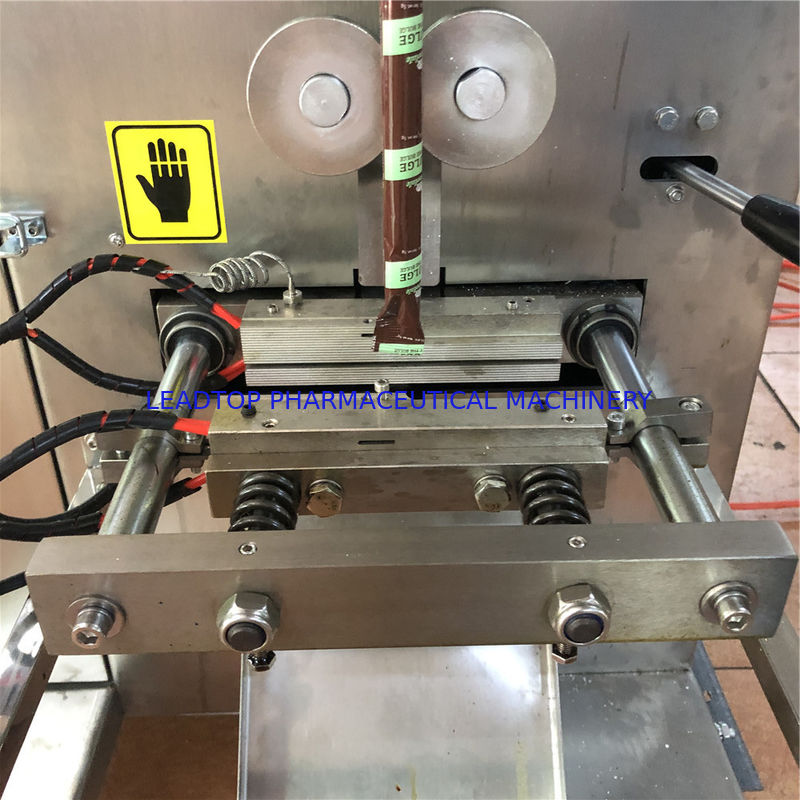

About Machine's Detail

120pcs/Min Sachet Packing Machine 260mm Film Pillow Packaging Machine 2

120pcs/Min Sachet Packing Machine 260mm Film Pillow Packaging Machine 3
