Paintball Gelatin Capsule Encapsulation Machine Rotary Molding

Paintball Gelatin Capsule Encapsulation Machine Rotary Molding

Gelatin Capsule Encapsulation Machine

Paintball Capsule Encapsulation Machine

Rotary Molding Capsule Encapsulation Machine

Place of Origin:

China

Brand Name:

LTPM China

Certification:

CE, GMP

Model Number:

LTRJ-110

Contact Us

Request A Quote
Product Details
Rotary Speed Of Die Roll:
0-7rpm
Difference Among Filling Volume:
±2%
Power For Whole Machine:
2.3KW
Pillar Quantity:
8
Main Body Sizes:
1680×1100×1820 Mm
Weight Of Whole Machine:
600Kg
Application:
Capsule,softgel Manufacturing
Type:
Softgel Encapsulation
Product Description

LTRJ-Series Cod Liver Oil Soft Gel Gelatin Capsule Encapsulation Paintball Pharmaceutical Filling Packing Machine



LTRJ-Series rotary molding soft capsule encapsulating machine, a newly machine developed based on the production performance of RJR-Series equipment to satisfy customers’ demands, is meticulously and elaborately manufactured by utilizing advance design technology and superior data in strict accordance with the GMP requirements. 380V power supply applied by the machine enables it mainly to be used for large-scale manufacturing needs.



Product Characteristics
1. Employ horizontally glue pumping mode and components of each systems can be independently controlled, which creates great convenience for adjustment.
2. Take pneumatic pressurizing as the rotary molding pressing way, visible figures, easy, fast and able to lengthen die life.
3. Controllable oil capacity for glue film lubrication realizes minimal quantities of lubricant; with cleaning free of ethyl alcohol or petroleum ether, avoid danger during washing and reduce production costs.
4. Accurate adjustment on gum thickness, independent control of distribution.
5. The parts joining contents, gelatin liquid and gelatin film should have bright and clean surface for the convenience of cleanness and disinfection.
6. The horizontal principal axes on the head of soft capsule machine has no more than ±0.03mm of jumping degree and there is no clamping stagnation for the pressurization and relocation of soft capsule machine head’s left principal axis. In case of the pressurizing contents belong to oils, within 1-4 R/min rotation speed of principal axis, the head die of soft capsule machine can manufacture soft capsules with complete appearances and neatly cut pills. The joints of soft capsules are beautiful and firm without leakage; if the compressed contents are Chinese medicine suspension liquid, within 1-3.5 R/min rotation speed of principal axis, the head die of soft capsule machine can manufacture soft capsules with complete appearances and neatly cut pills. The joints of soft capsules are beautiful and firm without leakage.
7. When the soft capsule machine pressing pills, the pill dropping machine can neatly and fast drop pills. The rubber brush on the bottom of dies can clean up gelatin pills without causing damage to dies.
8. During the compressing and production process of soft capsules, the gelatin box of soft capsule machine can adjust the gelatin tape’s thickness by the front and back hand wheels of gelatin box. In case of any inconsistency between the thicknesses of gelatin tape on left and right, it can adjust the front and back hand wheels of the horizontal gelatin box to make the thickness uniform. During the compressing and production process of soft capsules, the gelatin liquid inside the gelatin box of soft capsule machine can automatically supply glue by cover valve and glue liquid level sensor. When the liquid level declining, the sensor will send signals to control and open the cover valve to supply glue; when the glue liquid reaches the required level, the sensor will send signals to close the cover valve to stop supplying glue.
9. The left and right capsule shell rollers of soft capsule machine should have smooth surfaces without distinct scratches, and its jumping degree is less than 0.08mm. The linear speed of left and right capsule shell rollers can be adjusted as per demands through touch screen. The gelatin tapes generated during producing have even thicknesses and smooth outer and inner surfaces.
10 The soft capsule cooling system is used for cooling the shell rollers on both sides of capsule, and the rollers’ temperature can be automatically regulated through touch screen within 10°C-20°C to satisfy the demands for the production of different capsule shells and soft capsule products; The soft capsule cooling system consists of outdoor cooling unit and inner condenser of soft capsule machine where the cooling capacity is transferred to liquid refrigerant which will send the cooling capacity of cooling system to the capsule shell rollers of both sides through pump. The sensor in the system is used to automatically control condensation temperature and further regulate the capsule shell rollers’ temperature.
11. The load precision of feed pump is ±1.5%; upon the test on feed pump of matching operation by 0-5 R/min in die’s principal axis, no abnormal vibration happens. It is not required to adjust the injection time if adopting the design concept of automatic pump.
12. The capsule product’s percent of pass should be no less than 97%.
13. The soft capsule should not be scratched, extruded or spilled out of the rotor while being shaped and dried in drying system.

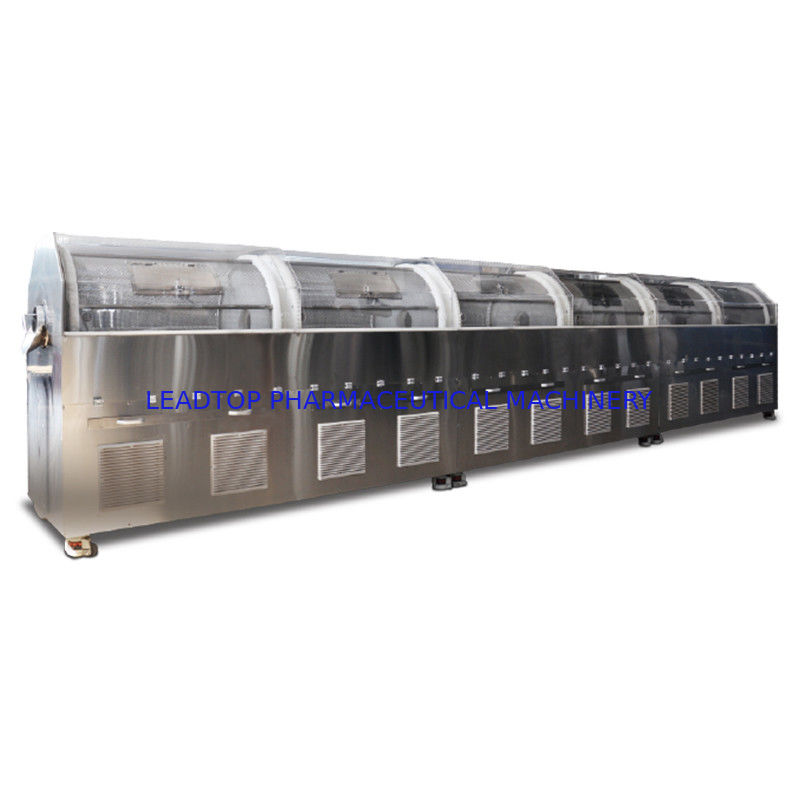

Paintball Gelatin Capsule Encapsulation Machine Rotary Molding 0
Optional Accessories

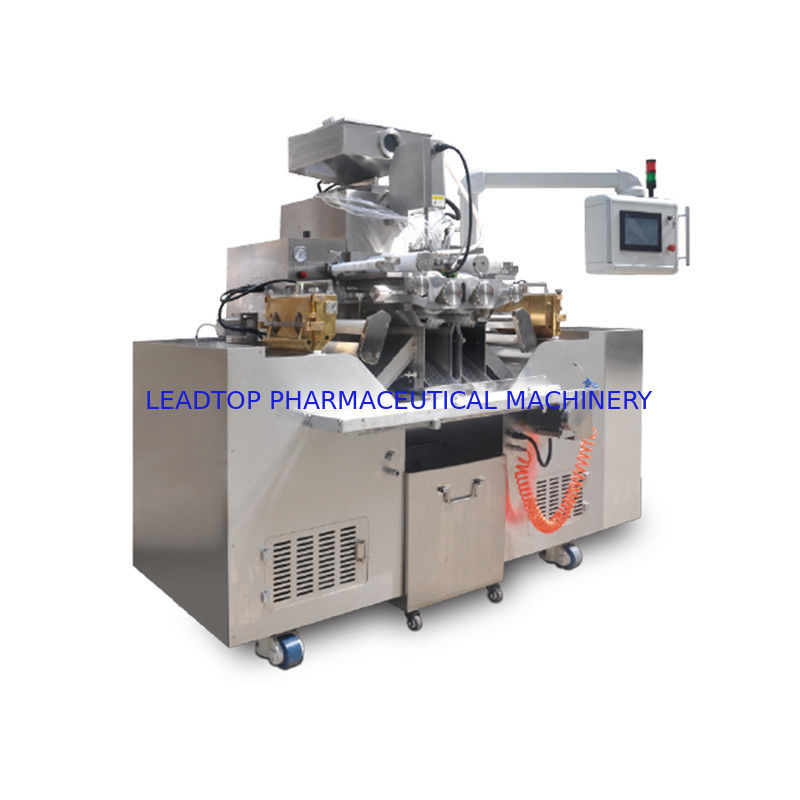

Paintball Gelatin Capsule Encapsulation Machine Rotary Molding 1
Paintball Gelatin Capsule Encapsulation Machine Rotary Molding 2


Technical Parameters



ITEM/MODEL LTRJ-110
Rotary speed of die roll 0-7rpm
Supplying Volume for flow single-pillar pistol 0-1ml
Difference among filling volume ±2%
Power for whole machine 2.3KW
Pillar quantity 8
Main Body sizes 1250×900×1820
Weight of whole machine 600Kg


Paintball Gelatin Capsule Encapsulation Machine Rotary Molding 3
