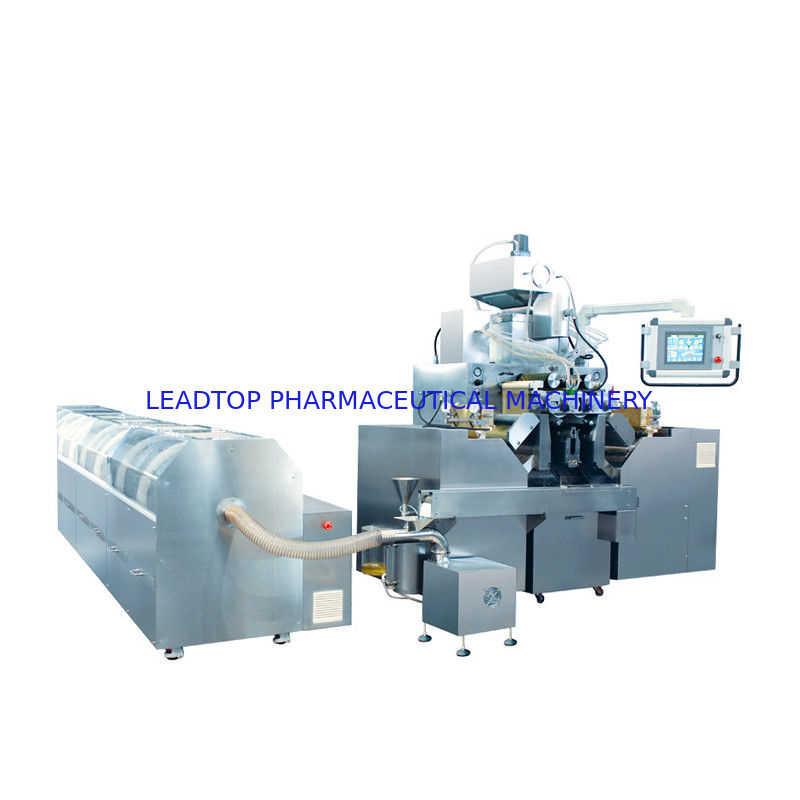

Medicine Laboratory Softgel Encapsulation Machine With Touch Screen

Medicine Laboratory Softgel Encapsulation Machine With Touch Screen

Product Details:

Place of Origin: China
Brand Name: LTPM China
Certification: CE, GMP
Model Number: LTRJ-110

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: In 25 days after receiving the deposit
Payment Terms: 30% TT as deposit and 70% before shipping
Supply Ability: 25 sets/Month
Get Best Price Contact Now

Detail Information

Rotary Speed Of Die Roll: 0-7rpm Supplying Volume For Flow Single-pillar Pistol: 0-1ml
Difference Among Filling Volume: ±2% Power For Whole Machine: 2.3KW
Pillar Quantity: 8 Main Body Sizes: 1680×1100×1820 Mm
High Light:

Laboratory Softgel Encapsulation Machine


Medicine Softgel Encapsulation Machine


Touch Screen Softgel Encapsulation Machine

Product Description

Softgel Production Line, High Quality Small Scale Production Or Laboratory Softgel Encapsulation Machine


Soft gel encapsulation machine can quantificational inject the oil, mixing suspension and pasty mass into the capsule to form all kinds of soft gel encapsulation with different size, shape and color. Because of the merits of high speed disintegration, easy to oral, hard to oxygenation, easy to store and take, the soft gel encapsulation is welcomed by more and more customers. Owing to the high productivity, charging exactly, quality stabilization, high finished product rate, it is favored by more and more manufacturers and used in the fields of medicine, health products, cosmetic and game-color ball and so on.


The automatic laboratory soft capsule machine is a new product newly developed by our company in 2012. This machine is a soft capsule model which can be used in both laboratory research and development and can be used in the domestic test. A large and small pill (100mg-2000mg) can be produced according to GMP requirements. Adopting single-phase 220V power supply, this model is widely used in more than 100 pharmaceutical research institutions and key institutions nationwide.


Medicine Laboratory Softgel Encapsulation Machine With Touch Screen 0

Medicine Laboratory Softgel Encapsulation Machine With Touch Screen 1


Technical Parameters


Rotary speed of die roll 0-7rpm
Supplying Volume for flow single-pillar pistol 0-1ml
Difference among filling volume ±2%
Power for whole machine 2.3KW
Pillar quantity 8
Main Body sizes 1250×900×1820
Weight of whole machine 600Kg



1. Adopts big size touch screen, with fault diagnostic function, can store various kinds of operating parameters, reserve
network interface.
2. The mould adopts the aviation aluminum alloy, long service life. Optimize design, more mould holes, low net-gelatin rate.
3. Mould pressing adopt pneumatic way, fast and stable.
4. The gelatin sheet drum wheel, gelatin sheet oil system and mould adopt parallel design, high stability. Mould shaft, gelatin drum wheel and pulling shaft adopt independent variable frequency drive motor, easy to adjust, low noise, and smooth operation.
5. The gelatin sheet adopt micro lubrication, and really no clean, improve efficiency, to save money.
6. The gelatin sheet cooling adopt independent professional cold water machine, low energy consumption, high refrigeration efficiency.
7. Spray body life easily, can stay in any position, reduce labor intensity.
8. Discharge soft capsule by net-hopper, and form in advance by cold wind, make soft capsule molding more beautiful and conveying more reasonable.
9. Material hopper can not only adjust temperature, and mixing with speed adjusting, the more suitable for traditional Chinese medicine suspension liquid.
10. Equipment designed with ergonomic, appropriate human nature, easy operation and reasonable.


Medicine Laboratory Softgel Encapsulation Machine With Touch Screen 2
