3mm Tablet Counting Filling Machine Candy Counting Machine

3mm Tablet Counting Filling Machine Candy Counting Machine

3mm Tablet Counting Filling Machine

20ml Bottles Candy Counting Machine

32 Channels Tablet Counting Filling Machine

Place of Origin:

China

Brand Name:

LTPM China

Certification:

CE, GMP, SGS, BV

Model Number:

LTEC-Series

Contact Us

Request A Quote
Product Details
Usage:
Capsule,tablets,gums,rubber,etc.
Power:
220v 50hz Single Phase
Transmission:
Electronic
Capacity:
200000pcs/h
Brand:
LeadTop
Line Length:
Optional
Product Description

  Automatic Bottling Candy Counting Machine Pharmacy Capsule Tablet Counter Bottle Filling Machine





Main performance and structure features:

1. Wide applicability:

Used for tablets (including abnormal tablets), capsules, gels (including abnormal gels, transparent gels and opaque gels) pills and most solid granules.

2.Anti-dust:

Using our own original high anti-dust sensor technology, the machine works accurately with good stability in heavy dust conditions.

3.Protect materials from harm

Feeding evenly with quiver, special patent filling part, no breakage of the material.

4.Avoid the materials jam:

Hopper mouth of the special structure, to prevent the materials jam, small mouth bottle can quickly bottling.(Optional)

5.Detection function:

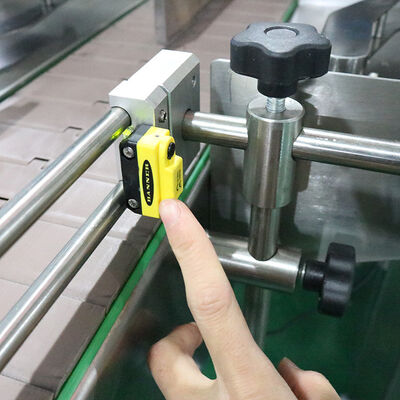

No bottle will not count and fill. Automatically remove bottles of filling abnormalities and a certain size broken tablets. Self-diagnose errors and stop working to make alarm at errors.

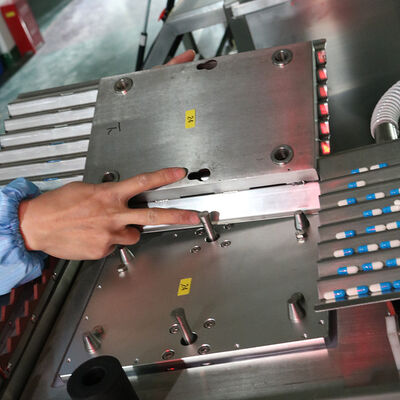

This Machine innovative electronic counter of our company.On the basis of the original technology, modular design of the vibrating trough, pneumatic pusher, and pneumatic continuous blanking mechanism.The counting photoelectric adopts one-to-one independent control, which has higher precision, faster speed and more stable operation.It can pack all kinds of tablets and capsules (transparent or opaque hard capsules, soft capsules, pills, etc.) in the range of 3-25 mm. Meet the requirements of GMP.It can be connected with bottle unscrambler, paper inserter, desiccant inserter, capping machine, aluminum foil sealing machine and labeling machine.

3mm Tablet Counting Filling Machine Candy Counting Machine 0







Application

This Machine Suitable For Scientific Research Institutions, Hospitals, Small And Medium-Sized Pharmaceutical Factories, Health Products Factory Production Packaging

3mm Tablet Counting Filling Machine Candy Counting Machine 1









Main Technical Data



Model LTEC-12 LTEC-16 LTEC-24 LTEC-32
Slide wheel 12 Channels 16 Channels 24 Channels 32 Channels
Size of Object Tablet: φ5-12mm Capsule: 00#-5# all kinds of soft capsule
Size of bottles 20-300ml
The diameter for bottles mouth 20-80mm
Output 4,000pcs/min 6,000pcs/min 8,000pcs/min 10,000pcs/min
Capacity 40bottles/min 60bottles/min 80bottle/min 100bottles/min
Power 0.9KW 0.9KW 1.35KW 1.35KW
Power supply 220V 60HZ
Air pressure 6kgs/c
Overall dimensions(mm) 1700×1700×1900 2000×1700×1900 2800×1700×1900 3200×1700×1900



Detail

3mm Tablet Counting Filling Machine Candy Counting Machine 2

3mm Tablet Counting Filling Machine Candy Counting Machine 33mm Tablet Counting Filling Machine Candy Counting Machine 4

3mm Tablet Counting Filling Machine Candy Counting Machine 53mm Tablet Counting Filling Machine Candy Counting Machine 63mm Tablet Counting Filling Machine Candy Counting Machine 73mm Tablet Counting Filling Machine Candy Counting Machine 83mm Tablet Counting Filling Machine Candy Counting Machine 9

3mm Tablet Counting Filling Machine Candy Counting Machine 103mm Tablet Counting Filling Machine Candy Counting Machine 11

3mm Tablet Counting Filling Machine Candy Counting Machine 12
