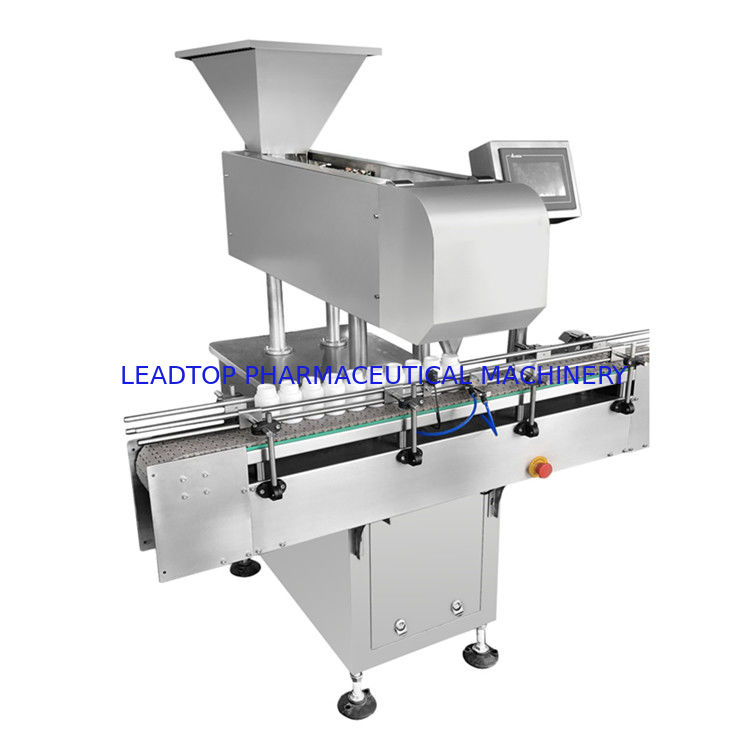

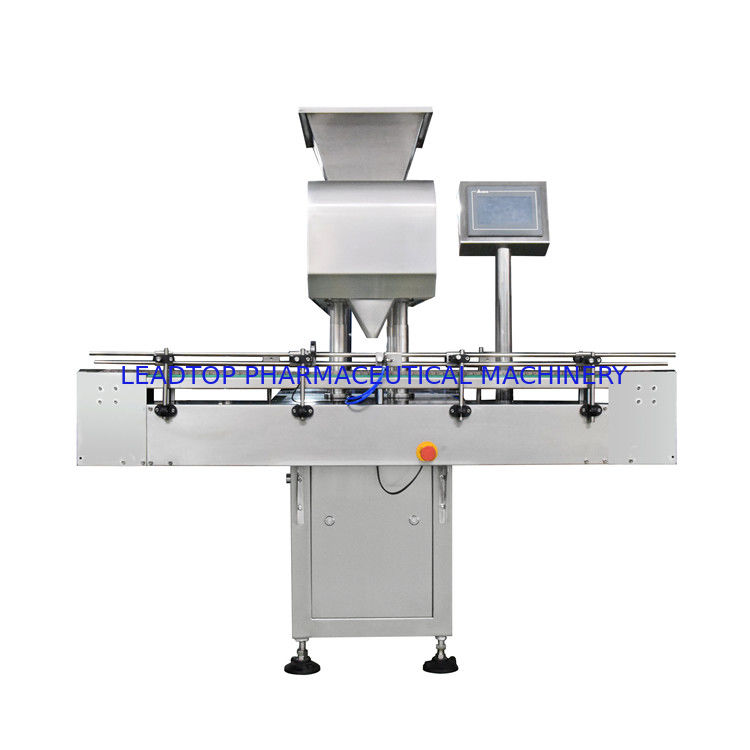

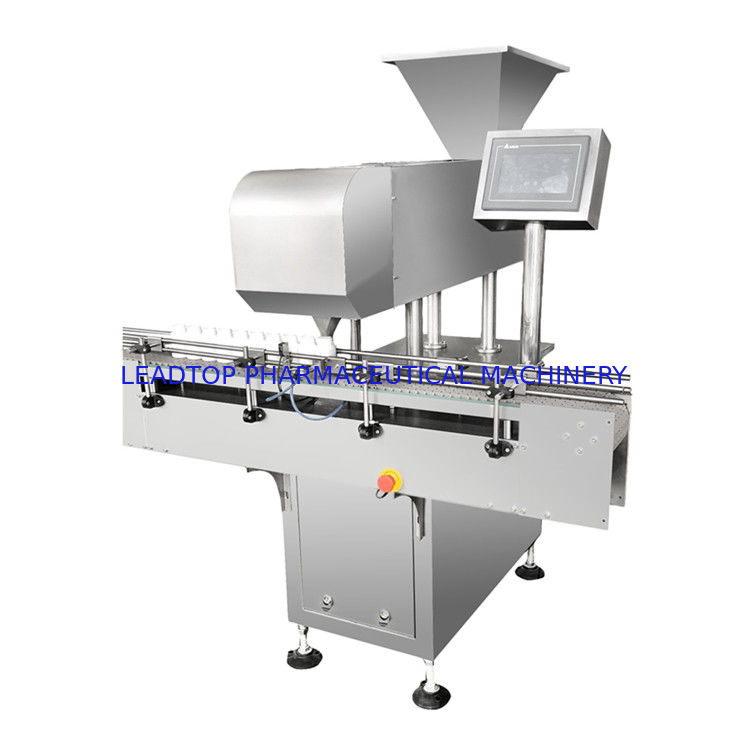

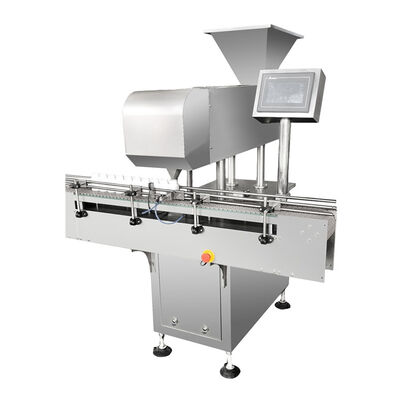

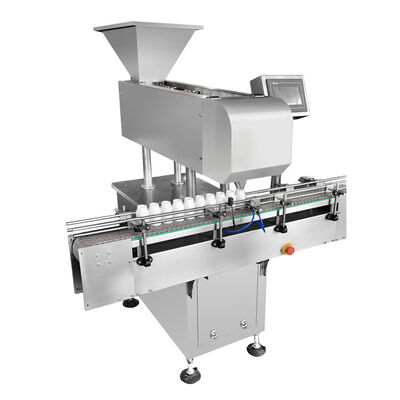

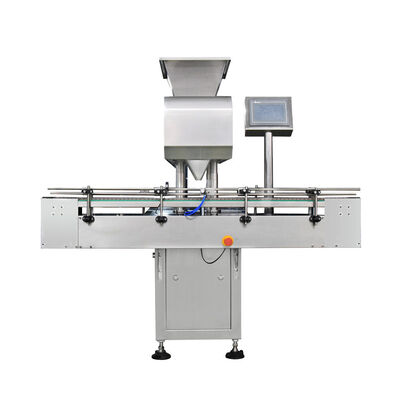

Automatic Multi Channel Softgel Counting Machine Tablet Bottle Filling Machine Counting Packaging Machine
The Multi-channel counter can count and package solid particles such as pills, tablets, capsules (transparent or opaque hard capsules, soft capsules). It is suitable for tablets, capsules, pills of 3mm to 20mm size. This machine is widely used in scientific research institutions, hospitals, pharmaceutical plants, laboratories, and health care products factories, in line with GMP requirements.
Main Features
1-Good compatibility. It can count the tablet (including special-shaped tablets), capsule, soft capsule (transparent, opaque), pill, and other solid preparations or solid particles.
2-It adopts the anti-dust photoelectric sensor technology, which can work stably in the case of high dust.

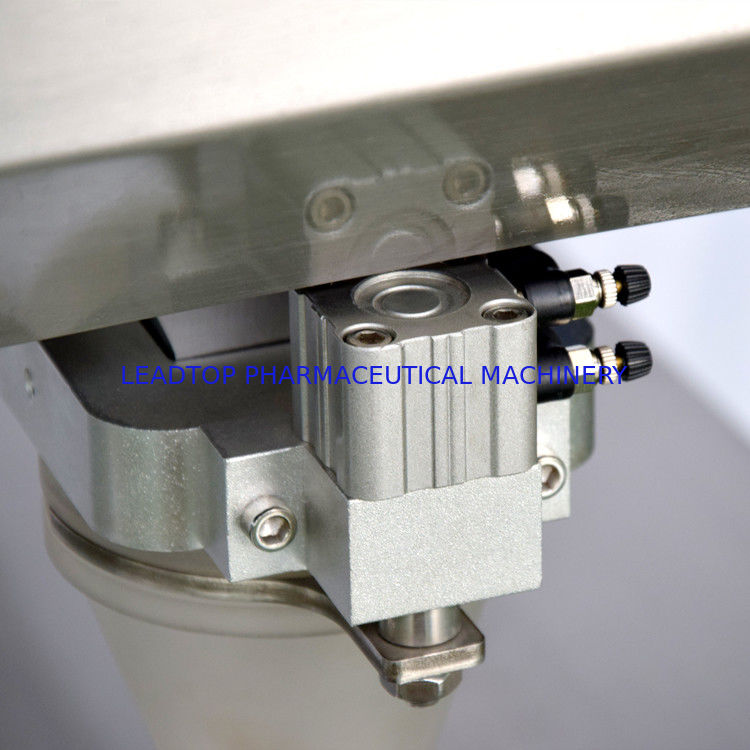

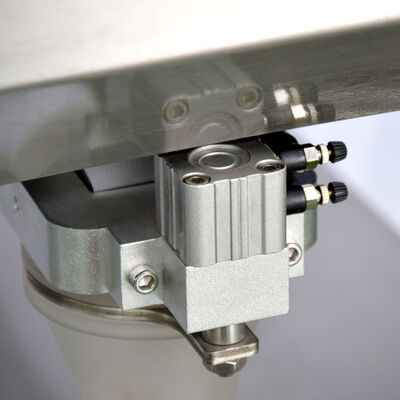

3-It has a special structure of the leaking nozzle, which can prevent material jams, and the bottle with a small mouth can also quickly filling.
4-The materials feeding is even and stable to protect materials from harm, and ensure the bottling is accurate.
5-It has many detection and alarm control functions such as no bottle and no count, fault self-test, and so on.

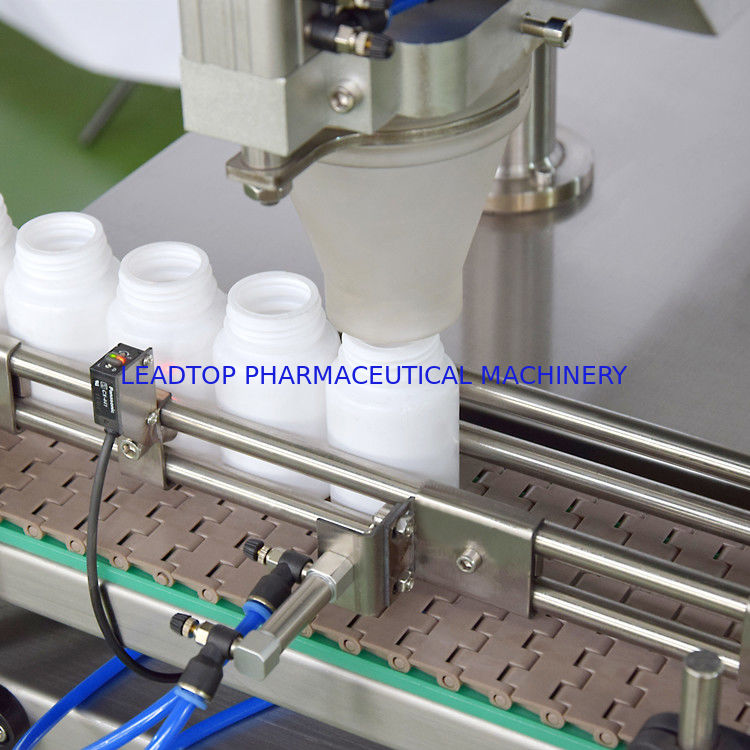

6-It has a photoelectric sensor automatic inspection function. It will automatically stop when there is no bottle.
Application
This Machine Suitable For Scientific Research Institutions, Hospitals, Small And Medium-Sized Pharmaceutical Factories, Health Products Factory Production Packaging
Main Technical Data
| Model | LTEC-12 | LTEC-16 | LTEC-24 | LTEC-32 |
| Slide wheel | 12 Channels | 16 Channels | 24 Channels | 32 Channels |
| Size of Object | Tablet: φ5-12mm Capsule: 00#-5# all kinds of soft capsule | |||
| Size of bottles | 20-300ml | |||
| The diameter for bottles mouth | 20-80mm | |||
| Output | 4,000pcs/min | 6,000pcs/min | 8,000pcs/min | 10,000pcs/min |
| Capacity | 40bottles/min | 60bottles/min | 80bottle/min | 100bottles/min |
| Power | 0.9KW | 0.9KW | 1.35KW | 1.35KW |
| Power supply | 220V 60HZ | |||
| Air pressure | 6kgs/c | |||
| Overall dimensions(mm) | 1700×1700×1900 | 2000×1700×1900 | 2800×1700×1900 | 3200×1700×1900 |
Mechanical Process
Detail
Machine Operation
