Multi Lanes Photoelectric 3mm Tablet Counting Machine

Multi Lanes Photoelectric 3mm Tablet Counting Machine

Photoelectric Tablet Counting Machine

3mm Tablet Counting Machine

12 Channels Tablet Counting Machine

Place of Origin:

China

Brand Name:

LTPM China

Certification:

CE, GMP, SGS, BV

Model Number:

LTEC-Series

Contact Us

Request A Quote
Product Details
Usage:
Capsule,tablets,gums,rubber,etc.
Power:
220v 50hz Single Phase
Transmission:
Electronic
Capacity:
200000pcs/h
Brand:
LeadTop
Line Length:
Optional
Product Description

 Multi Lanes Independent Control Photoelectric Electric Auto China Manufacturer Tablet Counting Filling Machine





Features

1. Strong compatibility, high accuracy, wide application range, can count and bottle tablets (including shaped tablets),capsules, soft capsules (transparent, opaque) pills
2. Vibratory feeding, unique patent flap dispensing mechanism does not damage drugs
3. High degree of intelligence, with multiple detection and alarm control functions such as no bottle count, fault self-test, etc.





Main Technical Data



Model LTEC-12 LTEC-16 LTEC-24 LTEC-32
Slide wheel 12 Channels 16 Channels 24 Channels 32 Channels
Size of Object Tablet: φ5-12mm Capsule: 00#-5# all kinds of soft capsule
Size of bottles 20-300ml
The diameter for bottles mouth 20-80mm
Output 4,000pcs/min 6,000pcs/min 8,000pcs/min 10,000pcs/min
Capacity 40bottles/min 60bottles/min 80bottle/min 100bottles/min
Power 0.9KW 0.9KW 1.35KW 1.35KW
Power supply 220V 60HZ
Air pressure 6kgs/c
Overall dimensions(mm) 1700×1700×1900 2000×1700×1900 2800×1700×1900 3200×1700×1900




This Machine Uses The Most Advanced Anti-High Dust Electronic Counting Technology. Tablets (Including Shaped Tablets), Hard Capsules, Soft Capsules (Transparent, Opaque) Pellets, And Other Solid Particles Ranging In Size From 3 To 12 Mm Can Be Counted And Dispensed. Can Be Bottled, Boxed, Bagged. Fully Compliant With GMP Requirements, Especially Suitable For Research Institutions, Hospitals, New Small Pharmaceutical Factories, Health Products Factories.

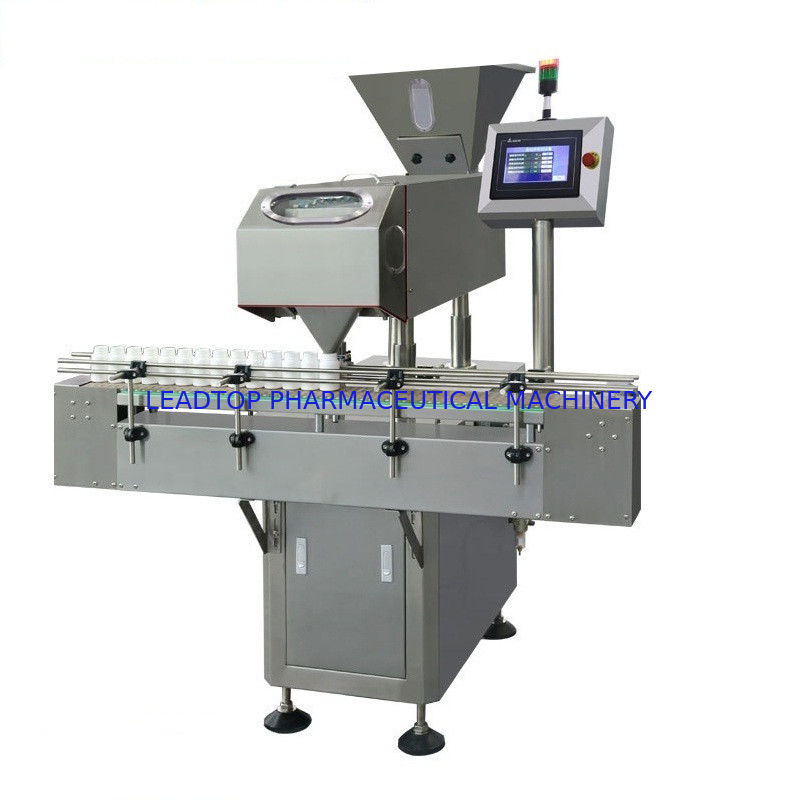

Multi Lanes Photoelectric 3mm Tablet Counting Machine 0



Application



Automatic Eleronic Tablet Counting Machine With Two Lines Working Separately To Pack All Kinds Of Tablets And Capsules (Transparent Or Opaque Hard Capsules, Soft Capsules, Pills, Etc.) In The Range Of 3-25 Mm.This Machine Suitable For Scientific Research Institutions, Hospitals, Small And Medium-Sized Pharmaceutical Factories, Health Products Factory Production Packaging

Multi Lanes Photoelectric 3mm Tablet Counting Machine 1

Multi Lanes Photoelectric 3mm Tablet Counting Machine 2







Detail

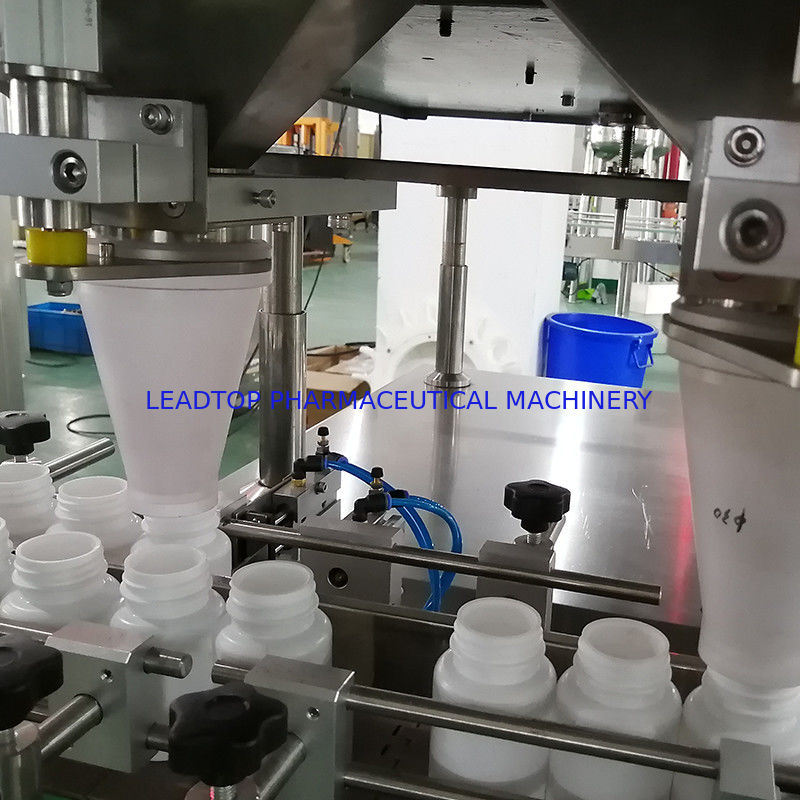

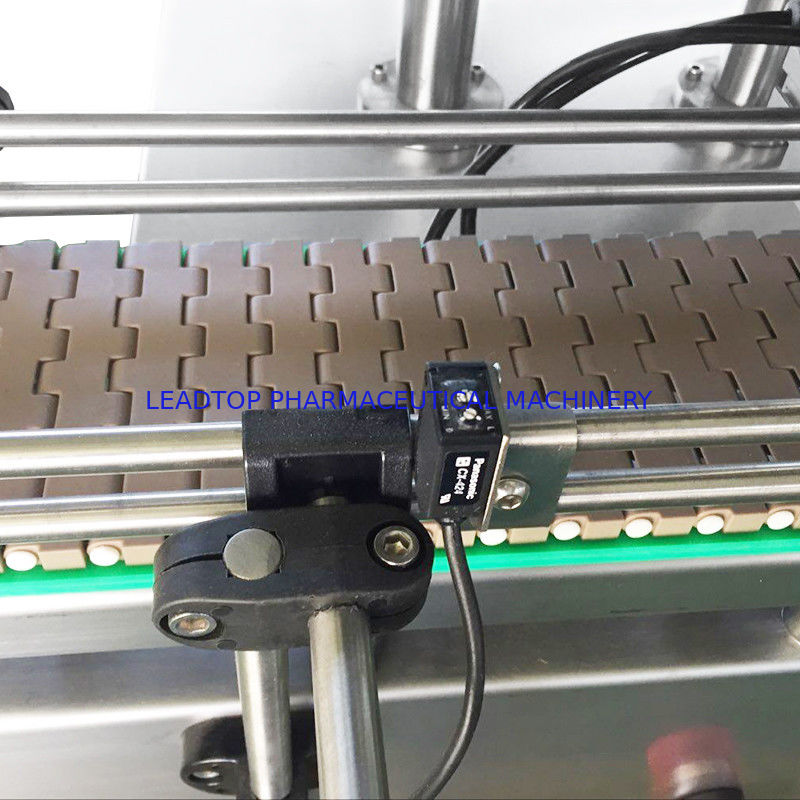

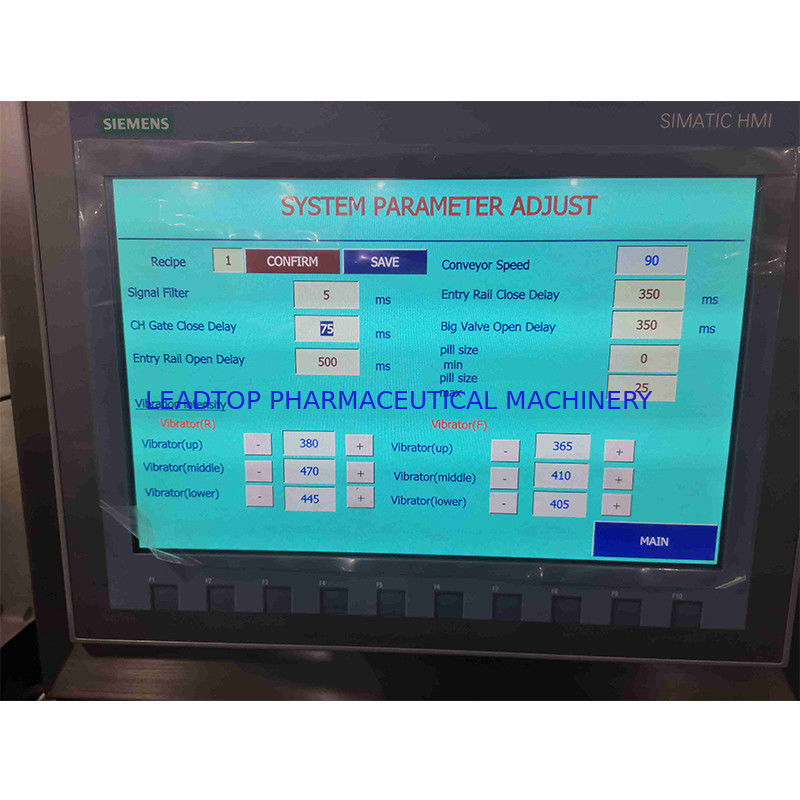

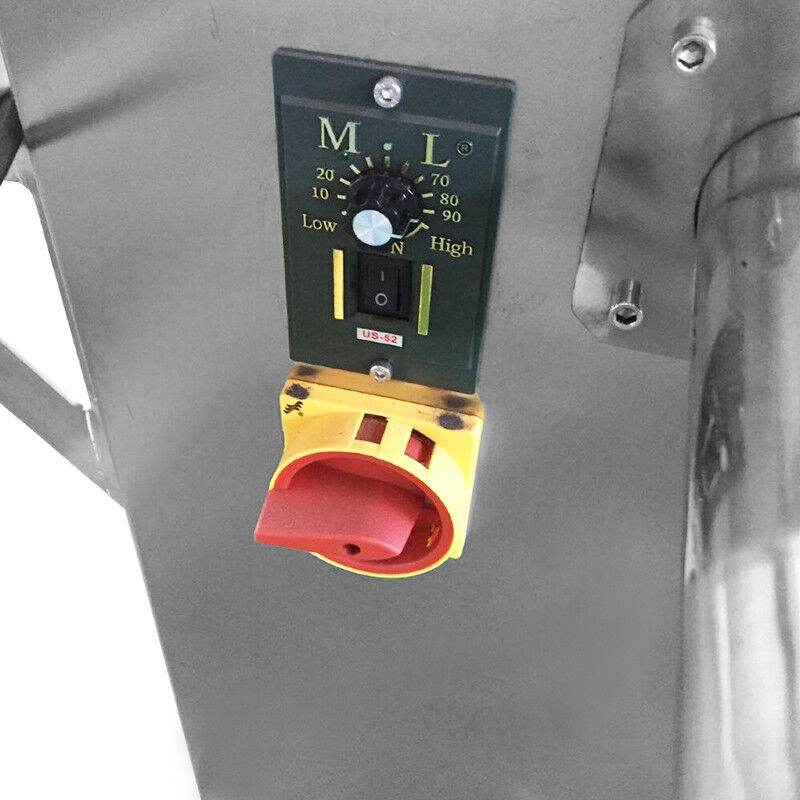

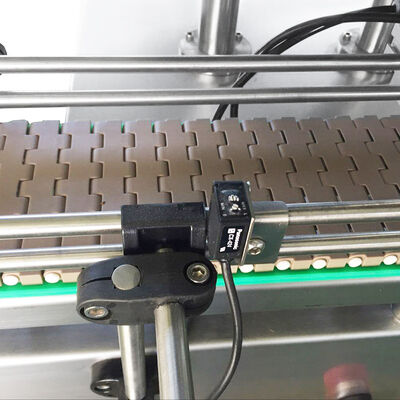

Multi Lanes Photoelectric 3mm Tablet Counting Machine 3

Multi Lanes Photoelectric 3mm Tablet Counting Machine 4

Multi Lanes Photoelectric 3mm Tablet Counting Machine 5

Multi Lanes Photoelectric 3mm Tablet Counting Machine 6
