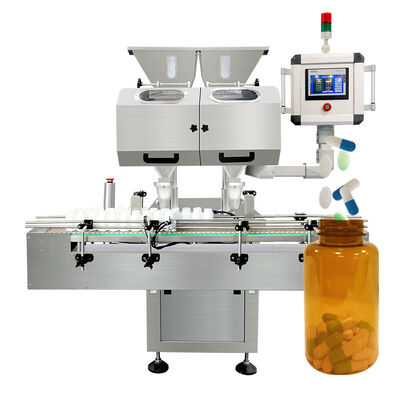

5 Year Warranty Drug Counting Electronic Automatic Pharmaceutical Tablet Counter Machine
Intelligent PLC Electronic Pill Food Grade Tablet Counter Counting And Bottling Machine Is The Sixth Generation Innovative Product Of Our Company. On The Basis Of The Original Technology, Modular Design Of The Vibrating Trough, Pneumatic Pusher, And Pneumatic Continuous Blanking Mechanism. The Counting Photoelectric Adopts One-To-One Independent Control, Which Has Higher Precision, Faster Speed And More Stable Operation.It Can Pack All Kinds Of Tablets And Capsules (Transparent Or Opaque Hard Capsules, Soft Capsules, Pills, Etc.) In The Range Of 3-25 Mm.Meet The Requirements Of GMP, Suitable For Scientific Research Institutions, Hospitals, Small And Medium-Sized Pharmaceutical Factories, Health Products Factory Production Packaging.
Main Technical Data
| Model | LTEC-12 | LTEC-16 | LTEC-24 | LTEC-32 |
| Slide wheel | 12 Channels | 16 Channels | 24 Channels | 32 Channels |
| Size of Object | Tablet: φ5-12mm Capsule: 00#-5# all kinds of soft capsule | |||
| Size of bottles | 20-300ml | |||
| The diameter for bottles mouth | 20-80mm | |||
| Output | 4,000pcs/min | 6,000pcs/min | 8,000pcs/min | 10,000pcs/min |
| Capacity | 40bottles/min | 60bottles/min | 80bottle/min | 100bottles/min |
| Power | 0.9KW | 0.9KW | 1.35KW | 1.35KW |
| Power supply | 220V 60HZ | |||
| Air pressure | 6kgs/c | |||
| Overall dimensions(mm) | 1700×1700×1900 | 2000×1700×1900 | 2800×1700×1900 | 3200×1700×1900 |
Application
Automatic Eleronic Tablet Counting Machine With Two Lines Working Separately To Pack All Kinds Of Tablets And Capsules (Transparent Or Opaque Hard Capsules, Soft Capsules, Pills, Etc.) In The Range Of 3-25 Mm.This Machine Suitable For Scientific Research Institutions, Hospitals, Small And Medium-Sized Pharmaceutical Factories, Health Products Factory Production Packaging

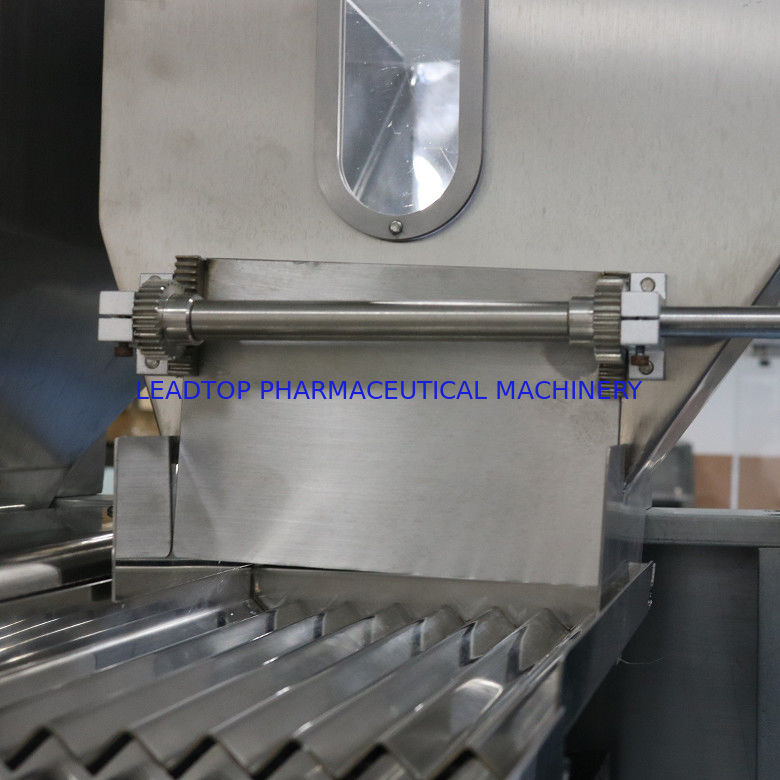

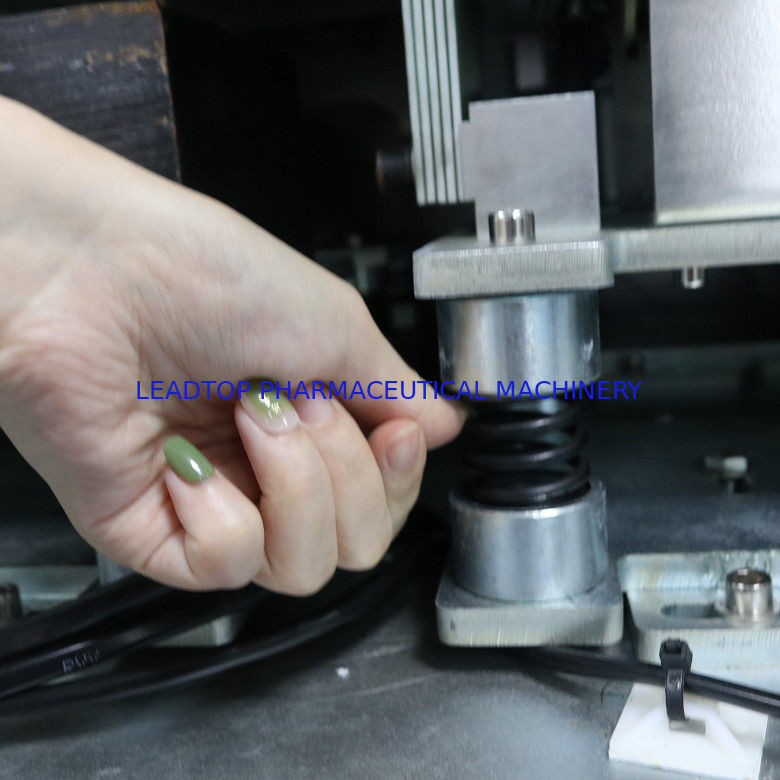

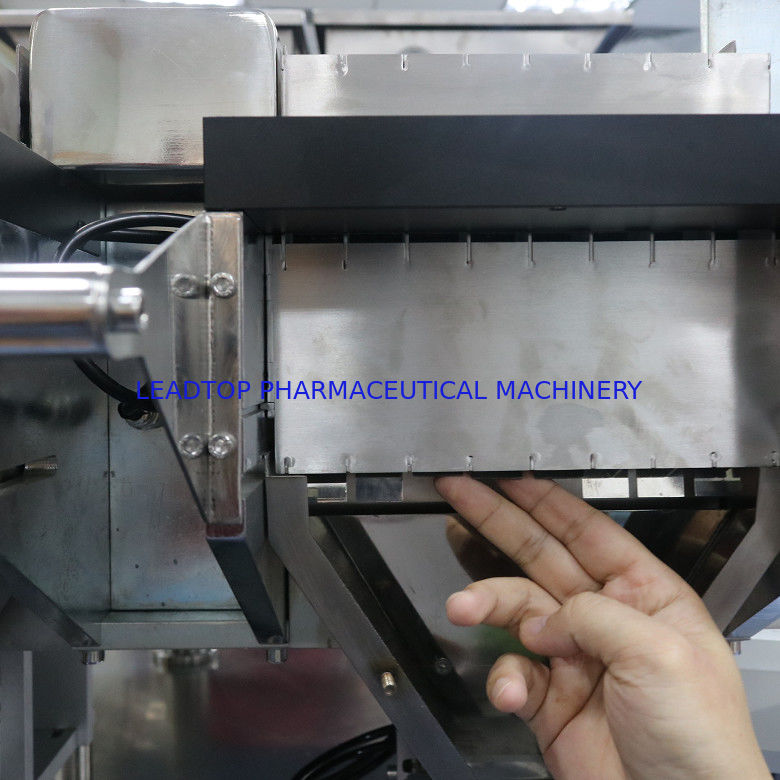

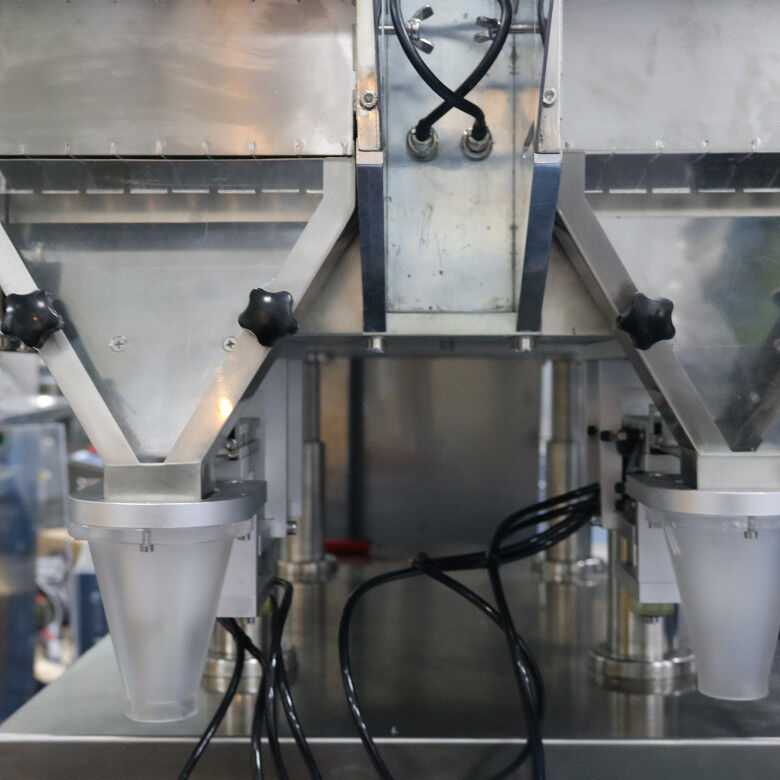

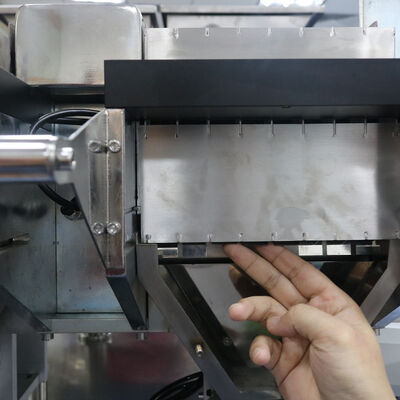

Detail
Technical Process
