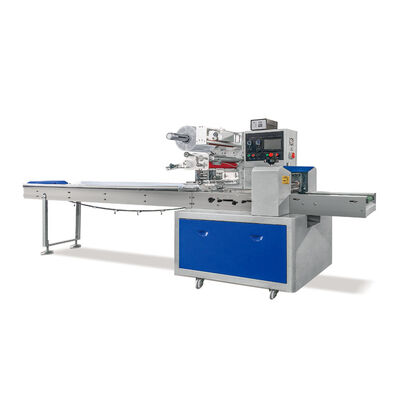

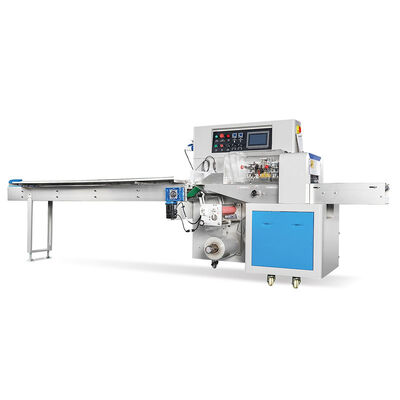

Surgical Mask Automated Packaging Machine 120pcs/Min

Surgical Mask Automated Packaging Machine 120pcs/Min

120pcs/Min Automated Packaging Machine

110packs/Min Automated Packaging Machine

260mm Film Pillow Packaging Machine

Place of Origin:

Zhejiang Province,China

Brand Name:

LTPM CHINA

Certification:

CE, GMP, SGS, BV

Model Number:

KD-260

Contact Us

Request A Quote
Product Details
Machine:
Pillow Packaging Machine
Max.Film Width:
260mm
Max Capacity Of Packing:
20-120 Pcs/ Min
Film Thickness:
Film Thickness
Bag Length:
60-300 ( Do Not Exceed This Size )
Packing Width:
25-150mm
Product Description

Horizontal packing machine is mainly used for various kinds of solid objects with regular shape (Square/ Rectangle/Circular/Ellipse/Flake etc.) such as food, pharmaceuticals tools, daily necessities, hardware, or any other products loaded in box or tray.







Main Features

1,Production speed of 110 packs / minute, guarantee 100 packs / min. it can meet the production demand of high speed, big width folding machine.

2,The whole machine adopts full servo control. Compared with the traditional cam motion, the adjustment is more convenient. All the parameters are operated through HMI. without oil pollution during using process. It is more advantageous to the paper tissue production.

3,The machine head is controlled by servo motor and package height can be adjusted.When producing different height specifications, no need to adjust the height of the machine head, only adjust the parameters of the touch screen.

4,The whole machine adopts the work of servo motor and eccentric wheel, which are reciprocating work and inertial motion, which replaces the straight-line start-stop work of the original pusher and top plate design. This design is better for the protection of equipment parts and servo motors. Timing belts are no longer used to reduce the investment of wearing parts.

5, The film feeding adopts the point cutting method, and the speed difference of the rubber roller pulls off the film, which is faster and better than the old method of cutting off film.

6, It adopts 3D packing form with wrap, hem and seal. The structure is compact and beautiful, and the effect of side sealing is good.





Surgical Mask Automated Packaging Machine 120pcs/Min 0

Three servo motors and gear motor: The first motor controls the feeding conveyor belt, the second motor controls the film loading device, and the third motor controls the horizontal sealing part. Three axis synchronous, various speed. Detect the product and pack, no product and machine will stop. It will reverse automatically if the cutter device touches the product, so will be not caused the cutter damaged.



Surgical Mask Automated Packaging Machine 120pcs/Min 1

Touch screen: Can be set up the relevant language basing on customer’s requirement. Simple page, easy operation, automatic fault diagnosis function, so the fault can be seen and understood more clearly, easier to maintenance.



Technical Parameters
Max.Film width
260mm
Max capacity of packing
20-120 pcs/ min
Film thickness
Film thickness
Bag Length
60-300 ( Do not exceed this size )
Packing width
25-150mm
Packing Height
≤80mm
Power Supply
220V 2.4 kW
Overall dimensions(L*W*H)
2600*750*4500mm
Total Weight
680kg

Product Application

It is used in automatic bag making of various mask,melons and fruits. The production line can be connected before and after. Such as: lemon,

orange, bell pepper, banana, peach, mangosteen, lotus, apricot, fig, apple, cucumber, etc.

Option function:Plastic bag punching, print production date, automatic weighing and printing labels, automatic labeling, etc

Packaging material requirement :Printed or unprinted roll film

Surgical Mask Automated Packaging Machine 120pcs/Min 2







The length of the machine can be appropriately shortened according to customer requirements. The machine can also be converted to dual servo control by variable frequency control.







Packing&Shipping
Machine Packing Details:

1)Dedust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5)Packing Modules into Plywood Cases
6)Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
