Socket Pillow Flowpack Automated Packaging Machine

Brand Name:	LTPM CHINA
Model Number:	KD-260
MOQ:	1 set
Price:	Negotiation
Payment Terms:	L/C, D/A, D/P, T/T, MoneyGram
Supply Ability:	45 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

Zhejiang Province,China

Certification:

CE, GMP, SGS, BV

Machine:

Pillow Packaging Machine

Max.Film Width:

260mm

Max Capacity Of Packing:

20-120 Pcs/ Min

Film Thickness:

Film Thickness

Bag Length:

60-300 ( Do Not Exceed This Size )

Packing Width:

25-150mm

Packaging Details:

Export Standard Wooden Case

Supply Ability:

45 sets/month

Highlight:

Flowpack Automated Packaging Machine

SGS Automated Packaging Machine

260mm Film Width Pillow Packaging Machine

Product Description

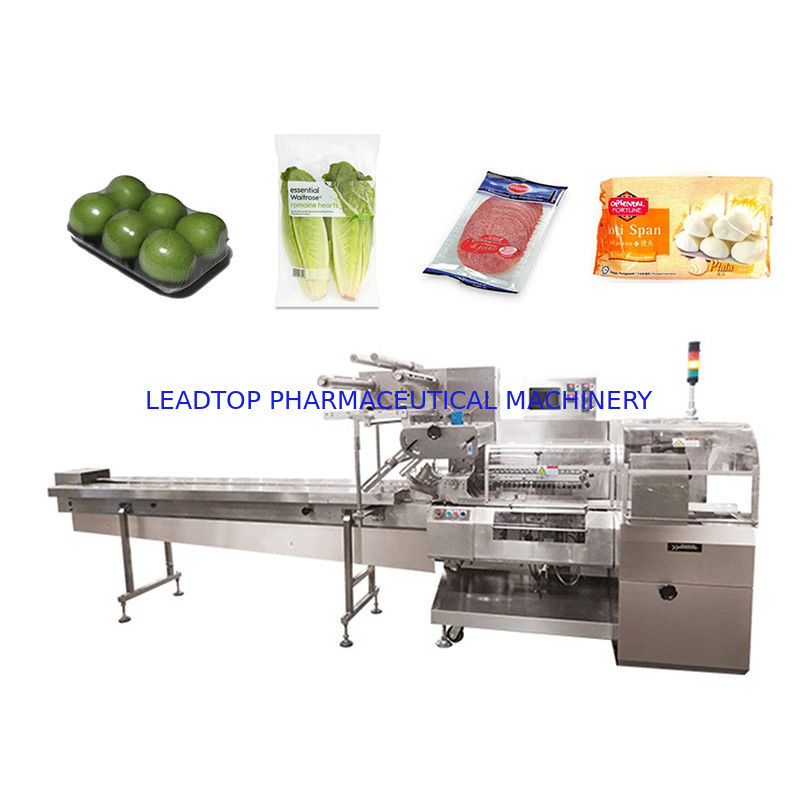

Socket Pillow Flowpack Automated Packaging Machine

Horizontal flow wrap machine is ideal for suppliers of products that must be packaged individually. Flow wrapping is a horizontal packaging process in which product enters the machinery and is wrapped in clear or printed film. The result is a tightly fitted flexible package with a horizontal back seal and end seal.

Main Features
Dual frequency conversion control, Bag length can be set and cut in one step, saving time and film.

Interface features easy and quick setting and operation.

Self failure diagnosis, clear failure display.

High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.

Temperature independent PID control, more suitable for packaging different materials.

Positioned stop function, without sticking knife or wasting film.

Simple driving system, reliable working, convenient maintenance.

All control is realized through software, easy for function adjusting and technical upgrade.

Technical Parameters

Max.Film width	260mm
Max capacity of packing	20-120 pcs/ min
Film thickness	Film thickness
Bag Length	60-300 ( Do not exceed this size )
Packing width	25-150mm
Packing Height	≤80mm
Power Supply	220V 2.4 kW
Overall dimensions(LWH)	26007504500mm
Total Weight	680kg

Product Application

Three Servo Automated Horizontal Box Motion Bakery Packaging Machine, apply to solid block products, especially bakery products such as mooncake, bread, cakes and so on.

Socket Pillow Flowpack Automated Packaging Machine 1
