Multi Heads 3.0Kw 0.7Mpa Weighing Packaging Machine

Multi Heads 3.0Kw 0.7Mpa Weighing Packaging Machine

0.7Mpa Weighing Packaging Machine

3.0Kw Weighing Packaging Machine

70Bags/Min Automated Packaging Machine

Place of Origin:

Zhejiang Province,China

Brand Name:

LTPM CHINA

Certification:

CE, GMP, SGS, BV

Model Number:

LTWP-100

Contact Us

Request A Quote
Product Details
Function:
FILLING
Packaging Type:
Stand-up Pouch, BAGS, Film, FOIL, Pouch
Voltage:
220V 50 Hz
Packing Range:
10-1000g
Packing Accuracy:
0.1-1.0g
Surface:
Dimple
Product Description

Multi-Heads Vegetables And Salads Leafy Greens Weighing Packaging Machine

Product Description

Application

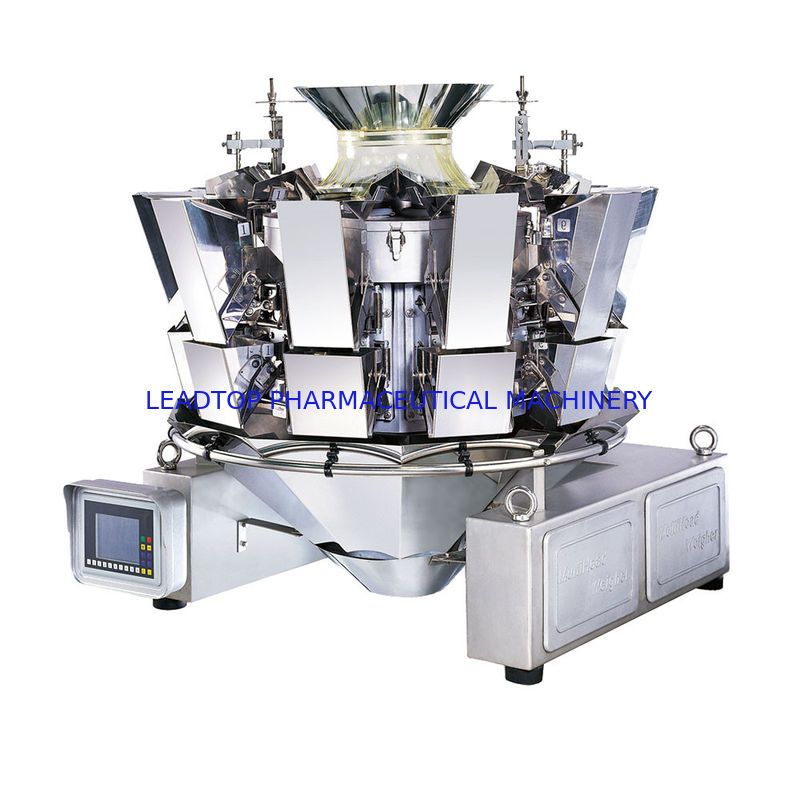

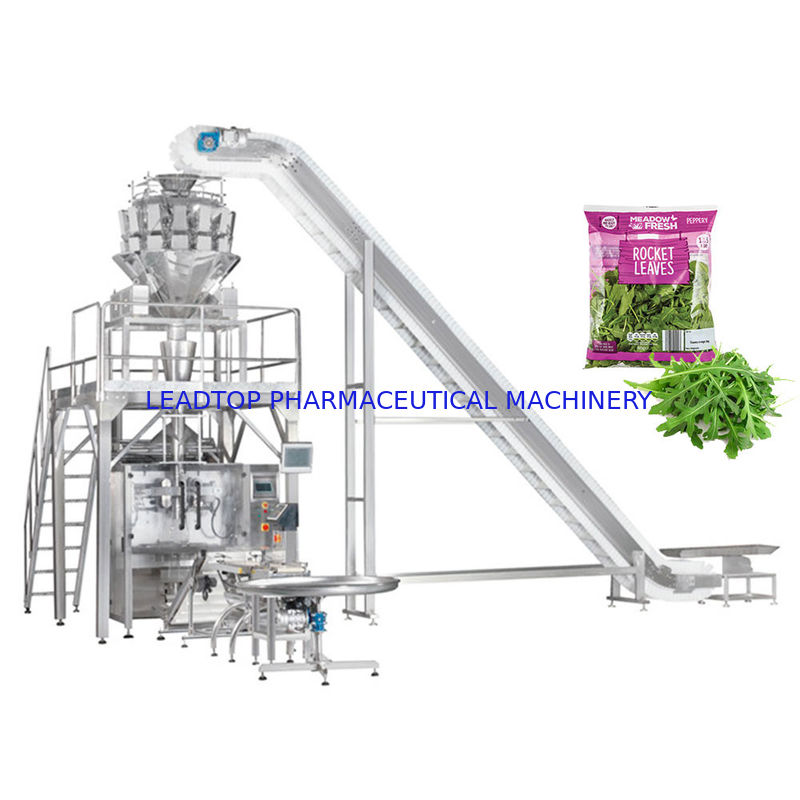

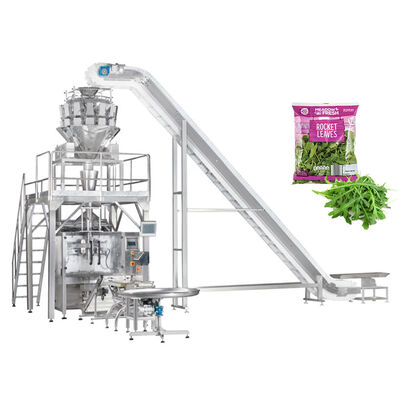

Multihead weigher packing machine is equipped with Z Conveyer and Multihead Weigher, it is widely applied to pack solid and bulk products, such as candy, cereal, nuts & snacks, cheese, pasta, beans & rice, pet food & treat, coffee and other non-food products.
Wellcome to contact us about your detail material and we can recommend the best packing machine solution for your reference.





Packing Machine Parameter


Please tell us the following information while you send us an inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Bag dimension
2. Bag weight
3. Your product
4. Bag shape
5. Bag material




Main Features

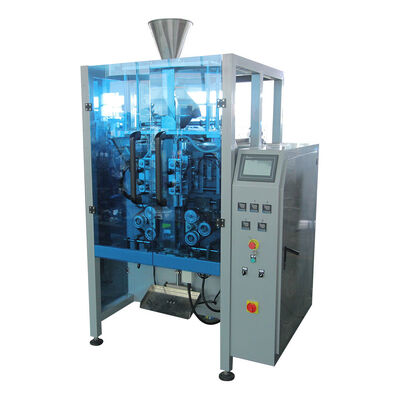

1) Imported PLC control system and color touching screen enable easy and efficeint operation

2) The bag type is diversified, and it can provide customers with pillow-shoaped bags, gusset bags, hanging hole bags, and even bags

3) Imported servo film transport system, imported color standard sensor, accurate positioning, excellent machine performance and beautiful packaging

4) A variety of automatic alarm protection functions are used to minimize losses



Main Technical Parameter

Function
Filling, Sealing, Forming
Packing weight
100~1000g
Packing bag type
pillow back sealing bags with gusset
Making bag size
(L)80-350mm, (W)80-250mm
Production capacity
25-70 bags / min
Compressed air consumption
0.5 cubic / minute 0.6-0.7Mpa
Power Supply
220V, 50-60Hz, 3.0 Kw
Dimension
1550*1200*1550mm
Weight
500kg
Warranty
5 year



Multi Heads 3.0Kw 0.7Mpa Weighing Packaging Machine 0







Multi Heads 3.0Kw 0.7Mpa Weighing Packaging Machine 1
