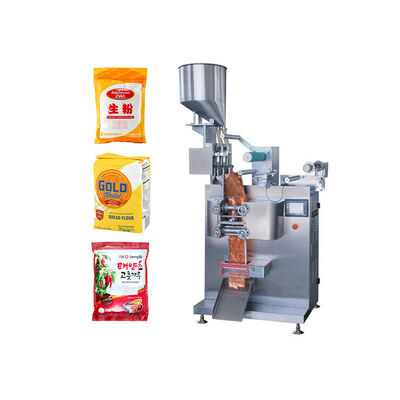

150mm Automated Packaging Machine

Brand Name:	LTPM CHINA
Model Number:	DXD-Series
MOQ:	1 set
Price:	Negotiation
Payment Terms:	L/C, D/A, D/P, T/T, MoneyGram
Supply Ability:	45 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

Zhejiang Province,China

Certification:

CE, GMP, SGS, BV

Machine:

Pillow Packaging Machine

Max.Film Width:

260mm

Max Capacity Of Packing:

20-120 Pcs/ Min

Film Thickness:

Film Thickness

Bag Length:

60-300 ( Do Not Exceed This Size )

Packing Width:

25-150mm

Packaging Details:

Export Standard Wooden Case

Supply Ability:

45 sets/month

Highlight:

Liquid Sachet Honey Stick Packing Machine

CE 150mm Automatic Filling machine

Product Description

CE Certification Automatic Filling Liquid Sachet Honey Stick Packing Machine

Product Description

DXD- Series Automatic powder packaging machine adopts microcomputer to control the length of the bag, copulate photo electric and helix-falling,It control by PLC for making bag,counting, filling, sealing,coding and cutting, it fits for 100-300MU powder.

Suitable material:

It is applicable for packing medicine,foodstuff,chemical industry powder,poor fluidity powder,such as medicine powder,flower powder,bean powder,camellia powder,ganoderma lucidum powder etc.
The bag can be sealed on three sides, four sides, or pillow.

Packaging material:

Paper/pe pet/al foil/penylon/pe,tealeaf filtering paper&ect.

Option:

Hot stamp ribbon coder(color style,ink wheel style);micro-computer controller

Technical Parameters

Items / Model	DXD-350K	DXD-500K	DXD-900K
Pouch length	50-250mm(L) (adjustable)	50~160mm	50~120mm( Pouch length can change)
Pouch width	50-85mm(W)	50~105mm	50~105mm
Packing speed	30-50times/min depend on pouch size and material	20~50times/nim(depend on pouch size and material)	80times/nim(depend on pouch size & material)
Measuring range	1-50ml	1~80ml	1~80ml
Applicable film	PET/AL/PE PET/PE NY/AL/PE NY/PE	PET/AL/PE PET/PE NY/AL/PE NY/PE	PET/AL/PE PET/PE NY/AL/PE NY/PE
Max width of film roll	350mm	500mm	900mm
Max film roll diameter	300mm	420mm	Φ300mm
Film roll core diameter	75mm	75mm	Φ75mm
Power voltage	220V/ 50HZ(do as customer’s request)	380V50Hz 3P 4W	380V 50Hz (do as customer's request)
Power	5.5kw	12 Kw	12 Kw
Gross Weight	650kg	1200kg	1200kg
Package size	(L)1400mm×(W)1000mm×(H)1700mm	1680x1280x2050mm	1500x1540x2200mm(L x W x H)
