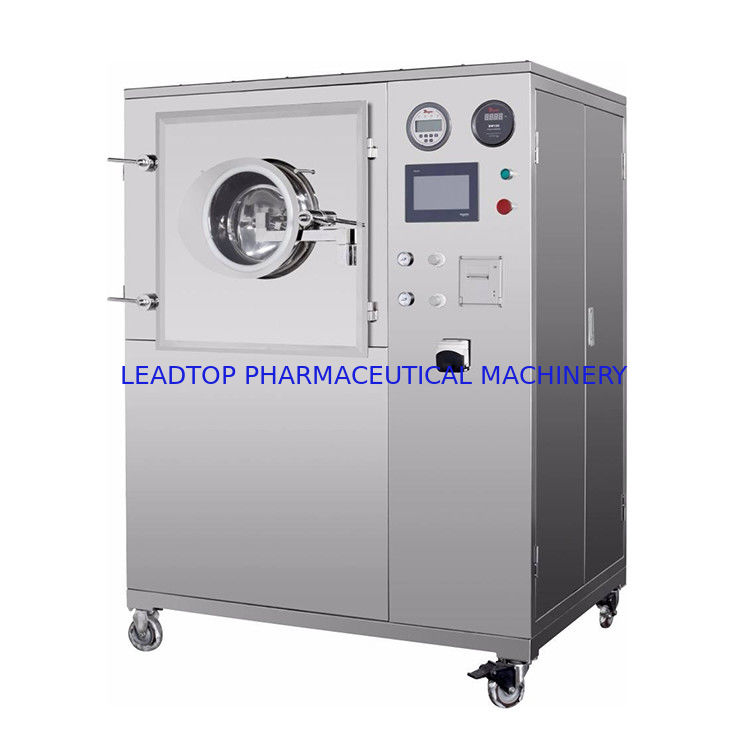

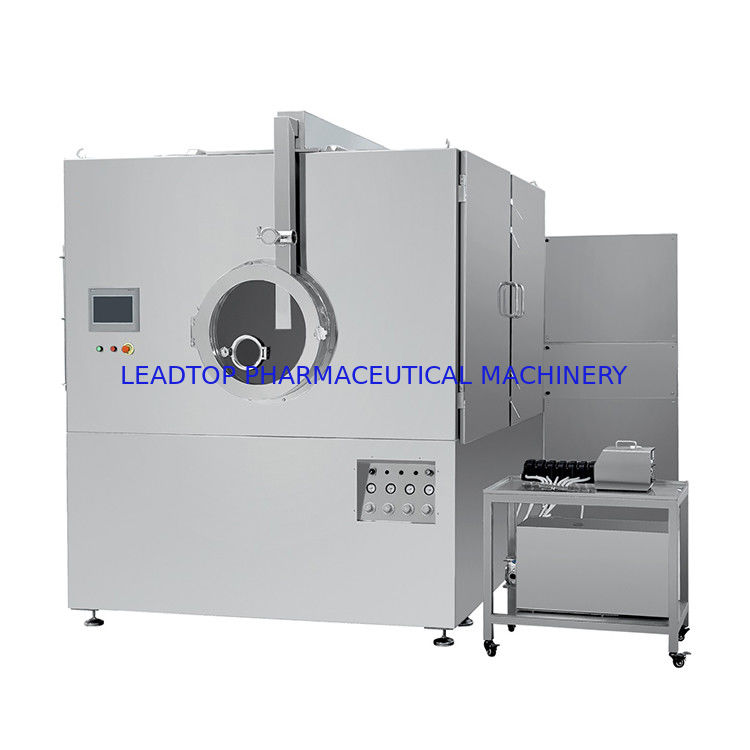

Sugar Film Coating Machine Auto Coater Pharmaceutical Processing Machines For Tablet
Product Details:
Place of Origin: | China |
Brand Name: | LTPM China |
Certification: | CE |
Model Number: | BG-40 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1set |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden Case |
Delivery Time: | In 30 days after receiving the deposit |
Payment Terms: | 30% TT as deposit and 70% before shipping |
Supply Ability: | 25 sets/Month |
Detail Information |
|||
Max. Tablet Volume: | 40Kg / Time | Sugar Coating Drum Speed: | 2-18 R.p.m |
---|---|---|---|
Host Machine Motor Power: | 1.1 Kw | Exhaust Blower Air Flow: | 5268 M3/h |
Air Heater Temp.-adjust Range: | ~ 80 ℃ | Power: | 2.8kw |
High Light: | sugar coating equipment,tablet coating machine |
Product Description
Sugar Film Auto Coater Coating Material Machine For Tablet
Product Application
The Film Coating Machine can be used for coating various tablets, pills and sweets with organic film, water-soluble film and sugar film, etc., in pharmaceutical, food and biological industries. It is noted for its high efficiency, low energy consumption and space-saving qualities.
Machine parts:
1.main machine : PLC man-machine interface , high-efficiency , save energy source , no dust , no pollution,Easy to operate and wash , small noisy . pills are clothed : the clothing dry , symmetrical , hard , thick , Smooth
2.hot-air dryer : passed three steps to filtrate of primary-Middle – senior . hot-air clean level has reached 100 thousand .
3.exhaust blower : has the devices of shockproof and automatic dust removing
4.adopt japan import spray gun (thrie)
5.grout mixer can
6.burette
7.strong electrical tank
8.wind pipe : 10M
9.this installment accord to “GMP” standard
10.this installment have passed provincial science and technology checkup
CHARACTERISTIC:
The main machine has importing PLC, man -machine interface, touch-sensitive screen to, press automatically. an carry on the operation of capsule crafts automatically or manually.
Adopt Japan import spray gun is heavy atomization even to spray surface, the angle is adjustable, no water clock, on stop up, the auxiliary materials are saved.
Grout mixer can is it compress air transport way or wriggle pump transport in the select for use, collect an organic whole electrically, no pollution. Hot air cabinet has flame-prep elementary, middle and senior100 thousand grade purifying filter Exhaust cabinet has the devices of shockproof, flame-proof and automatic dust removing..
CAN MAKE AND DISPOSE FOR USERS SEPARATELY:
Type production lot and write down the device.
The whole automatics washed in place.
Open and close both sides and seal the door device automatically.
The color rejects the control panel device.
FILM COATING PRINCIPLE:

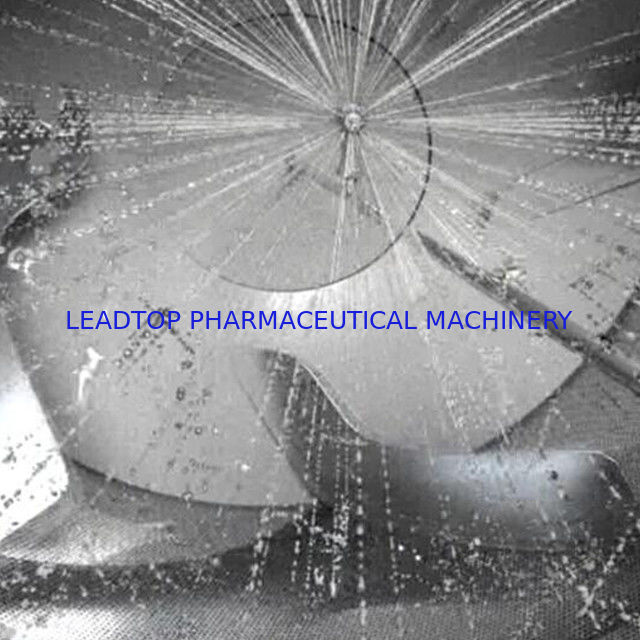

This slice of core is put into the clean and airtight film coating machine and rotated in the cylinder under streamline shape water conservancy diversion board function, roll ceaselessly, make a scene of core smooth in upset, frequently exchange. Film coating medium in paddle barrel, through compress air transport or wriggle the pump not to transport, from a slice of core rolling, and arrange under the function of the wind in the
hot wind at the same time, make the capsule medium dry fast on a slice of core surface, from the firm and smooth surface capsule membrane, then produce material automatically after reaching the technological requirement...
Technical Parameter
Item Model | BG-5 | BG-10 | BG-40 |
Maximum capacity(kg) | 5 | 10 | 40 |
Roller speed adjust range | 2-25 | 2-25 | 2-20 |
Main machine outline dimension(LxWxH) | 900x800x1700 | 900x840x1800 | 1080x900x2000 |
Main machine motor power | 0.55 | 0.55 | 1.1 |
Hot air cabinet motor power | 0.37 | 0.37 | 0.75 |
Exhaust cabinet motor Power | 0.75 | 0.75 | 2.2 |
Exhaust cabinet air supply volume | 800 | 900 | 2500 |
