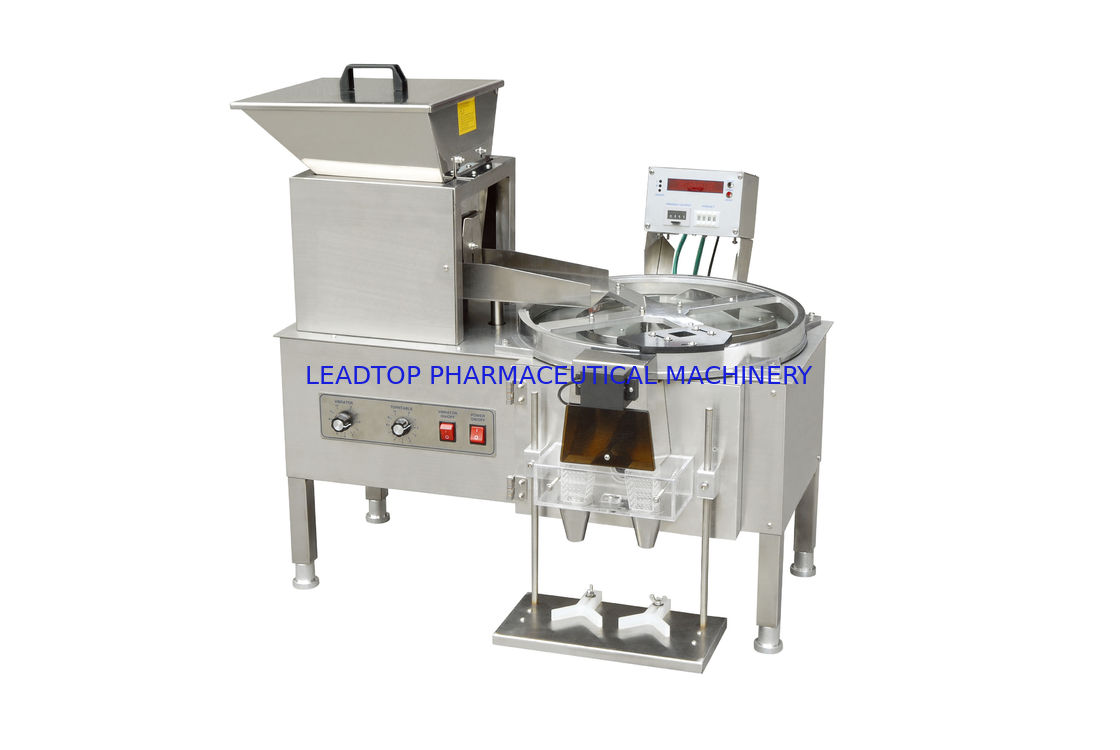

Electronic Small Capsule Pill And Tablet Counting Machine Automatic Low Noise

Electronic Small Capsule Pill And Tablet Counting Machine Automatic Low Noise

Electronic Small Capsule Pill And Tablet Counting Machine Automatic Low Noise

Product Details:

Place of Origin: China
Brand Name: LTPM China
Certification: CE, GMP, SGS, BV
Model Number: YL-4

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Export Standard Wooden Case
Delivery Time: 25days
Payment Terms: T/T,L/C,D/P
Supply Ability: 15sets/month
Contact Now
Detailed Product Description
Model: YL-4 Usage: 000-5# Capsules, Soft Gels, <Ø22 Normal Tablets, <Ø20 Pills Special Shape Tablets, Coating Tablets,and Some Other Solid Granules
Applicable Bottle: 10~500ml Round、square Plastic Bottle Transmission: Electronic
Capacity: For 8mm Tablet Example , It Can Count About 1500 Tablets Per /min Brand: LeadTop
Working Range: Adjustable From 1-9999 Per Bottle

Electronic Automatic Small Capsule Pill And Tablet Counting Machine

Product Application

The block bottle device on the passing bottle-track of the conveying bottle system make the bottles which came from the previous equipment stay in the bottling position,waiting to be filled in.The medicine goes into the medicine container in order by the vibration of the feeding corrugated plate.There’s a counting photoelectric sensor installed on the medicine container,after counting of the medicine in the medicine container by the counting photoelectric sensor, the medicine goes into the bottle in the bottling position.

SPECIFICATIONS FOR TABLET &CAPSULE COUNTING MACHINE
Model
YL-4
Filling error
≤ 1‰ bottles
Application
000-5# capsules, soft gels, <Ø22 normal tablets, <Ø20 pills special shape tablets, coating tablets,and some other solid granules



Power supply
AC220V 50Hz 0.6kw



Applicable bottle



10~500ml round,square plastic bottle
Net Weight
100Kg
Capacity
For 8mm tablet example , it can count about 1500 tablets per /min
Pressed Air Supply
0.6 Mpa
Working Range
Adjustable from 1-9999 per bottle
Dimension
660×1280×780mm
Capacity related to the type and size of the bottle and tablet, as well as the quantity filled per bottle.



Main Features

1) Wide applicability:
Used for tablets (including abnormal tablets), capsules, gels (including abnormal gels, transparent gels and opaque gels) pills and most solid granules.
2) Anti-dust:
Using our own original high anti-dust sensor technology, the machine works accurately with good stability in heavy dust conditions.
3) Protect materials from harm
Feeding evenly with quiver, special patent filling part, no breakage of the material.
4) Avoid the materials jam:
Hopper mouth of the special structure, to prevent the materials jam, small mouth bottle can quickly bottling.(Optional)
5) Detection function:
No bottle will not count and fill. Automatically remove bottles of filling abnormalities and a certain size broken tablets. Self-diagnose errors and stop working to make alarm at errors.



Electronic Small Capsule Pill And Tablet Counting Machine Automatic Low Noise

Electronic Small Capsule Pill And Tablet Counting Machine Automatic Low Noise
