Easy Operation Oscillating Granulating Machine For Wet Powder With Low Consumption

Easy Operation Oscillating Granulating Machine For Wet Powder With Low Consumption

    • Easy Operation Oscillating Granulating Machine For Wet Powder With Low Consumption
    • Easy Operation Oscillating Granulating Machine For Wet Powder With Low Consumption
    • Easy Operation Oscillating Granulating Machine For Wet Powder With Low Consumption
  • Easy Operation Oscillating Granulating Machine For Wet Powder With Low Consumption

    Product Details:

    Place of Origin: China
    Brand Name: LTPM China
    Certification: CE, GMP
    Model Number: YK

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Packaging Details: Export standard wooden case
    Delivery Time: 25days
    Payment Terms: L/C, T/T
    Supply Ability: 25sets/month
    Contact Now
    Detailed Product Description



    Easy Operation Oscillating Granulating Machine For Wet Powder With Low Consumption





    Quick Detail:





    Capacity: 100-300kg/h

    Power: 3kw

    Material: Stainless steel 304

    Roller rotational speed: 55r/min

    Vacillating perspective: 360°

    Roller diameter: φ160mm

    Overall dimension: 1260*800*1300mm

    Weight: 380kg

    Power Supply: 380V 50HZ Three Phase

    Certificate: CE Certificate





    Description:

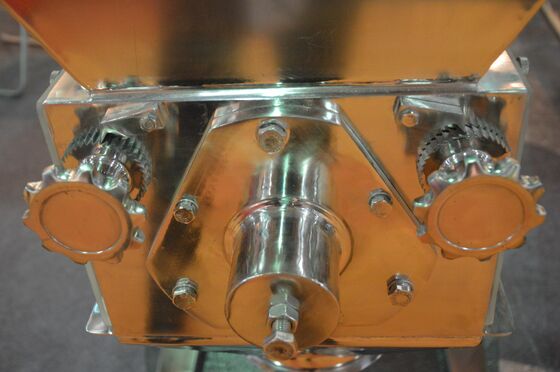

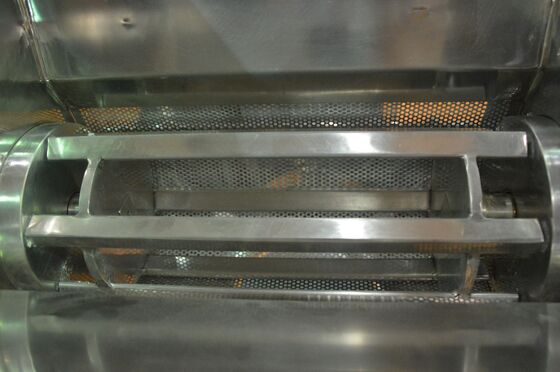

    This machine is special equipment. Under the action of clockwise and counter-clockwise rotation of rooler, damp powder mixture will be forced to pass through sieve and then become granule, Model C is a heavy type and suitable for raw materials having sticky viscosity.

    All parts in this machine are made of stainless steel. Its appearance is beautiful. Its cleaning is very convenient. Its operation is very simple. Its energy consumption is very low.





    Applications:





    This machine is mainly suitable for pharmaceutical industry, chemical industry and foodstuff industry to make granule with different specification. After it is dried through backing, then press it to form all kinds of shaped products. It can also be used for dry block raw material that is crushed and coagulated.





    Specifications:





    Model 160
    Capacity 100-300kg/h
    Power 3kw
    Roller rotational speed 55r/min
    Vacillating perspective 360°
    Roller diameter φ160mm
    Overall dimension 1260*800*1300mm
    Weight 380kg





    Competitive Advantage:





    1. we have seven technicians who gets passport ready to travel all over world to offer service to you.

    2. We have 24hours hot line for Technical Support.

    3. We get 18hours internet line for technical support.

    4. Video camera in workshop to help you adjust and solve machine problem in working situation.

    5. We have Technical Support in below Foreign Cities:

        California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi         (Agent), Dhaka (Agent), Laho
