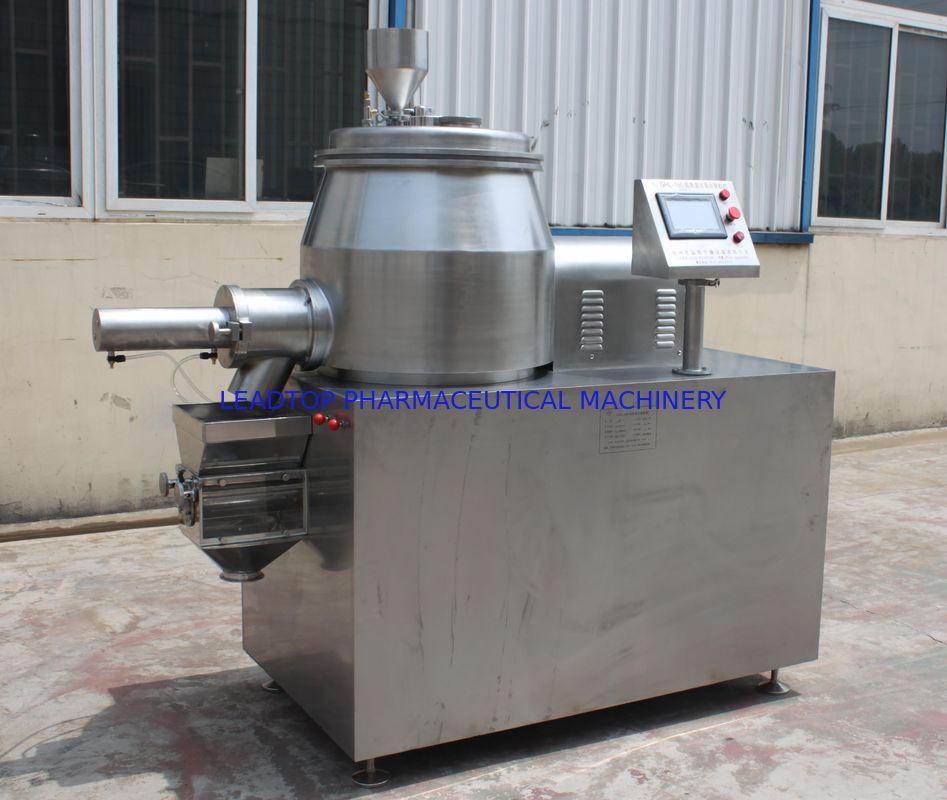

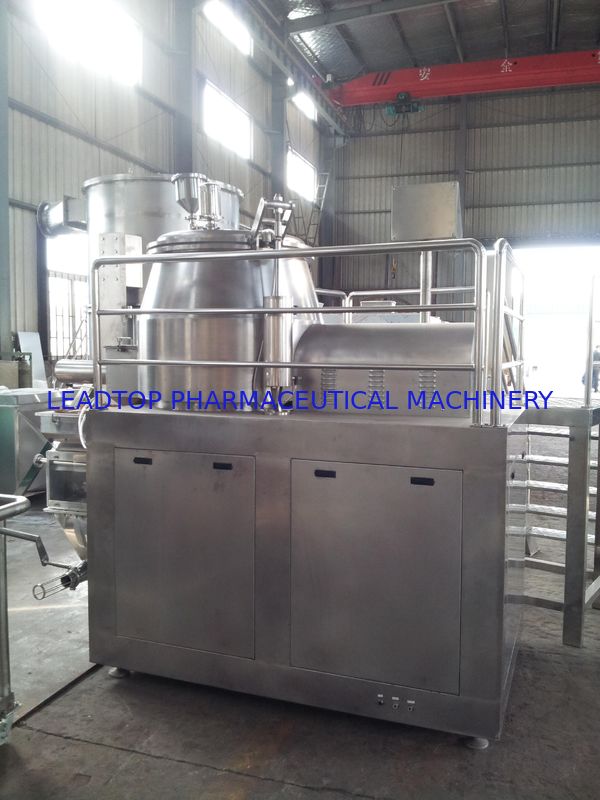

    High Speed Wet Mixing And Granulating Equipment With Siemens Touch Screen

    Product Details:

    Place of Origin: China
    Brand Name: LTPM China
    Certification: CE, GMP
    Model Number: KHL

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Packaging Details: Export standard wooden case
    Delivery Time: 25days
    Payment Terms: L/C, T/T
    Supply Ability: 25sets/month
    Get Best Price Contact Now

    Detail Information

    High Light:

    dry granulation equipment

    ,

    Granulating equipment

    Product Description

    High Speed Wet Mixing And Granulating Equipment With Siemens Touch Screen

    High Speed Wet Mixing And Granulating Machine With Siemens Touch Screen



    Quick Detail:





    Output: 3-350 kg/batch

    Mixing Speed: 80/600rpm

    Material: Stainless steel 304

    Volume: 10-800L

    Cutting speed: 1500/3000

    Power Supply: 380V 50HZ Three Phase

    Certificate: CE Certificate





    Description:



    1.  It is the structure of horizontal cylinder (cone).

    2.  Full sealed driving shaft, to use water when cleaning.

    3.  Fluidization granulation, the finished granules are similar to roundness with good liquidity.

    4.  Compared with traditional process, it can reduce 25% binder and the dry time can be shortened.

    5.  Each batch of materials will be dry-mixed for 2 minutes and be granulated for 1-4 minutes. Compared        with traditional process, it has improved by 4-5 times.

    6.  All the processes of dry-mixing & wet-mixing & granulating are finished in a closed vessel. So that it has      reduced the process and also compiles with GMP standard.

    7.  Whole operation has the strict safety precautions.





    Applications:





    The granulator of wet particles of powder injection binder is in the fields of pharmacy, food, chemical industry, etc.





    Specifications:





    Item Specification
    Name Unit 10 50 150 200 250 300 400 600 800
    Volume L 10 50 150 200 250 300 400 600 800
    Output Kg/ batch 3 15 50 80 100 130 180 280 350
    Mixing speed rpm 300/600 260/400 240/360 180/270 180/270 140/220 106/155 80/120 80/120
    Mixing power Kw 1.5/2.2 4/5.5 6.5/8 9/11 9/11 13/16 18.5/22 22/30 26/34
    Cutting speed rpm

    1500/

    3000

    1500/

    3000

    1500/

    3000

    1500/

    3000

    1500/

    3000

    1500/

    3000

    1500/

    3000

    1500/

    3000

    1500/

    3000

    Cutting speed kw 0.85/1.1 1.3/1.8 2.4/3 4.5/5.5 4.5/5.5 4.5/5.5 6.5/8 9/11 9/11
