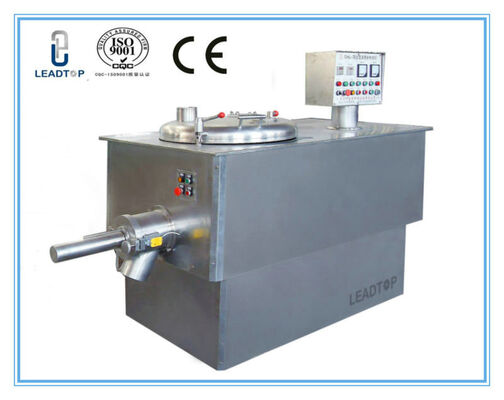

PLC Control Stainless Steel Wet Mixing And Granulating Machine For Pharmacy

PLC Control Stainless Steel Wet Mixing And Granulating Machine For Pharmacy

Product Details:

Place of Origin: China
Brand Name: LTPM China
Certification: CE, GMP
Model Number: KHL

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: 25days
Payment Terms: L/C, T/T
Supply Ability: 25sets/month
Get Best Price Contact Now

Detail Information

High Light:

wet granulation equipment

,

Granulating equipment

Product Description

Quick Detail:





Model No.: KHL

Capacity: 10-800 L

Material: Stainless steel 304

Max Speed: 80-600 rpm

Power Supply: 380V 50HZ Three Phase

Cutting Speed: 1500/3000

Certificate: CE Certificate







Description:

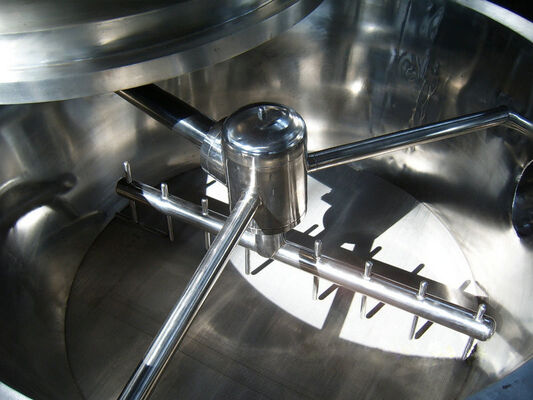

  • It is the structure of horizontal cylinder (cone).
  • Full sealed driving shaft, to use water when cleaning.
  • Fluidization granulation, the finished granules are similar to roundness with good liquidity.
  • Compared with traditional process, it can reduce 25% binder and the dry time can be shortened.
  • Each batch of materials will be dry-mixed for 2 minutes and be granulated for 1-4 minutes. Compared with traditional process, it has improved by 4-5 times.
  • All the processes of dry-mixing & wet-mixing & granulating are finished in a closed vessel. So that it has reduced the process and also compiles with GMP standard.
  • Whole operation has the strict safety precautions.





Applications:





The granulator of wet particles of powder injection binder is in the fields of pharmacy, food, chemical industry, etc.







Specifications:





Item Specification
Name Unit 10 50 150 200 250 300 400 600 800
Volume L 10 50 150 200 250 300 400 600 800
Output Kg/ batch 3 15 50 80 100 130 180 280 350
Mixing speed rpm 300/600 260/400 240/360 180/270 180/270 140/220 106/155 80/120 80/120
Mixing power Kw 1.5/2.2 4/5.5 6.5/8 9/11 9/11 13/16 18.5/22 22/30 26/34
Cutting speed rpm

1500/

3000

1500/

3000

1500/

3000

1500/

3000

1500/

3000

1500/

3000

1500/

3000

1500/

3000

1500/

3000

Cutting speed kw 0.85/1.1 1.3/1.8 2.4/3 4.5/5.5 4.5/5.5 4.5/5.5 6.5/8 9/11 9/11









Competitive Advantage:





1. we have seven technicians who gets passport ready to travel all over world to offer service to you.

2. We have 24hours hot line for Technical Support.

3. We get 18hours internet line for technical support.

4. Video camera in workshop to help you adjust and solve machine problem in working situation.

5. We have Technical Support in below Foreign Cities:

California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Laho
