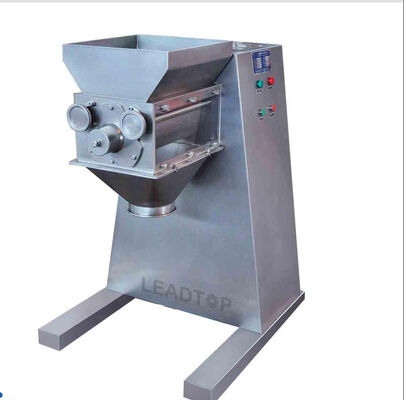

    Micro Computer Control Wed Method Swaying Granulating Machine With Adjustable Mesh Nets

    Product Details:

    Place of Origin: China
    Brand Name: LTPM China
    Certification: CE, GMP
    Model Number: YK

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Packaging Details: Export standard wooden case
    Delivery Time: 25days
    Payment Terms: L/C, T/T
    Supply Ability: 25sets/month
    Get Best Price Contact Now

    Detail Information

    High Light:

    dry granulation equipment

    ,

    Granulating equipment

    Product Description

    Micro Computer Control Wed Method Swaying Granulating Machine With Adjustable Mesh Nets

    Micro Computer Control Wed Method Swaying Granulating Machine with adjustable mesh nets







    Quick Detail:





    Dia. of barrel: 60-160

    Production capacity(kg/h): 20-300

    Material: Stainless steel 304

    Supporting motor: 0.25w-2.2kw

    Weight: 55kg-360kg

    Power Supply: 380V 50HZ Three Phase

    Certificate: CE Certificate





    Description:





    1.This machine makes use of the rolling motion of rotating barrel, granulates the wet powder materials into

        granule by sieve, it also can be directly used to crush the agglomerate material into small granule.

    2. It is not suitable for solid, fluid medium, paste or pulverizing,
    3. The number of meshed sieve should be based on the requirements of the size of granule, decided by       the users.







    Applications:





    In chemical medicine field, it can be used to granulate the mixed powder into granule, and compressed granule into tablet after being dried. It also can be used to granulate the coagulated material that was formed during storage or during chemical processing. In food industry, it can be used to deal with the candy and sugar mixture as well as barley milk products. In other industries, it can be used to granulate such as porcelain and plastic mixtures into forming granules.





    Specifications:







    Model 100 160 250
    Capacity 30-200kg/h 100-300kg/h 300-600kg/h
    Power 1.1kw 3kw 7.5kw
    Roller rotational speed 55r/min 55r/min 55r/min
    Vacillating perspective 360° 360° 360°
    Roller diameter φ120mm φ160mm φ250mm
    Overall dimension 700*400*1050mm 1260*800*1300mm 1500*1000*1600mm
    Weight 280kg 380kg 650kg





    Competitive Advantage:





    1. we have seven technicians who gets passport ready to travel all over world to offer service to you.

    2. We have 24hours hot line for Technical Support.

    3. We get 18hours internet line for technical support.

    4. Video camera in workshop to help you adjust and solve machine problem in working situation.

    5. We have Technical Support in below Foreign Cities:

        California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi         (Agent), Dhaka (Agent), Laho
