    Electronic Heating Type Fluidized Granulating Machine For Pellet Coating / Drying

    Product Details:

    Place of Origin: China
    Brand Name: LTPM China
    Certification: CE, GMP
    Model Number: FL

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Packaging Details: Export standard wooden case
    Delivery Time: 25days
    Payment Terms: L/C, T/T
    Supply Ability: 25sets/month
    Get Best Price Contact Now

    Detail Information

    High Light:

    dry granulation equipment

    ,

    Granulating equipment

    Product Description

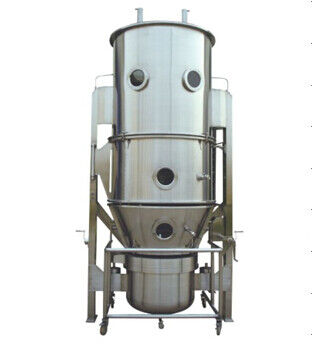

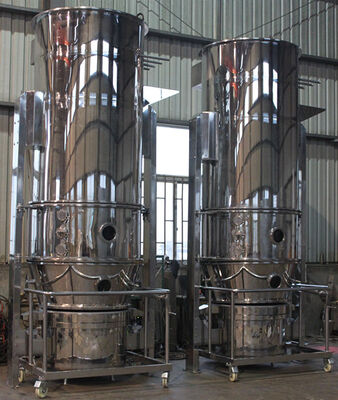

    Electronic Heating Type Fluidized Granulating Machine For Pellet Coating / Drying



    Electronic Heating Type Fluidized Granulating Machine for Pellet Coating and Drying



    Quick Detail:





    Volume (L): 420

    Amount to be treated (kg/per time): 80/160

    Power of fan (kw): 18.5

    Consume of steam 0.4MPa(kg/h): 211

    Consume of compressed air (m3/min): 0.3

    Noise,dB (A): (fan is installed separately) ≤75

    Main machine height (m): 2.2×1.65×3.3

    Power Supply: 380V 50HZ Three Phase

    Certificate: CE Certificate





    Description:





    1. By using powder granulation, to improve the liquidity and thinner dust.

    2. By using powder granulation, to improve solubility property.

    3. Mixing—granulation—drying can be finished in one device (one-step granulation)

    4. To adopt antistatic filtering mediums, to ensure safe operation.

    5. Caking agent atomizer adopts multi-fluid spray gun to maintain uniform spray particles and to increase the rate of qualified products greatly.

    6. No dead-corner of equipment; it is easy and rapid of feeding or discharging materials and clean of washing to satisfy the GMP standard.





    Applications:





    1. Available for both Powder granulation and Granular Coating.

    2. Granulation: Tablet particles, granule particles, capsule particles

    3. Coating: particles, pill covers, color-prepared, slow-release, films, enteric coating

    4. Food granulation and coating Granulated sugar, coffee, cacao powder, cream, juice powder, amino acids, sauce, puffed food

    5. Pesticide, paint pigment, dry granulation Powder, granules, block materials





    Specifications:



    Model 150
    Volume (L) 420
    Amount to be treated (kg/per time) 80/160
    Power of fan (kw) 18.5
    Consume of steam 0.4MPa(kg/h) 211
    Consume of compressed air (m3/min) 0.3
    Noise,dB (A) (fan is installed separately) ≤75
    Main machine height (m) 2.2×1.65×3.3






    Competitive Advantage:





    1. we have seven technicians who gets passport ready to travel all over world to offer service to you.

    2. We have 24hours hot line for Technical Support.

    3. We get 18hours internet line for technical support.

    4. Video camera in workshop to help you adjust and solve machine problem in working situation.

    5. We have Technical Support in below Foreign Cities:

        California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi         (Agent), Dhaka (Agent), Laho
