Place of Origin:
China
Brand Name:
LTPM CHINA
Certification:
CE,SGS
Model Number:
LTRZ-Series
Contact Us

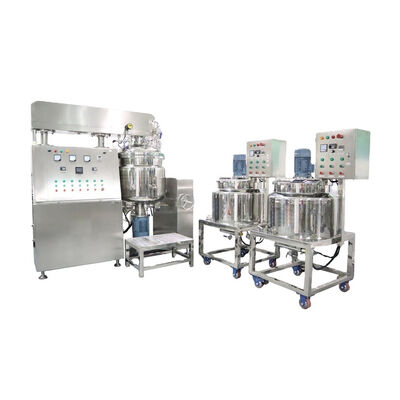

200L Hydraulic Lifting Vacuum Emulsifying Mixer Machine Lotion Mixer Ointment Homogenous Emulsifier Machine
Hydraulic lifting vacuum homogenizing emulsifier mixer is ideal production equipment for manufacturing cosmetics cream, lotion, hand cream, sunscreen ,base cream, ointment, shampoo, toothpaste, etc. This unit consists of three part, water and oil phase are for products pretreatment process, vacuum emulsifying pot is for homogenizing emulsifying products to get fine, smooth products. The products contact part is adopted imported stainless steel 316L, sanitary grade material, meet GMP standard.
Features :
-- Vacuum system : vacuum mixing deforaming , water circulation vacuum pump, to remove the bubbles during mixing process .

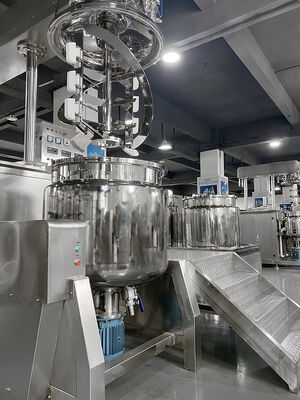

-Lifting system : hydraulic lifting, convenient to clean inside homogenizer,mixer and agitator .
- Mixing type : Double direction blending and high shear homogenizer emulsifier to achieve the higher quality products .
- Movable water and oil phase : flexible manufacturing, can be used for making products separately .
- Control system: Button control ,Each function can be controlled separately. Touch screen control panel is optional.
Specifications:
| Capacity | Volume 200L | ||
| Kettle Cover | Liquid(particle)inlet, sunk material inlet, air inlet with filter, inspect light and sight glass, vacuum port, pressure meter(1 to -0.1 bar), pressure clamp | ||
| Mixing pot | Material | Inner layer: SUS316L thickness: 3mm | |
| Middle layer: SUS304 thickness: 2mm | |||
| Outside layer: SUS304 thickness:2mm | |||
| configuration | Bottom material exhaust, size: 1.5” | ||
| Temp. sensor (0-199℃) | |||
| Electrical heating: 12kw, cooling water inlet | |||
| Stirring system | Homogenizer |
1．Material: SUS316L; standard homogenizer 2. Power: 4 kw/380/50Hz; RPM: 0--4000R/Min |
|
| Stirring scrap and middle stirring | Material: SUS316L,Scrap material: PTFE | ||
|
1. Stirring scrap and middle stirring use the same motor 2,Power:1.5kw/380V/50Hz；RPM:0~86r/min(Frequency control) 3. Stirring scrap and middle stirring rotating the opposite direction |
|||
| Safety: 1. During stirring, the cover can not open, 2. Cover lift can not stirring. | |||
| Vacuum system |
1. Vacuum pump: water recycle, power 2.35kw/380V/50Hz 2. With pressure sensor (during vacuum condition, hydraulic can not open) |
||
| Heating method | Jacket electrical heating/Seam Heating | ||
| Exhaust method | Electric doom and bottom discharge or positive pressure discharge material | ||
| Pressure | Pressure in the pot during working: -0.090 Mpa; Jacket working pressure:0.2 Mpa | ||
| Control box | SUS304 , 1.2mm thickness | ||
| Dimension | 3500mm×2450mm×2250~3150 mm | ||
| Shelf is SS, platform with raised platform and SS guardrail | |||
| Spare parts | One year spare parts and tools | ||
| Guarantee | One year | ||
| Using life | More than 15 years | ||
|

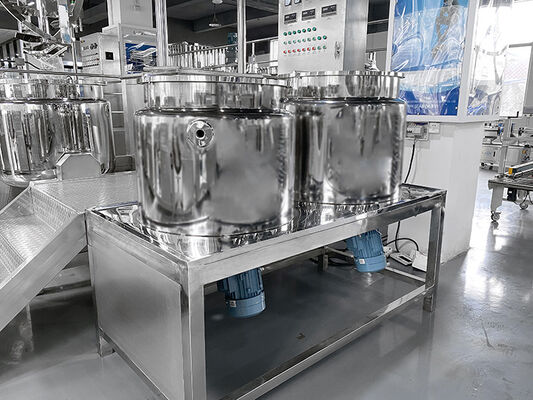

Oil pot |
Design volume | 100L |
| Working capacity | 90L | |
| Stirring power | 1.1kw | |
| Stirring speed | 1400 RPM | |
| Heating power | 12 Kw | |
|
Water pot |
Design volume | 160L |
| Working capacity | 150L | |
| Stirring power | 1.1kw | |
| Stirring speed | 1400 RPM | |
| Heating power | 12 Kw |
Machine Details
Application
