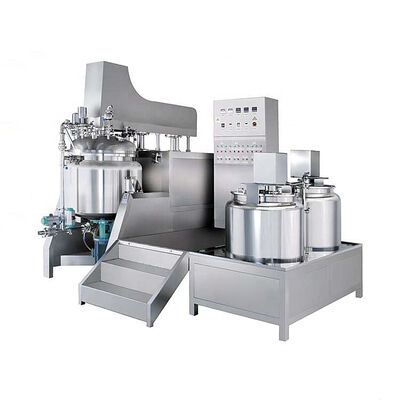

Lotion Vacuum Homogenizing Machine Medicine Processing

Lotion Vacuum Homogenizing Machine Medicine Processing

Vacuum Homogenizing Machine

Lotion Homogenizing Machine

Medicine Processing Homogenizing Machine

Place of Origin:

China

Brand Name:

LTPM CHINA

Certification:

CE,SGS

Model Number:

LTRZ-Series

Contact Us

Request A Quote
Product Details
Mixer Type:
Homogenizer
Application:
Viscous Fluid, Medicine Processing, Chemicals Processing
Voltage:
380V 50HZ
Contact Part Material:
SUS316
Using Life:
More Than 15 Years
Pot Working Pressure:
-0.090 Mpa
Jacket Working Pressure:
0.2Mpa
Spare Parts:
One Year Spare Parts And Tools
Product Description

Cosmetics Manufacturing Plant Whitening Cream Emulsifier Moisturizer Lotion Vacuum Mixing Machine for Cosmetic Industrie



The Vacuum Emulsifying Mixer it adopts Germany combined six-layers shearing teeth structure, which gets dozens of times of emulsification effect every time the homogenizer shears the material. It is suitable for products of various viscosity such as face cream, , ointment, shampoo, etc. It is widely applied for different industry in such industries as food, cosmetics, medicine, grease, daily chemical industry, detergent, pesticide and chemical industry etc.



Feature

•Part of material in contact with material SUS316L , no dead corner , equipment inside and outside surface are mirror polished, it can meet GMP standard .

•Vacuum Homogenizing Emulsification Tank is with CIP cleaning system, avoid the traditional cleaning method , make clean work easier and efficient..

•Mixing system adopts double scrape side mixing and frequency control of motor speed, can meet different process requirements of production

•Vacuum deaeration can make the material meet sanitary aseptic requirements, and can adopt suction feeding, especially the powder can prevent the dust float in the sky.

•According to the process requirement, the tank can heating or cooling material , heating type can be selected according to the customer request steam or electric heating.

•Advanced electric control system adopts PLC control, with true color touch screen, comprehensive monitoring material temperature, stirring and homogeneous speed, time and other data, real-time detect, record and print the relevant data, imput and output related data.



System Components

Vacuum Homogenizing Emulsification Tank include emulsification mixing tank, vacuum system, hydraulic system, electrical control system and operating platform .



Emulsification mixing tank 's accessary :liquid inlet with stainless steel pipeline filter, solid inlet, vacuum port, compressed air inlet ,vacuum rupture , sight glass , temperature sensor , CIP device ,outlet and dustproof sterile breathing apparatus .



Specifications:





Capacity Volume 200L
Kettle Cover Liquid(particle)inlet, sunk material inlet, air inlet with filter, inspect light and sight glass, vacuum port, pressure meter(1 to -0.1 bar), pressure clamp
Mixing pot Material Inner layer: SUS316L thickness: 3mm
Middle layer: SUS304 thickness: 2mm
Outside layer: SUS304 thickness:2mm
configuration Bottom material exhaust, size: 1.5”
Temp. sensor (0-199℃)
Electrical heating: 12kw, cooling water inlet
Stirring system Homogenizer

1.Material: SUS316L; standard homogenizer

2. Power: 4 kw/380/50Hz; RPM: 0--4000R/Min

Stirring scrap and middle stirring Material: SUS316L,Scrap material: PTFE

1. Stirring scrap and middle stirring use the same motor

2,Power:1.5kw/380V/50Hz;RPM:0~86r/min(Frequency control)

3. Stirring scrap and middle stirring rotating the opposite direction

Safety: 1. During stirring, the cover can not open, 2. Cover lift can not stirring.
Vacuum system

1. Vacuum pump: water recycle, power 2.35kw/380V/50Hz

2. With pressure sensor (during vacuum condition, hydraulic can not open)

Heating method Jacket electrical heating/Seam Heating
Exhaust method Electric doom and bottom discharge or positive pressure discharge material
Pressure Pressure in the pot during working: -0.090 Mpa; Jacket working pressure:0.2 Mpa
Control box SUS304 , 1.2mm thickness
Dimension 3500mm×2450mm×2250~3150 mm
Shelf is SS, platform with raised platform and SS guardrail
Spare parts One year spare parts and tools
Guarantee One year
Using life More than 15 years






Oil pot

Design volume 100L
Working capacity 90L
Stirring power 1.1kw
Stirring speed 1400 RPM
Heating power 12 Kw



Water pot

Design volume 160L
Working capacity 150L
Stirring power 1.1kw
Stirring speed 1400 RPM
Heating power 12 Kw


Application

•Suitable for the production of cosmetics, such as ointment, cream, thick sauce, honey and other products, but also suitable for pharmaceutical, food, fine chemical engineering, etc.
