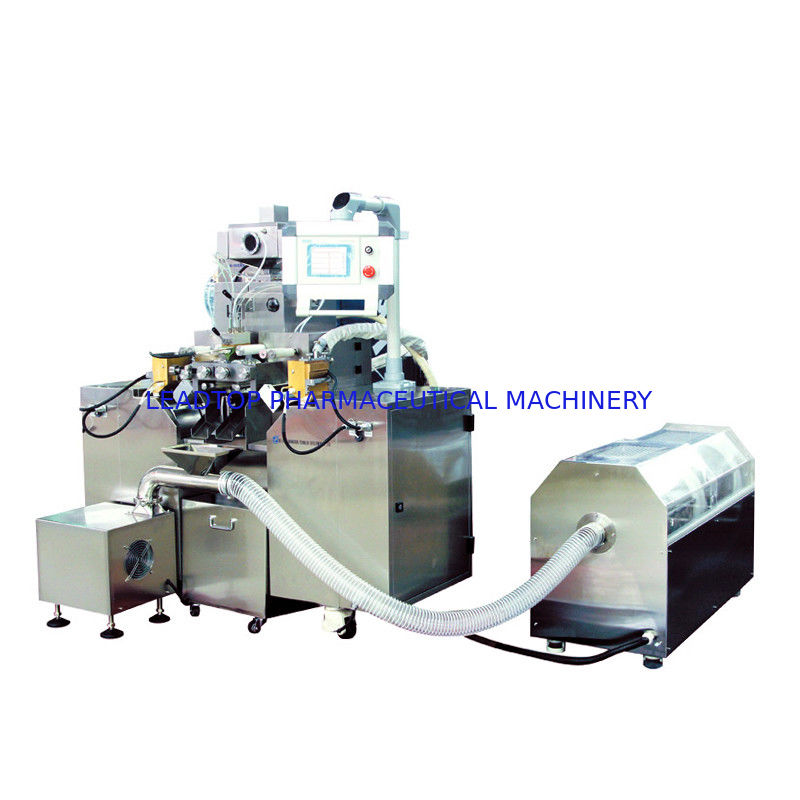

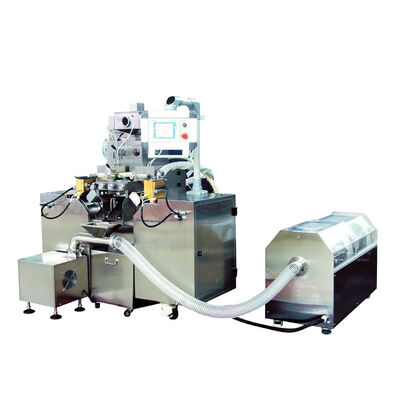

• Roller Die Softgel Encapsulation Machine Paintball Soft Capsule Making Machine
Roller Die Softgel Encapsulation Machine Paintball Soft Capsule Making Machine

Roller Die Softgel Encapsulation Machine Paintball Soft Capsule Making Machine

Product Details:

Place of Origin: China
Brand Name: LTPM China
Certification: CE, GMP
Model Number: LTRJ-110

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: In 25 days after receiving the deposit
Payment Terms: 30% TT as deposit and 70% before shipping
Supply Ability: 25 sets/Month
Get Best Price Contact Now

Detail Information

Rotary Speed Of Die Roll: 0-7rpm Difference Among Filling Volume: ±2%
Power For Whole Machine: 2.3KW Pillar Quantity: 8
Main Body Sizes: 1680×1100×1820 Mm Weight Of Whole Machine: 600Kg
High Light:

Paintball Soft Capsule Making Machine

,

Roller Die Softgel Encapsulation Machine

,

Water Cooling Softgel Encapsulation Machine

Product Description

Roller Die Softgel Encapsulation Machine Paintball Soft Capsule Making Machine

LTRJ-Series Cod Liver Oil Paintball Soft Capsule Making Machine, Softgel Encapsulation Machine



Applications:
Our machine is a new generation of roller die type water cooling type soft gelatin encapsulation machine.
It is optimized designed and precise manufactured on the basis of foreign latest technology.
The main technical index meets the international advanced level and conforms with the GMP standard.
The product is widely used in pharmaceutical, cosmetic, health food and pesticide etc, such as egg shape, fish shape, cylinder, ball shape, calabash shape.
It consists of main machine, gelatin melting tank, insulated gelatin storage tank, electric control cabinet, conveyor, shape/drying rotary cage, colloid mill etc.



Advantages:
1. water cooling of this machine ensure clean environment.
2. Adopting air pressure ensure gelatin storage tank conveys gelatin on the ground, ensure better production environment.
3. The capsule conveyance belt adopt food-grade conveyance belt which is non-toxic, non-sticky, and easy to wash.
4. The shaping and drying rotary cage is made of stainless steel mesh panel with no dead corners and easy to clean. An oil basin under the rotary cage ensures no oil dropping during the
production.
5. It is convenient and prompt that adjusting the clearance of two roller dies by air pressure.





Technical Parameters



ITEM/MODEL LTRJ-110
Rotary speed of die roll 0-7rpm
Supplying Volume for flow single-pillar pistol 0-1ml
Difference among filling volume ±2%
Power for whole machine 2.3KW
Pillar quantity 8
Main Body sizes 1250×900×1820
Weight of whole machine 600Kg




Characterstic
1. Strong product capacity, it can produce 370 million granules (Take the 200C for example, No. 8 oval shape, 3 rpm/minute, 24 hours / day, 300 days/year).
2. Medicine injecting part adopts advanced linearity driving system, and it makes sure that the precision of charging and filling is less than 2%. Capsule package rate is up to 98%.
3. Advanced water cooling system, can avoid to the pollution by air.
4. The gelatin ribbon is lubricated by fine oil supply technology in order to lower the consumption of lubrication oil. If the ribbon is lubricated by vegetable oil, so the capsules produced is free of wash.
5. High quality capsule deferent equipment adopts food conveyer belt authorized by American without poison and adhibition and easy to clean.
6. Optimized designed mould is made of high quality aviation alloy material by high precision numerical control process to ensure the mould's service life.
7. Advanced process and assembly technics make the complete appliance quality stabilization, high working rate, and good shape pill.
8. Adopt automatic system project of supplying capsule and material to reduce workers' labor intensity and improve the working environment, which accords with the requirement of GMP.
9. The liquid level in the gelatin box is fixed automatically in the constant position, and the centigrade mater display the thickness of rubber, which is easy and accurate in adjustment.
10. The power of main motor is 1.1KW, which can avoid the phenomenon of insufficient driving power when the content is rather thick ( take 200 model for example).
11. Adopt the nonpoisonous materials to human body or now dropping matters into medicine liquid in this machine and medicine liquid, and the touching parts for gelatin.

Roller Die Softgel Encapsulation Machine Paintball Soft Capsule Making Machine 0



Roller Die Softgel Encapsulation Machine Paintball Soft Capsule Making Machine 1

Roller Die Softgel Encapsulation Machine Paintball Soft Capsule Making Machine 2

Roller Die Softgel Encapsulation Machine Paintball Soft Capsule Making Machine 3
