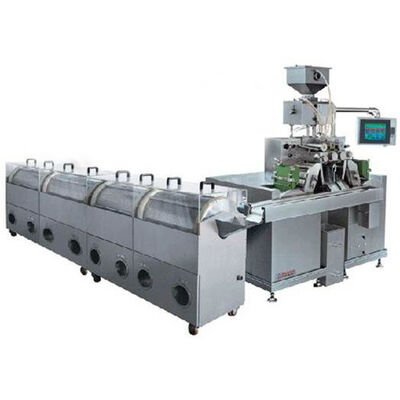

2.3KW 7rpm Pharmaceutical Softgel Encapsulation Machine

Model LTRJ series soft-capsule production line is a new genration of rolling-mold water-cooled soft-capsule line optimally designed and finely manufatured on the basis of foreign latest technology.

Its main technical specifications reach the international advanced level and conform to standard GMP.

Model RG series soft-capsule production line consists of the gelatin-melting pot,thermal-insulated gelatin-storage pot,electrial contronl panel,main machine conveyor,setting-drying rotary-cage,ruptured-gel recovery unit,and colloid mill. It works under the following principles.The oily or gelatin-insolube liquids,pastesmor plasters(e.g.extract form Chinese Medicine Herbs)are injected into between two rolling gelatin skins in a given quantity,cut,and then formed through two rolling molds into various-shaped soft-capsules,such as egg-shape,fish-shape,cylindrical shape ball-shape and calabash,These products are widely used in many industries such as medicine,cosmetics,health goods and pesticides.

This production line offers the following ten merits:

The water-cooled models eliminate the dust contamination resulted from the air-cooling.

In comparison with 6-inch model the optimized rolling-models increase the output by 30%-40% and meanwhile remarkably enhance the utilization ratio of gelatin.

The gelatin is pneumatically conveyed from the thermal-insulated gelatin-storage pot through the ground,which improves the production environment.

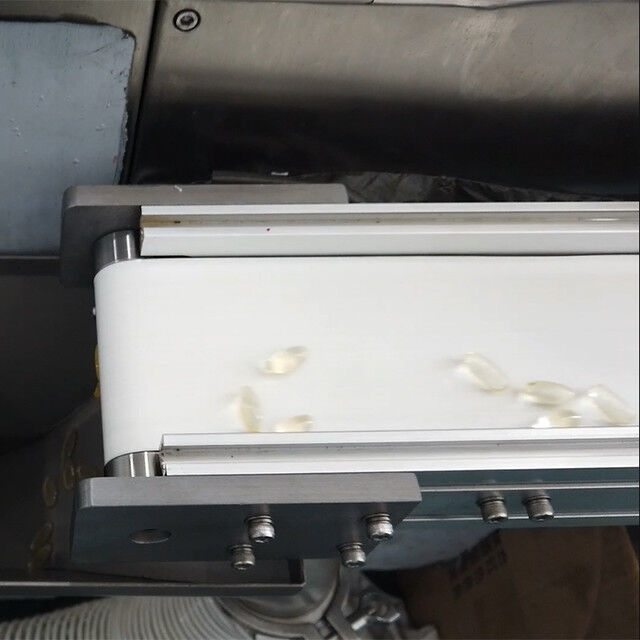

The food-grade conveyance belt produced by Lexno Corporation(USA)(FDA an approved)is used for conveyance of capsule,which is non-toxic,non-sticky,and easily washable.

The setting-drying rotary cage is made of stainless steel expanded sheet,which is free of dead corners and easily washable.An oil pan is placed under the rotary cage to ensure a working environment free of oil drops.

All the electric elements are imported,the accompanied 10-station and 14-stain injection rod fully utulizes the width of molds and enhances the gelatin-utilization ratio and output.

The optimal-designed injector extends the range of consistency of medicine solution.

The improved capule-peeling unit minimizes the probability if wrapping of the waste gelatin skin onto the gelatinpeeling rod.

Except that the injector,the spreading box and the rolling-mold conveyance bely are made of special materials,the parts contacting with medicine are made of 304 or 316 superior stainless steel and absolutely conform to standard GMP.
