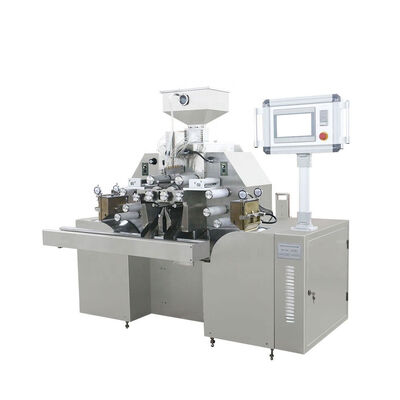

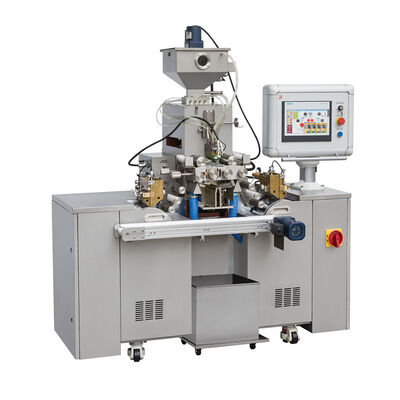

Vitamin Softgel Encapsulation Machine 7rpm For Gelatin

Vitamin Softgel Encapsulation Machine 7rpm For Gelatin

Product Details:

Place of Origin: China
Brand Name: LTPM China
Certification: CE, GMP
Model Number: LTRJ-110

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: In 25 days after receiving the deposit
Payment Terms: 30% TT as deposit and 70% before shipping
Supply Ability: 25 sets/Month
Get Best Price Contact Now

Detail Information

Rotary Speed Of Die Roll: 0-7rpm Difference Among Filling Volume: ±2%
Power For Whole Machine: 2.3KW Pillar Quantity: 8
Main Body Sizes: 1680×1100×1820 Mm Weight Of Whole Machine: 600Kg
Application: Capsule,softgel Manufacturing Type: Softgel Encapsulation
High Light:

Vitamin Softgel Encapsulation Machine

,

Gelatin Softgel Encapsulation Machine

,

Water Cooling Softgel Encapsulation Machine

Product Description

Vitamin Softgel Encapsulation Machine 7rpm For Gelatin

Softgel encapsulation machine can quantificationally inject the oil, mixing suspension and pasty mass into the capsule to form all kinds of softgel encapsulation with different size, shape and color. Because of the merits of high speed disintegration, easy to oral, hard to oxygenation, easy to store and take, the softgel encapsulation is welcomed by more and more customers. Owing to the high productivity, charging exactly, auality stabilization, high finished product rate, it is faoured by more and more manufacturers and used in the fields of medicine, health products, cosmetic and paintball and so on.This product has passed provincial-level appreise of new product and the certification of EU, adopted two items of patent technology in manufacturing with exquisite workmanship.



Characterstic:
1. Strong product capacity, it can produce 370 million granules (Take the 200C for example, No. 8 oval shape, 3 rpm/minute, 24 hours / day, 300 days/year).
2. Medicine injecting part adopts advanced linearity driving system, and it makes sure that the precision of charging and filling is less than 2%. Capsule package rate is up to 98%.
3. Advanced water cooling system, can avoid to the pollution by air.
4. The gelatin ribbon is lubricated by fine oil supply technology in order to lower the consumption of lubrication oil. If the ribbon is lubricated by vegetable oil, so the capsules produced is free of wash.
5. High quality capsule deferent equipment adopts food conveyer belt authorized by American,without poison and adhibition and easy to clean.
6. Optimized designed mould is made of high quality aviation alloy material by high precision numerical control process to ensure the mould's service life.
7. Advanced process and assembly technics make the complete appliance quality stabilization, high working rate, and good shape pill.
8. Adopt automatic system project of supplying capsule and material to reduce workers' labor intensity and improve the working environment, which accords with the requirement of GMP.
9. The liquid level in the gelatin box is fixed automatically in the constant position, and the centigrade mater display the thickness of rubber, which is easy and accurate in adjustment.
10. The power of main motor is 1.1KW, which can avoid the phenomenon of insufficient driving power when the content is rather thick ( take 200 model for example).
11. Adopt the nonpoisonous materials to human body or now dropping matters into medicine liquid in this machine and medicine liquid, and the touching parts for gelatin.

Vitamin Softgel Encapsulation Machine 7rpm For Gelatin 0

Vitamin Softgel Encapsulation Machine 7rpm For Gelatin 1



Advantage:

1. water cooling of this machine ensure clean environment.

2. Adopting air pressure ensure gelatin storage tank conveys gelatin on the ground, ensure better production environment.

3. The capsule conveyance belt adopt food-grade conveyance belt which is non-toxic, non-sticky, and easy to wash.

4. The shaping and drying rotary cage is made of stainless steel mesh panel with no dead corners and easy to clean. An oil basin under the rotary cage ensures no oil dropping during the production.

5. It is convenient and prompt that adjusting the clearance of two roller dies by air pressure.

Vitamin Softgel Encapsulation Machine 7rpm For Gelatin 2



Technical Parameters


ITEM/MODEL LTRJ-110
Rotary speed of die roll 0-7rpm
Supplying Volume for flow single-pillar pistol 0-1ml
Difference among filling volume ±2%
Power for whole machine 2.3KW
Pillar quantity 8
Main Body sizes 1250×900×1820
Weight of whole machine 600Kg

Machine Details
Vitamin Softgel Encapsulation Machine 7rpm For Gelatin 3
Vitamin Softgel Encapsulation Machine 7rpm For Gelatin 4Vitamin Softgel Encapsulation Machine 7rpm For Gelatin 5
Vitamin Softgel Encapsulation Machine 7rpm For Gelatin 6


Product
Vitamin Softgel Encapsulation Machine 7rpm For Gelatin 7
