Sugar Tablet Granule Film Coating Laminating Machine Heat Transfer

BG-Series ISO GMP CE Heat Transfer FOOD Sugar Tablet Granule Film Coating Laminating Machine Price

Schematic Principle
This machine adopts new Micro-computer PLC and Temperature control system, touch Screen display, simple operation, high efficiency and energy saving, clean and safe, according with the requirement of GMP, it is widely used in Pharmaceutical and Food industries for tablet, pill, candy, chocolate etc to make solvent film coating, organic film coating, sugar coating. It is adapted with imported stainless steel, with anti-explosion motor, frequency governor, with cleaning device, computer control, controllable program function, touching screen display.
The core will make orbital motion continuously in rotary drum sieve which is the clean and sealed, under the action of plate mixer, turning freely, exchanging fluently, follow the process flow and rational parameter, coating automatically. While the hot air through the core and discharged from the bottom of the holes under the negative pressure of the air exhauster to make thecoating medium drying quickly and the surface of coating firm and smooth.

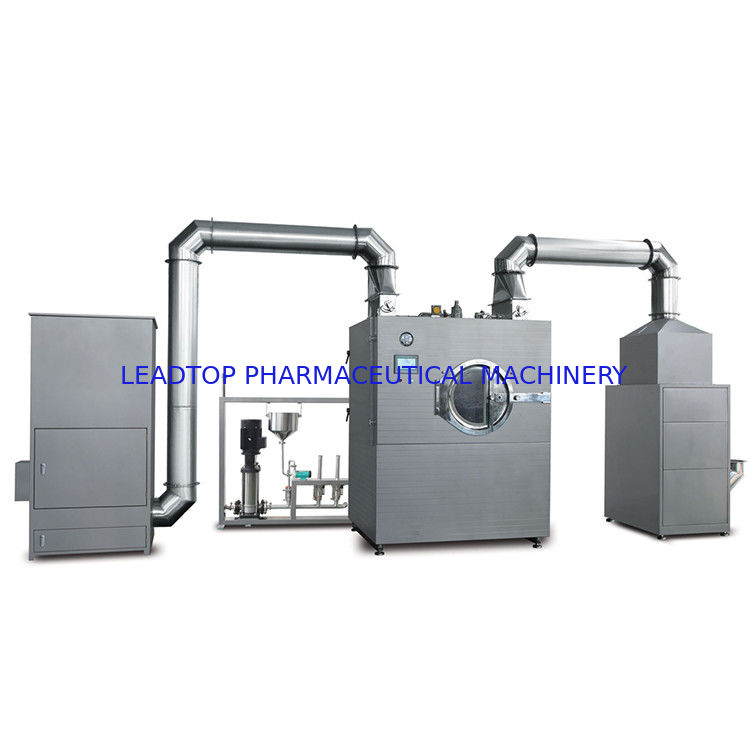

Main Structure

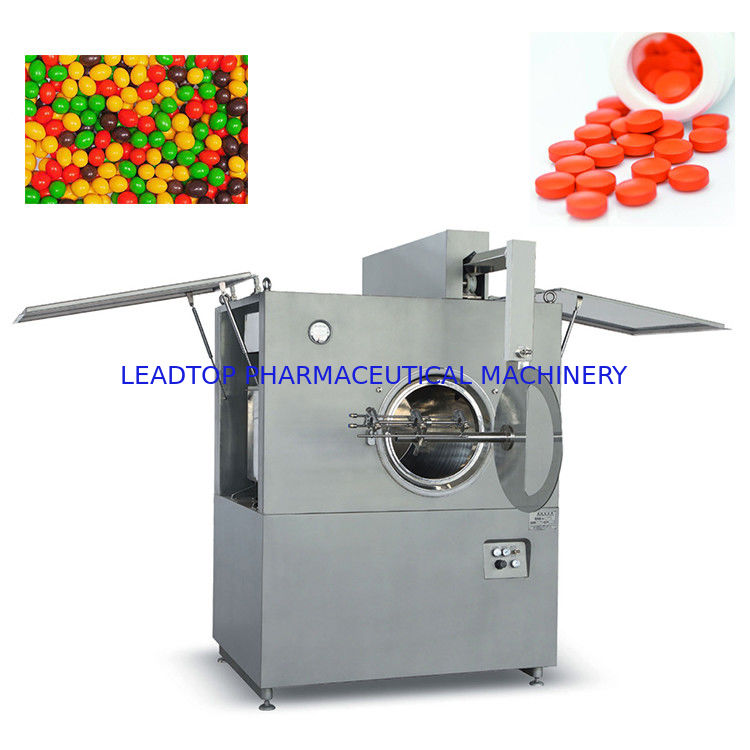

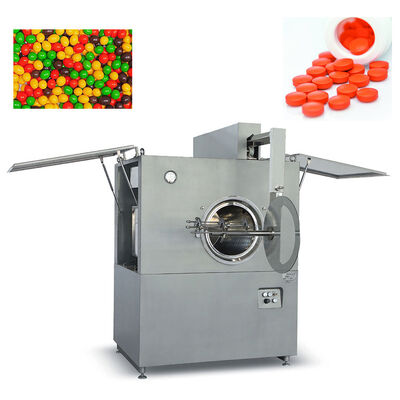

1. Main Machine: During the film coating process in the major machine, it shows such features just as no dust fly off and no syrup splash, operation condition improvement, little cross contamination to tablets, simple coating process, coating time shortening as well as high production efficiency etc. The main machine adopts programmable controller (PLC) and touch screen system, which can adjust inlet air temperature, rotational speed and other technological parameters automatically, making no difference between various batches products with the same technical parameter.

2. Hot Air Cabinet: Firstly, air inhaled in through the centrifugal fan should be purified up to the 100,000 level after three times filtration, involving primary filtration, medium filtration and high filtration, then be heated by heat exchanger (steam or electric heating), finally, be blown to the drum of main machine to dry the tablets, the noise of which is less than 70 decibel.

3. Air Exhaust Cabinet: Used for pumping a ir out of drum form the main machine, making the working area under the negative pressure and equipped with filtrating device, dust removal system, and dust collecting system. The operating noise of the whole cabinet is less than 90 decibel.

4. Air Spray System: The system is made up with peristaltic pump, air spray gun (imported from Japan) and material connecting line, used for atomizing coating mediums. When coating sugar film, it should be equipped with the dropper.

5. Electric heating thermostatic stirrer: It is used for preparing the film coating mediums, composed by liquid touchable plate, electrical heating system, pneumatically motorized stirring system and so on, meet GMP standards.




Technical Parameter



Application
Automatic High Efficient Pharmaceutical Tablet Sugar Film Coater Coating Machine can be widely used for coating various tablets, pills and sweets with organic film, water soluble film and sugar film etc. In such fields as of pharmaceutical, food and biological products etc. and it has following characteristics such as good appearance in design, high efficiency, low energy consumption and in accordance with GMP.
