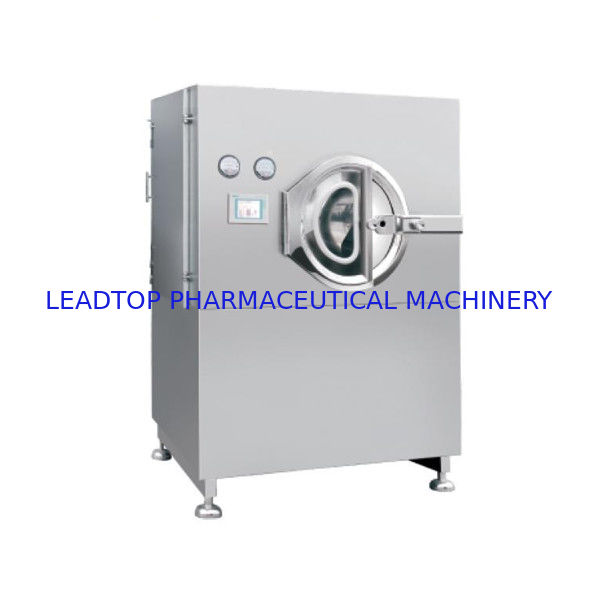

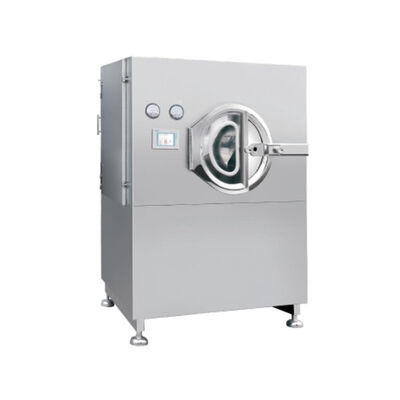

Intelligent Tablet Film Coating Machine 2.8kw For Pharmaceuticals

Intelligent Tablet Film Coating Machine 2.8kw For Pharmaceuticals

Intelligent Tablet Film Coating Machine

Membrane Tablet Film Coating Machine

Tablet Film Coating Machine 2.8kw

Place of Origin:

China

Brand Name:

LTPM China

Certification:

CE

Model Number:

BG-40

Contact Us

Request A Quote
Product Details
Max. Tablet Volume:
40Kg / Time
Sugar Coating Drum Speed:
2-18 R.p.m
Host Machine Motor Power:
1.1 Kw
Exhaust Blower Air Flow:
5268 M3/h
Air Heater Temp.-adjust Range:
~ 80 ℃
Power:
2.8kw
Product Description

BG-Series Pharmaceutical High Efficiency Intelligent Candy Chocolate Tablet Film Coating Machine



Purpose
This equipment is widely applied to sugarcoating and membrane coating for Chinese/western medicine tablets in pharmaceutical industry as well as the coating for candy pills, chocolates in food industry.





Principle
Inside totally-enclosed clean rotary screen mesh roller, tablet cores move continuously according to complicated track under the action of deflector type stirring paddle. According to parameters and procedures of set process, coating media are automatically sprayed onto the surface of tablet cores (adopt dripping technique for sugarcoat media)through spray gun atomization via automatic control of PLC programmable controller. Meanwhile, the clean hot air supplied by hot air cabinet penetrates tablet cores, and is discharged by air suction device via the mesh holes on the bottom of roller to dry tablet core membranes quickly and evenly, and form solid smooth surface coating.

Intelligent Tablet Film Coating Machine 2.8kw For Pharmaceuticals 0

Intelligent Tablet Film Coating Machine 2.8kw For Pharmaceuticals 1







Technical Parameter

Item Model BG-5 BG-10 BG-40
Maximum capacity(kg) 5 10 40
Roller speed adjust range 2-25 2-25 2-20
Main machine outline dimension(LxWxH) 900x800x1700 900x840x1800 1080x900x2000
Main machine motor power 0.55 0.55 1.1
Hot air cabinet motor power 0.37 0.37 0.75
Exhaust cabinet motor Power 0.75 0.75 2.2
Exhaust cabinet air supply volume 800 900 2500





Intelligent Tablet Film Coating Machine 2.8kw For Pharmaceuticals 2






Machine Details

Intelligent Tablet Film Coating Machine 2.8kw For Pharmaceuticals 3



Features

1,main machine : PLC man-machine interface , high-efficiency , save energy source , no dust , no pollution,Easy to operate and wash , small noisy . pills are clothed : the clothing dry , symmetrical , hard , thick , Smooth
2,hot-air dryer : passed three steps to filtrate of primary-Middle – senior . hot-air clean level has reached 100 thousand .
3,exhaust blower : has the devices of shockproof and automatic dust removing
4,adopt japan import spray gun (thrie)
5,grout mixer can
6,burette
7,strong electrical tank
8,wind pipe : 10M
9,this installment accord to “GMP” standard
10,this installment have passed provincial science and technology checkup
