• High Efficient Pan Tablet Sugar Coating Machine BG Series
  • High Efficient Pan Tablet Sugar Coating Machine BG Series
High Efficient Pan Tablet Sugar Coating Machine BG Series

High Efficient Pan Tablet Sugar Coating Machine BG Series

Product Details:

Place of Origin: China
Brand Name: LTPM China
Certification: CE
Model Number: BG-40

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: In 30 days after receiving the deposit
Payment Terms: 30% TT as deposit and 70% before shipping
Supply Ability: 25 sets/Month
Get Best Price Contact Now

Detail Information

Max. Tablet Volume: 40Kg / Time Sugar Coating Drum Speed: 2-18 R.p.m
Host Machine Motor Power: 1.1 Kw Exhaust Blower Air Flow: 5268 M3/h
Air Heater Temp.-adjust Range: ~ 80 ℃ Power: 2.8kw
High Light:

Pan Tablet Sugar Coating Machine

,

High Efficient Sugar Coating Machine

,

BG Series Sugar Coating Machine

Product Description

High Efficient Pan Tablet Sugar Coating Machine BG Series

BG Series High-Efficient Pan Tablet Sugar Film Coater Coating Machine



APPLICATION

The BG coating machine is mainly used in medicine and food industries. Meeting GMP requirements, it is a kind of mechanically and electrically integrated coating equipment with high efficiency, energy conservation, good safety and good cleanliness for organic film coating, water soluble coating, dripping pill coating, sugar coating, chocolate and candy coating of tablets, pills and candies.





PRINCIPLE

Under the rotation action of the coating roller, the tablets or pills to be coated make continuous movement in the roller. The peristaltic pump conveys the coating media to the spray gun for spraying them on the surfaces of the tablets or pills to be coated. Under negative pressure, the inlet air handling unit supplies clean hot air to the tablet bed according to the set procedures and process parameters to dry the tablets or pills. The hot air is discharged from the outlet air handing unit at the bottom of the layer of tablets or pills, so that the coating media sprayed on the tablets or pills rapidly form solid, dense, flat and smooth film to complete the coating operation.


CAN MAKE AND DISPOSE FOR USERS SEPARATELY:
Type production lot and write down the device.
The whole automatics washed in place.
Open and close both sides and seal the door device automatically.
The color rejects the control panel device.



FILM COATING PRINCIPLE:
This slice of core is put into the clean and airtight film coating machine and rotated in the cylinder under streamline shape water conservancy diversion board function, roll ceaselessly, make a scene of core smooth in upset, frequently exchange. Film coating medium in paddle barrel, through compress air transport or wriggle the pump not to transport, from a slice of core rolling, and arrange under the function of the wind in the
hot wind at the same time, make the capsule medium dry fast on a slice of core surface, from the firm and smooth surface capsule membrane, then produce material automatically after reaching the technological requirement...



Technical Parameter

Item Model BG-5 BG-10 BG-40
Maximum capacity(kg) 5 10 40
Roller speed adjust range 2-25 2-25 2-20
Main machine outline dimension(LxWxH) 900x800x1700 900x840x1800 1080x900x2000
Main machine motor power 0.55 0.55 1.1
Hot air cabinet motor power 0.37 0.37 0.75
Exhaust cabinet motor Power 0.75 0.75 2.2
Exhaust cabinet air supply volume 800 900 2500

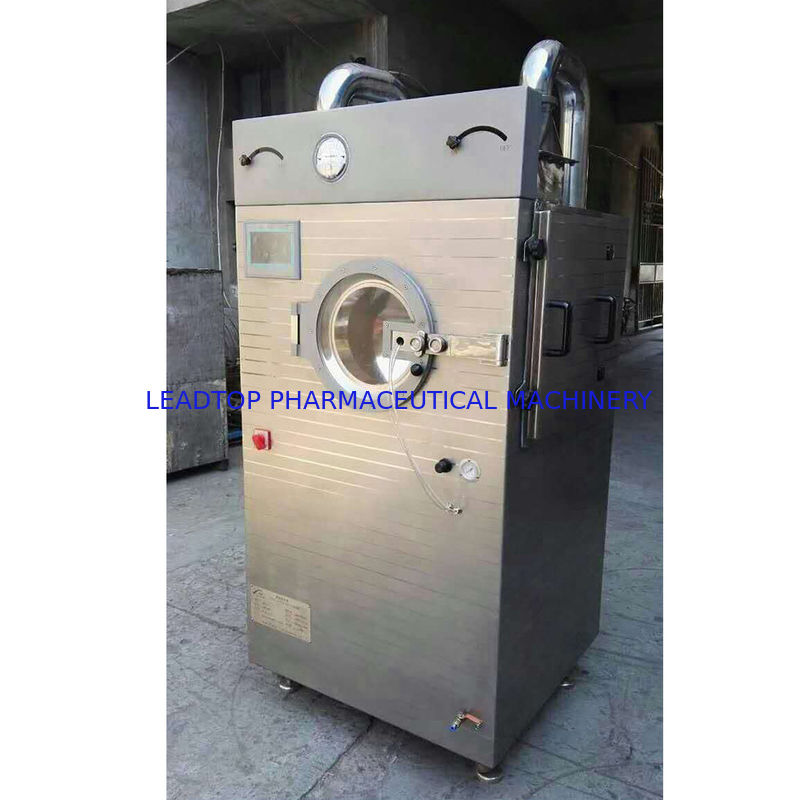

High Efficient Pan Tablet Sugar Coating Machine BG Series 0

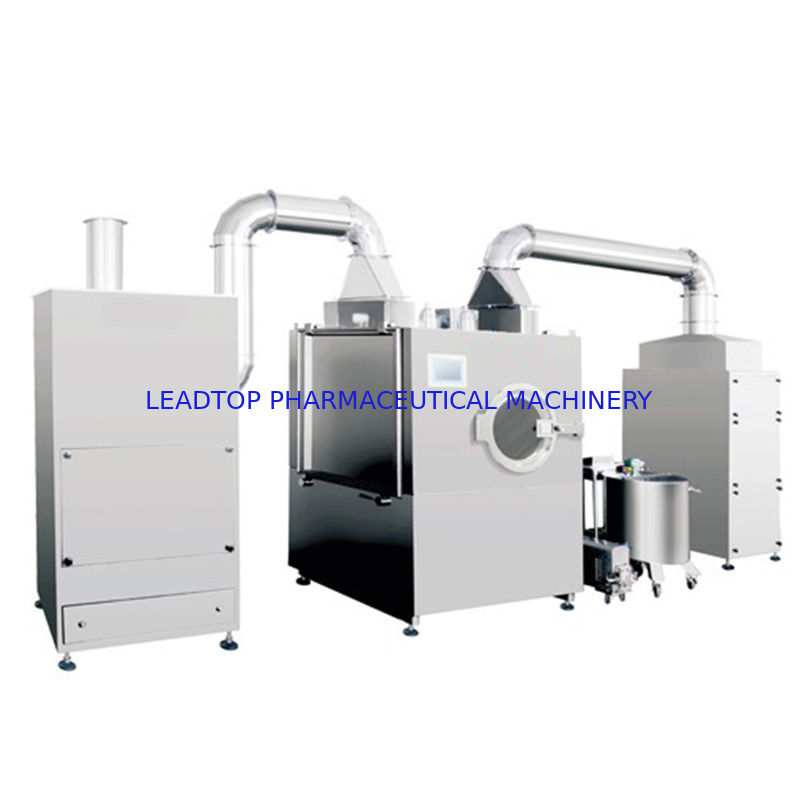

High Efficient Pan Tablet Sugar Coating Machine BG Series 1
