Place of Origin:
China
Brand Name:
LTPM China
Certification:
CE
Model Number:
BG-80
Contact Us

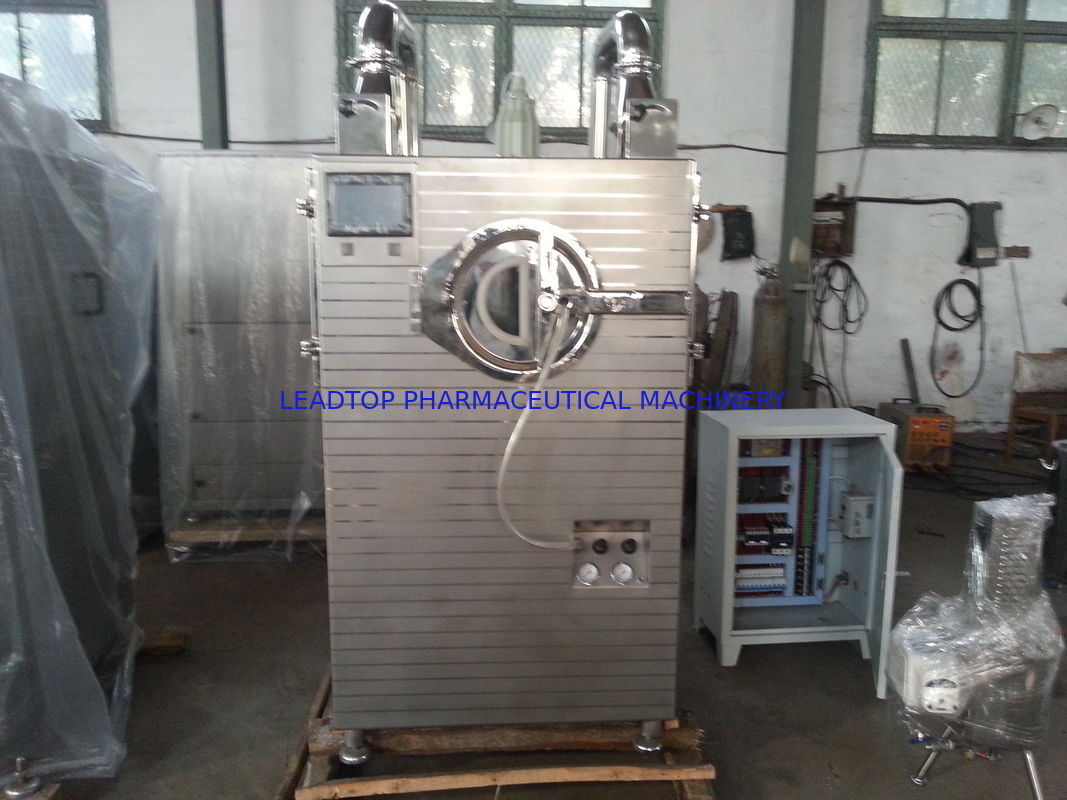

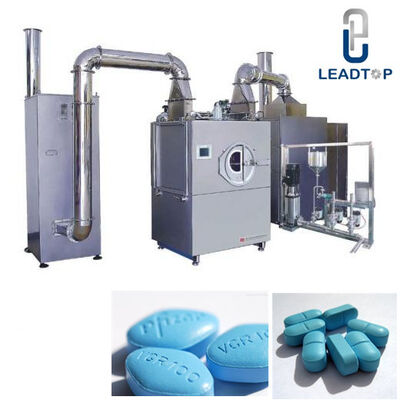

High Efficiency Tablet Film Coating Machine In Pharmaceutical Industry
Simple Instruction:
The machine can be used for coating various tablets, pills and sweets with organic film, water-soluble film and sugar film, etc. And it has such characteristics as high efficiency, low energy consumption and small floor area, etc. And it can be widely used for coating various tablets, pills and sweets with organic film, water-soluble film and sugar film etc. In such fields as of pharmaceutical, food and biological products etc.
And it has such characteristics as good appearance in design ,high efficiency, low energy consumption and small floor area, etc.
This machine is made of high-quality stainless steel elaborately and meets the The tablets make complicated and constant track movement with easy and smooth turning and frequent exchanging in the clean and closed rotational cylinder of the film coating machine. And it can automatically spray coating medium according to the process flow and reasonable process parameters. The hot air exhausted through the bottom of the tablets under the effect of air exhaust and negative pressure so as to make coating medium dry quickly on the surfaces of the tablets and form a firm, fine and close and smooth surface film.
Feature:
Main Technical Data:
Items Model | BG-80 | |||
Max. tablet volume | 80kg/batch | |||
Sugar coating drum dia. | F930mm | |||
Feed inlet dia | F380mm | |||
Sugar coating drum speed | 0-19 r.p.m | |||
Host machine motor power | 1.5 kw | |||
Exhaust cabinet motor power | 3 kw | |||
Exhaust blower air flow | 5268 m3/h | |||
Hot air cabinet motor power | 1.1 kw | |||
Air heater air flow | 1685 m3/h | |||
Air heater temp.-adjust range | ~ 80 °C | |||
Hot air cleanness | 100000 level | |||
Peristaltic pump or lobe pump motor power | 0.37kw (0.55kw) | |||
Silicon rubber hose | F 9~16mm | |||
External dimensions of host machine |
1370*1030*1950 mm |
|||
Host machine weight | 600kg | |||
External dimensions of hot air cabinet |
900x800x2170 mm |
|||
Hot air cabinet weight | 450kg | |||
External dimensions of exhaust cabinet |
1110x820x2000 mm |
|||
Exhaust cabinet weight | 500kg | |||
External condition
|
Clean Air |
Pressure | ³0.4Mpa | |
Air consumption. | 0.7m3 /min. | |||
Water source |
Pressure | ³0.15Mpa | ||
Pipe diameter | 1’’ | |||
Steam heating type |
Steam | Pressure | ³0.4Mpa | |
Air consumption. | 80kg/h | |||
Power source |
3 phase and 5 lines 6 kw |
|||
Electric heating type | Power source | 3 phase and 5 lines 32 kw |
Working Process:
1. 24*7days hotline service.
2. Technology Support: we offer engineer at site training and intsllation service all over the world.
3. Documentation: DQ, IQ, OQ, PQ, FAT, SAT, Manual, etc for GMP validation purpose.
4. One year spare parts Free Guarantee
5. Production Solution Suggestion
LTPM CHINA Your Best Pharmaceutical Production Solution ! Welcome to contact us for more information.
