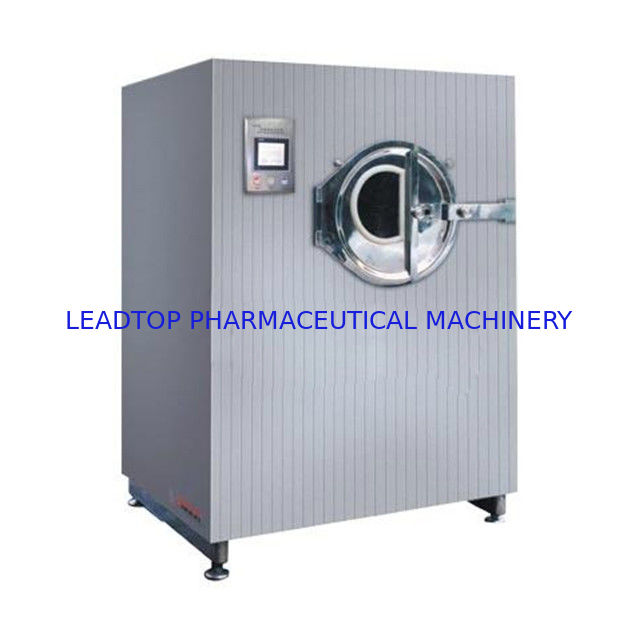

High Efficiency Automatic Tablet Film Coating Machine Plc Control System

High Efficiency Automatic Tablet Film Coating Machine Plc Control System

sugar coating machine

sugar coating equipment

Place of Origin:

China

Brand Name:

LTPM China

Certification:

CE

Model Number:

BG-40

Contact Us

Request A Quote
Product Details
Capacity:
40kg/batch
Control:
PLC Control System
Spray Gun:
Japan Imported Brand
Power Supply:
380V 50hz Three Phase
Material Cosist:
Ss304 (SS316 Is Optional)
Power:
2.8kw
Product Description



Product Description:

The machine can be used for coating various tablets, pills and sweets with organic film, water-soluble film and sugar film, etc. And it has such characteristics as high efficiency, low energy consumption and small floor area, etc. And it can be widely used for coating various tablets, pills and sweets with organic film, water-soluble film and sugar film etc. In such fields as of pharmaceutical, food and biological products etc.
And it has such characteristics as good appearance in design ,high efficiency, low energy consumption and small floor area, etc.

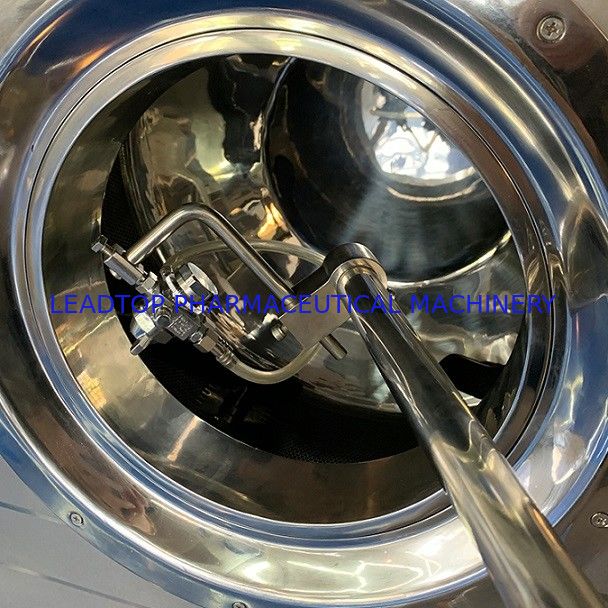

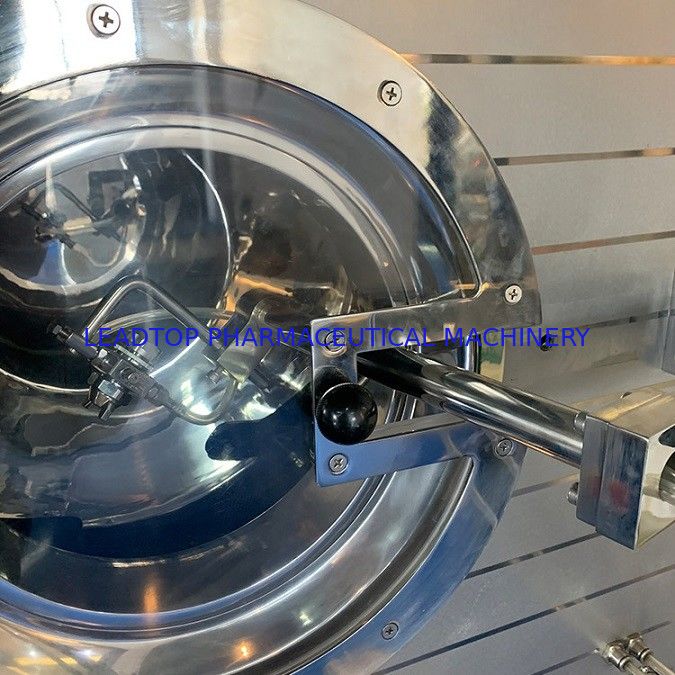

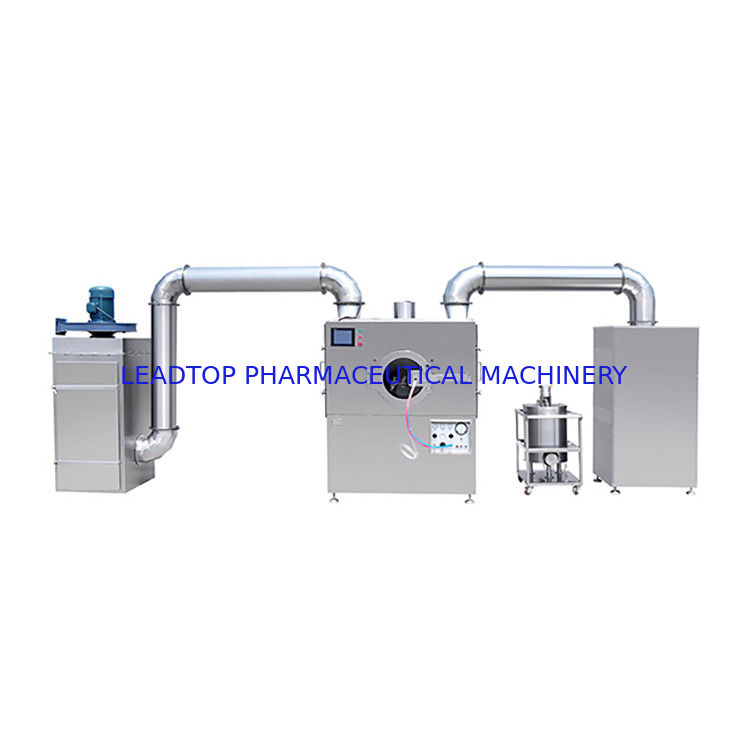

This machine is made of high-quality stainless steel elaborately and meets the The tablets make complicated and constant track movement with easy and smooth turning and frequent exchanging in the clean and closed rotational cylinder of the film coating machine. And it can automatically spray coating medium according to the process flow and reasonable process parameters. The hot air exhausted through the bottom of the tablets under the effect of air exhaust and negative pressure so as to make coating medium dry quickly on the surfaces of the tablets and form a firm, fine and close and smooth surface film.



Technical Data:



Items Model BG-40
Max. tablet volume 40Kg / time
Sugar coating drum dia. F820mm
Feed inlet dia F340mm
Sugar coating drum speed 2-18 r.p.m
Host machine motor power 1.1 kw
Exhaust cabinet motor power 2.2 kw
Exhaust blower air flow 5268 m3/h
Hot air cabinet motor power 1.1 kw
Air heater air flow 1685 m3/h
Air heater temp.-adjust range ~ 80 ℃
Hot air cleanness 100000 level
Peristaltic pump or lobe pump motor power 0.37kw (0.55kw)
Silicon rubber hose F 9~16mm
External dimensions of host machine

1200*900*1570

mm

Host machine weight 600kg
External dimensions of hot air cabinet

900x900x2000

mm

Hot air cabinet weight 450kg
External dimensions of exhaust cabinet

910x910x1700

mm

Exhaust cabinet weight 500kg

External condition





Clean

Air

Pressure ³0.4Mpa
Air consumption. 0.7m3 /min.



Water

source

Pressure ³0.15Mpa
Pipe dia 1’’



Steam

heating

type

Steam Pressure ³0.4Mpa
Air consumption. 80kg/h
Power source

3 phase and 5 lines

5 kw





Electric heating type





Power source



3 phase and 5 lines12 kw

-2
