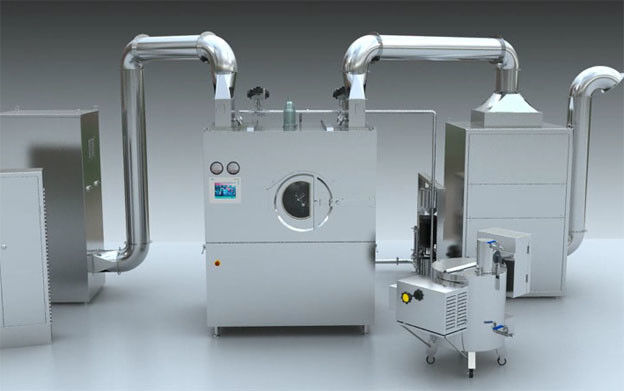

BG -150E Tablet Coating Pharmaceutical Processing Equipment Of Stainless Steel
This film coating machine can be used for coating various tablets, pills and sweets with organic film, water-soluble film and sugar film, etc. And it has such characteristics as high efficiency, low energy consumption and small floor area, etc. And it can be widely used for coating various tablets, pills and sweets with organic film, water-soluble film and sugar film etc. In such fields as of pharmaceutical, food and biological products etc.
And it has such characteristics as good appearance in design ,high efficiency, low energy consumption and small floor area, etc.
This machine is made of high-quality stainless steel elaborately and meets the cGMP, CE standard.

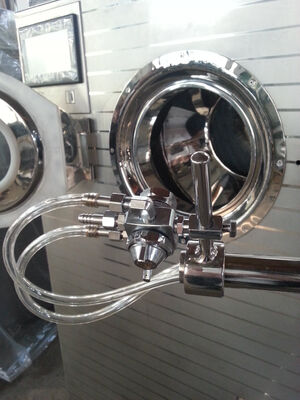

The tablets make complicated and constant track movement with easy and smooth turning and frequent exchanging in the clean and closed rotational cylinder of the film coating machine. And it can automatically spray coating medium according to the process flow and reasonable process parameters. The hot air exhausted through the bottom of the tablets under the effect of air exhaust and negative pressure so as to make coating medium dry quickly on the surfaces of the tablets and form a firm, fine and close and smooth surface film.
Technical Parameter
| Item/Model | BG400E | BG150E | |
| Load capacity | 400Kg | 150 Kg | |
| Rotation speed of coating pan | 1-13RPM | 1-16rpm | |
| Power of main machine | 3 Kw | 2.2kw | |
| Diameter of coating pan | Φ1580mm | φ1200mm | |
| Motor of air exhaust cabinet | 7.5 Kw | 5.5kw | |
| Air exhaust flow | 10000 m³/h | 7419m³/h | |
| Motor power of hot air cabinet | 2.2 Kw | 1.5kw | |
| Hot air flow | 3517 m³/h | 2356m³/h | |
| Weight of main machine | 1000 Kg | 850 Kg | |
| Clean air | Pressure | ≥0.4Mpa | ≥0.4Mpa |
| Air consumption | 1.5 m³/min | 0.7m³/min | |
| Machine dimension | Main machine(mm) | 2050×1670×2360 | 1570×1260×2030 |
| Hot air cabinet(mm) | 900×800×2260 | 900×800×1935 | |
| Air exhaust cabinet(mm) | 1050×1050×2000 | 950×950×1950 | |
| Item/Model | BG80E | BG-40E | BG10E | |
| Load capacity | 80 Kg | 40 Kg | 10 Kg | |
| Rotation speed of coating pan | 1-19RPM | 1-21RPM | 1-25RPM | |
| Power of main machine | 1.5 Kw | 1.1 Kw | 0.55 Kw | |
| Diameter of coating pan | Φ930mm | Φ750mm | Φ500mm | |
| Motor of air exhaust cabinet | 3 Kw | 2.2 Kw | 0.75 Kw | |
| Air exhaust flow | 5268 m³/h | 3517 m³/h | 1285 m³/h | |
| Motor power of hot air cabinet | 1.1 Kw | 0.75 Kw | 0.37 Kw | |
| Hot air flow | 1685 m³/h | 1285 m³/h | 816 m³/h | |
| Weight of main machine | 600 Kg | 500 Kg | 200 Kg | |
| Clean air | Pressure | ≥0.4Mpa | ≥0.4Mpa | ≥0.4Mpa |
| Air consumption | 0.35 m³/min | 0.2 m³/min | 0.2 m³/min | |
| Machine dimension | Main machine(mm) | 1210×1000×1730 | 1000×800×1900 | 900×620×1800 |
| Hot air cabinet(mm) | 900×800×19350 | 900×800×1935 | 600×530×1600 | |
| Air exhaust cabinet(mm) | 820×720×1750 | 820×720×1750 | 600×530×1600 | |
1. we have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.
5. We have Technical Support in below Foreign Cities:
California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Lahore (Distributo
r)
For more informations, please contact us by mail or telephone call, you are the most welcome here.
