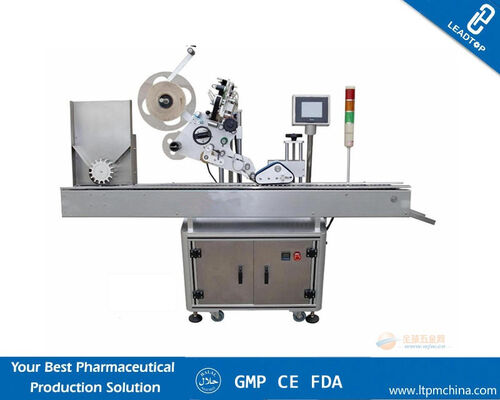

Siemens PLC Multi Function Automatic Labeling Machine with Date Printer

Siemens PLC Multi Function Automatic Labeling Machine with Date Printer

self adhesive labelling machine

automatic round bottle labeling machine

Place of Origin:

China

Brand Name:

LTPM China

Certification:

CE, GMP

Model Number:

MT

Contact Us

Request A Quote
Product Details
Product Description



Siemens PLC Multi Function Labeling Machine(with Date Printer)





Quick Detail:





Certificate: CE Certificate

Running speed:: 50-130bottle/min

Model No.: MT-50

Weight:300kg

Overall Size: 2200×1000×1800mm

Material: Stainless steel 304

Driving mode: Servo motor





Description:

our labeling machine applied in round bottles,square bottles and flat bottles with single surface or double surfaces(such as shampoo,shower gel,edible oil,lubricating oil,detergent,eye drop bottles,etc)



1. Imported servo motor, the speed of send label is fast;

2. Touch-screen man-machine interface Operating system, simple and efficiently;

3. Adopt mature technology PLC control system, operation is stable and high-speed;

4. Input type roll label device, make the label attached more solid;

5. The whole machine made of S304 stainless steel and anode handling superior aluminum. Never rust, high corrosion resistance;

6. No object not labeling, automatic alarming when without labels or no labeling





Applications:





1.This machine is used for using the Taiwan touching type of PLC control or knob control.

It is made up of photoelectricity equipment of Japan OMRON. Synchronization electrical,timing electrical, conveyer belt. Import strap etc correlative part.

2.The design of mainframe part absorbed label transmit of import machine and solved the unsteady ingredient of homemade common label.

3.The machine is suitable for various specifications of bottles. Its operation is easy and it can be finished in a short time.

4.The quick printer adopts the motor drive, gas drive. The words in the ribbon are clear and clean.

5.The whole machine is designed to meet GMP standard.

6.This machine is suitable for processing the big round label of medicine, chemical, food, commodity etc.





Specifications:





Production 50-130bottle/min
Label Specifications Glassine paper, adhesive sticker opaque label
Labeling accuracy ±1mm (subject to the roughness of the plane)
The application of label Object customizing
The application of label Height 20-70mm Length 25-120mm
The inner diameter of label Roll 76mm
The outer diameter of label Roll 350mm
Driving mode Servo motor
Power of motor 500w
Voltage AC 220V 50/60Hz Single phase
Overall dimension 2200×1000×1800mm





Competitive Advantage:





1. We have seven technicians who gets passport ready to travel all over world to offer service to you.

2. We have 24hours hot line for Technical Support.

3. We get 18hours internet line for technical support.

4. Video camera in workshop to help you adjust and solve machine problem in working situation.

5. We have Technical Support in below Foreign Cities:

California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Laho





Our Work Shop:





Siemens PLC Multi Function Automatic Labeling Machine with Date Printer 0





Station:





Siemens PLC Multi Function Automatic Labeling Machine with Date Printer 1





Our Machine Get Ready For Sending:





Siemens PLC Multi Function Automatic Labeling Machine with Date Printer 2
