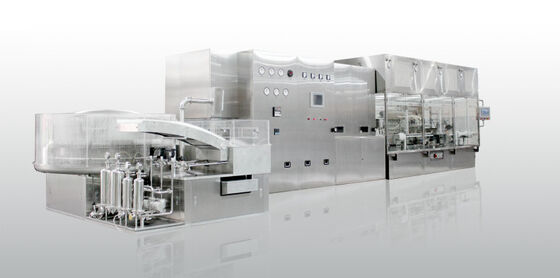

AGF -4 Liquid Bottle Filling Machine Vial Washing Sterilizing And Sealing

AGF -4 Liquid Bottle Filling Machine Vial Washing Sterilizing And Sealing

KHG04 Rotary Filling and Stoppering Machine

The equipment is mainly used for filling and partially stoppering or complete stoppering under aseptic conditions of penicillin bottle in pharmaceutical factory.

The oven mesh belt delivers penicillin bottle that is cooling to buffer arranging bottles plate. Under the protection of the hundred level laminar flow, the bottle will be sorted into a single row and enter the accelerated turntable. Through the equal position of equi-index plate and punch block track filling. Then partially stoppering is uniform and continuous. The bottle of no filling liquid or no bottle stopper will eliminate to waste channel automatically when go by the vacuum chuck.→Qualified product will go to gallery when go by the vacuum chuck.

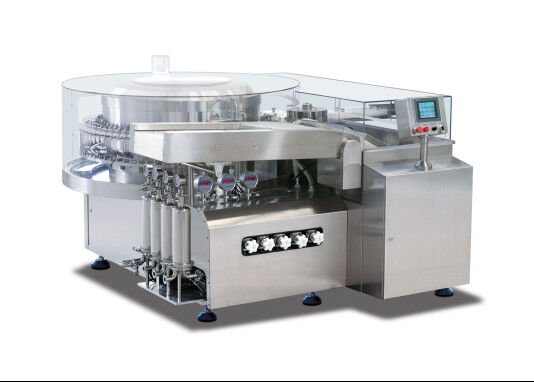

QCL 60 Vertical Ultrasonic Bottle Washing Machines

The equipment is mainly used for washing of vial bottle in pharmaceutical factory.

The bulk of the bottles get into ultrasonic washing tank through unscramble bottle inclined mesh belt. Separate the bottles one by one through packing auger and sent to lifting starwheel. Then the bottle is transferred to a high level by AISI 304 stainless steel manipulator and clamped. Turn over 180° to make the bottle down and proceed cleaning technique of three water and three gas of inner wall, one water and one gas of outer wall. Finally the dry bottle overturn bottleneck that is upwards and carry out further drying and sterilization by dialing the bottle to oven

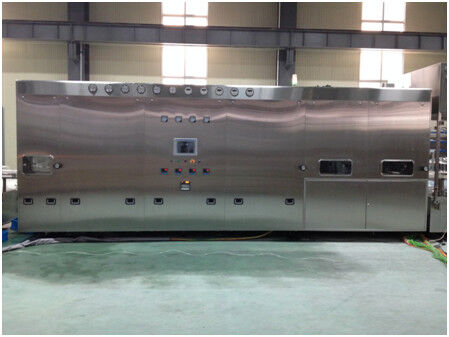

SZA 820(2900)Hot Air Circulated Sterilization Tunnel

The equipment is mainly used for drying and sterilization of vial bottle in pharmaceutical factory.

When the bottle is washed, get into the oven uniform and slowly through the transmission network. The bottles were followed by the section of preheating, the high temperature sterilization and the cooling. Wetted fan in the section of preheating will pump the water vapor out of the bottle. High temperature sterilization for bottles about 5 minutes in the environment of 300——320℃. Cooling section is cooling down the bottle after sterilization. Finally it can meet the process requirements and the whole process of drying and sterilization is controlled by real-time monitoring operation.
