Place of Origin:
CHINA
Brand Name:
LTPM CHINA
Certification:
CE
Model Number:
DPP-Series
Contact Us

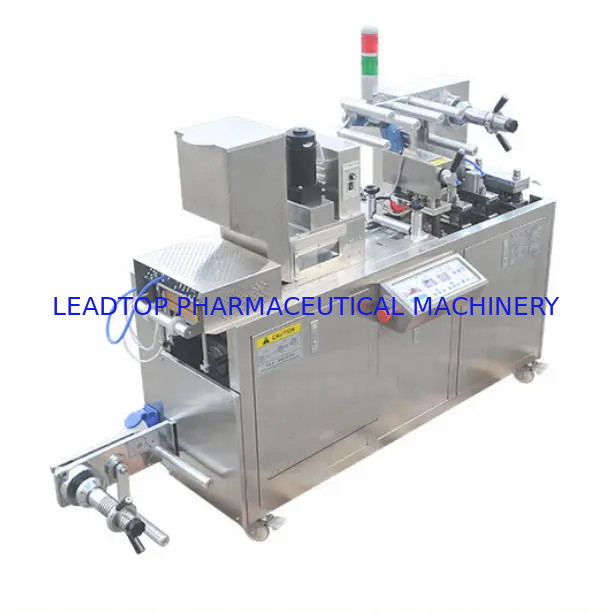

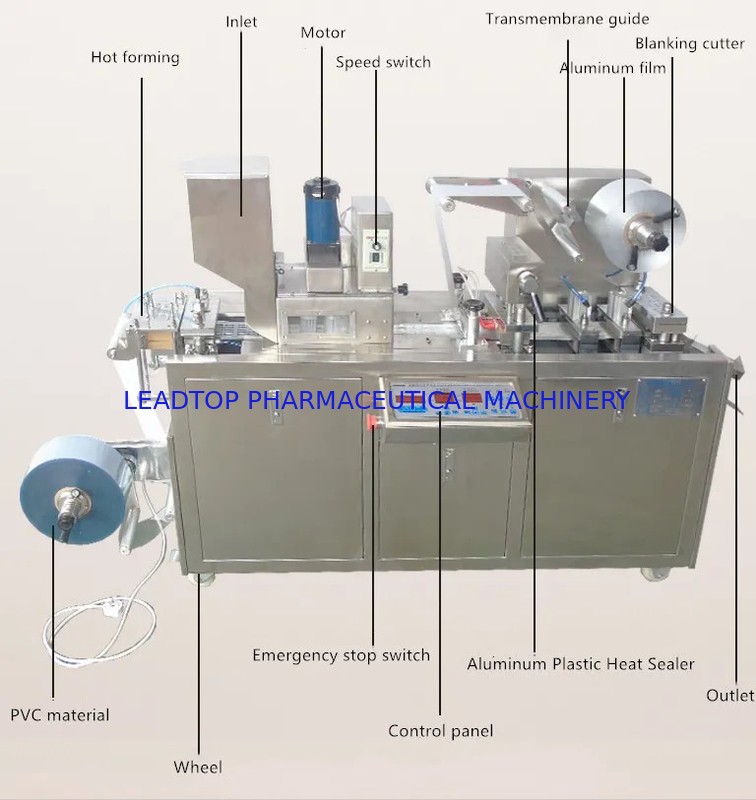

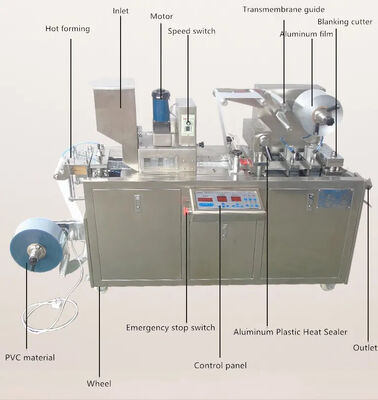

DPP-140 multifunctional automatic blister packing machine has the advantages of innovative design, the contact part of the drug is made of stainless steel and high grade aluminum alloy materials , applicable to the pharmaceutical, food, health care products packaging industry and medium-big size hospitals for plain tablets, sugar coated tablets, capsules, tomato sauce, chocolate sauce, honey and so on.
Advantages
1.Stepless frequency conversion speed regulation, mechanical traction.
2.Adjustable travel range 30-100mm, convenient adjustment, accurate synchronization.
3.Equipped with four standard stations (molding, heat sealing, indentation, punching and cutting) and install four posts at each station, convenient adjustment, stable operation;
4.Adopt plate mold, positive pressure molding, batch number, indentation tangent, aluminum foil / aluminum automatic discharge;
5. Equipped with one set universal feeder, the filling rate is as high as 99.5%;Technical Parameters
| Punching Frequency | 10-40time/min |
| Production Capacity | 2400 pcs/h |
| Max formed area and depth | 80*110*26mm |
| Standard stroke range | 20-70mm, can as customer request |
| Standard section | 80*57mm, can as customer request |
| Air pressure | 0.6-0.8MPa |
| Total power | 220/380V 50Hz 3.2KW |
| Main electrode power | 0.75kw |
| PVC rigid sheet | 0.15-0.5*80mm |
| PTP aluminum foil | 0.02-0.035*80mm |
| Dialysis paper | 50-100g*80mm |
| Mould cooling | Tap or circulation water |
| Noise index | less than 75dBA |
| Dimension | 1600*750*1100mm |
| Weight | 650kg |
