Place of Origin:
CHINA
Brand Name:
LTPM CHINA
Certification:
CE
Model Number:
DPP-Series
Contact Us

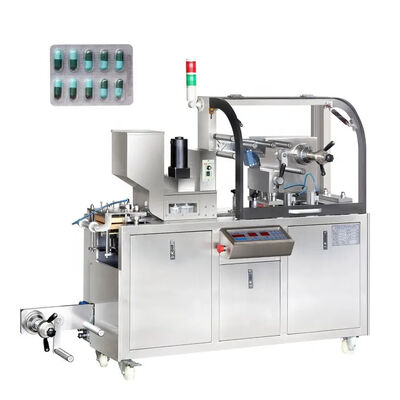

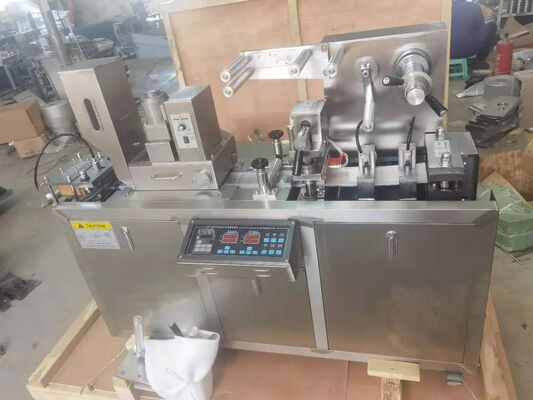

Designed by our company earliest and produced at largest batch process,DPP-88 mini-type bubble-cap packing machine is the smallest ,lightest cheapest and energy consumption lowest packing equipment among the similar mode both in domestic and abroad .This machine is widely suitable for new product preparation room of pharmaceutical section of people's hospital ,small pharmaceutical factory.
Feature:
1.It adopts the newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and noises of other gear wheel transmission can be avoided.
2.Imported controlling system is adopted; also it can be equipped with detecting and rejection function device for number of medicines according to the user's requirement
3.It adopts photoelectrical controlling system to make PVC, PTP, Aluminum/Aluminum material to be automatically fed and waste side to be cut automatically to guarantee the Synchronous stability of over- length distance and multi stations.
4.It can be optional equipped with photocell correction device, imported stepper motor traction and image- character register to optimize packing grade.
Frequency | one blister per stroke |
Punching frequency | 10-33 cut/min for alu pvc. |
Capacity (according to your sample) | Alu Pvc: 1980 blisters/hour |
Plate size | 110×80mm(Designed according user's requirement) |
Packing material |
PVC hard piece:width65-70mm,thickness0.25-0 .30mm, bore diameter of rolling shaft60-70mm |
Alu foil: width65-70mm,thickness0.02-0.025mm, bore diameter of rolling shaft60-70mm |
|
Power consumption | 5kw, 220v/50-60hz. Single phase |
Overall size L×W×H(mm) | 1840x600x1050mm |
Weight | 350kg |
