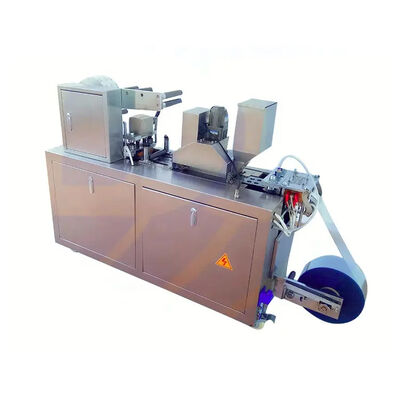

Full Automatic Oil Blister Packing Machine Honey Chocolate Sauce Cream Syrup 1.6kw

Brand Name:	LTPM CHINA
Model Number:	DPP-Series
MOQ:	1 SET
Price:	Negotiable
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	25 SETS Per month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Overall Dimension:

1840*950*1300 (mm)

Production Capacity(pcs/h):

2400 Pcs/hour

Standard Travel Range:

40～160mm

Air Pressure(Mpa):

0.6-0.8

Total Power:

1.6kw

Main Motor Power:

380V/220V 50Hz 6kw

Air Pressure:

0.6-0.8Mpa

Weight(kg):

600KG

Packaging Details:

wrapped with strech film packed into Export Standard Wooden case, this package afford long time sea shipment and anti moisture.

Supply Ability:

25 SETS Per month

Highlight:

Full Automatic Oil Blister Packing Machine

1.6 kw Syrup Blister Packing Machine

25 times/min Blister Packing Machine

Product Description

It is specially designed for medium size productions that require a high flexibility.
1) Flat platen type forming and sealing, constant sealing.2) Pressure and temperature ensure a perfect blister.
3) Heat forming and cold forming: PVC, PVC+PVDC, PVC/aclar, PP, ALU-ALU.etc.
4) Easy changeover without tools.
5) Up to 200 blisters/min.

Full Automatic Oil Blister Packing Machine Honey Chocolate Sauce Cream Syrup 1.6kw 0

Punch speed	10-25 times/min
Max. forming depth	Standard 26mm,Maximum 50mm
Air pressure	0.6mpa-0.8mpa >0.3m3/min
Power	380V/220V 50Hz 6kw
Main motor power	1.5kw
Material types	PVC, PET, PS, composite film,aluminium foil
Material width	260(330)mm
Mould cooling	tap water or recycled water 60L/h
Overall dimension	27107201600mm
Weight	2000kg

Full Automatic Oil Blister Packing Machine Honey Chocolate Sauce Cream Syrup 1.6kw 1
