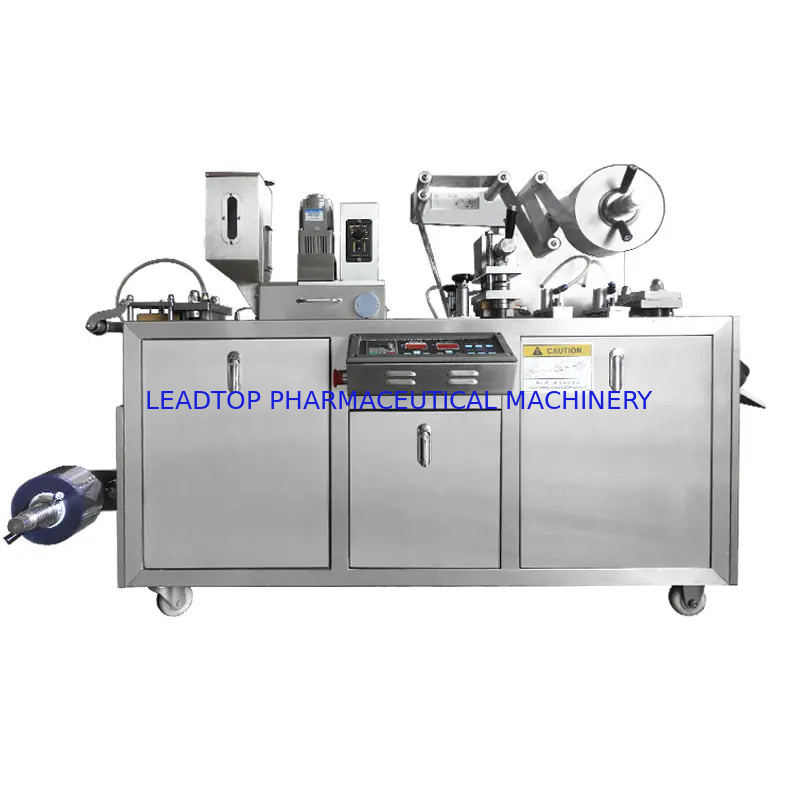

Tablet Capsule Blister Packaging Machine Thermoforms 2400 Pcs/Hour 160mm

Tablet Capsule Blister Packaging Machine Thermoforms 2400 Pcs/Hour 160mm

Tablet Capsule Blister Packaging Machine

2400 pcs/hour Blister Packaging Machine

Blister Packaging Machine 160mm

Place of Origin:

CHINA

Brand Name:

LTPM CHINA

Certification:

CE

Model Number:

DPP-Series

Contact Us

Request A Quote
Tablet Capsule Blister Packaging Machine Thermoforms 2400 Pcs/Hour 160mm Tablet Capsule Blister Packaging Machine Thermoforms 2400 Pcs/Hour 160mm
Product Details
Overall Dimension:
1600*600*1100MM
Production Capacity(pcs/h):
2400 Pcs/hour
Standard Travel Range:
40～160mm
Air Pressure(Mpa):
0.4-0.6
Total Power:
220V/380V 50HZ
Main Motor Power:
3.2KW
Air Pressure:
0.6-0.8Mpa
Weight(kg):
450KG
RELATED PRODUCTS
Good price High Speed Capsule Blister Packaging Machine Automatic Butter 160mm online

High Speed Capsule Blister Packaging Machine Automatic Butter 160mm

Get Best Price
Good price Full Automatic Oil Blister Packing Machine Honey Chocolate Sauce Cream Syrup 1.6kw online

Full Automatic Oil Blister Packing Machine Honey Chocolate Sauce Cream Syrup 1.6kw

Get Best Price
Good price Pharma Used Blister Packing Machine Automatic 2400 Pcs/Hour 380V 0.6Mpa online

Pharma Used Blister Packing Machine Automatic 2400 Pcs/Hour 380V 0.6Mpa

Get Best Price
Good price Automatic Capsule Blister Packing Machine Pill / Tablet 4950*740*1700 40mm online

Automatic Capsule Blister Packing Machine Pill / Tablet 4950*740*1700 40mm

Get Best Price
Contact Us
86-0577-65158955
info@chinaleadtop.com
86-0577-65158944
Contact Now
Product Description

1. The latest domestic high-power transmission mechanism is adopted, and the main drive shaft is driven by the platoon chain, which eliminates the error and noise of other gear transmissions.
2. The electrical appliance adopts imported control system, and it can be equipped with missing material and leakage compensation device and missing particle detection and removal device according to customer requirements.
3. The whole machine adopts a segmented combination: PVC forming, feeding and heat sealing are one section, and tropical aluminum cold forming, heat sealing and punching can be divided into one section for separate packaging.
4. Adopt photoelectric control system, automatic feeding of PVC, PTP, duralumin packaging, automatic punching of waste edges, to ensure the stability of ultra-long-distance multi-station synchronization.
5. It can be equipped with photoelectric detection and correction device, equipped with imported stepper motor traction, printing and packaging of graphics and text, to optimize the grade of packaging.

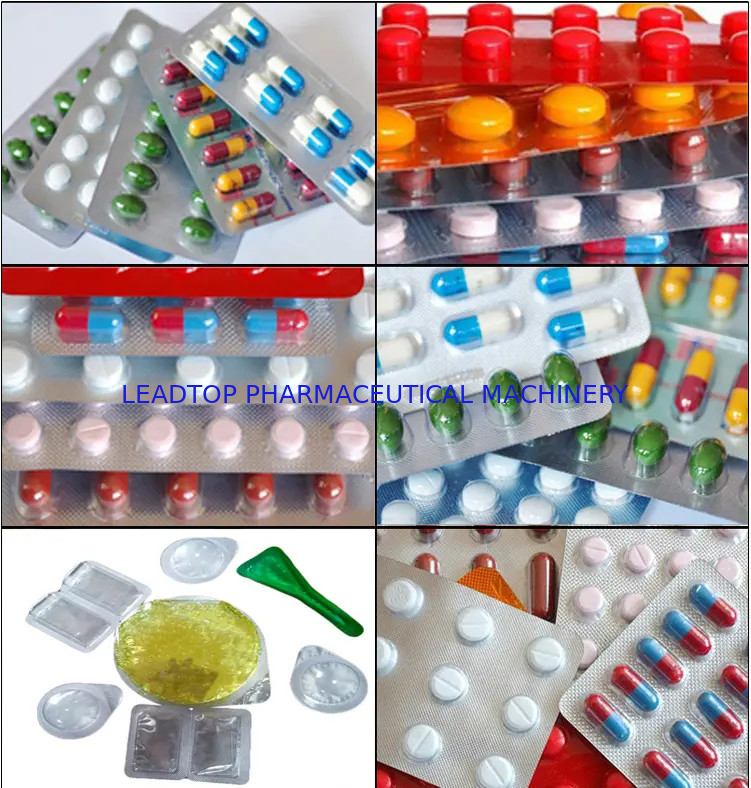

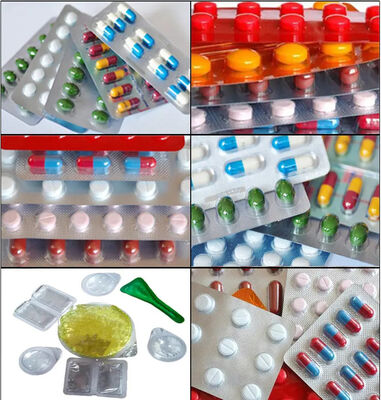

6. This machine is suitable for: capsules, plain tablets, sugar coatings, capsules, injections, special shapes, etc., as well as medical devices, light foods, and electronic components in blister sealed packaging.

Tablet Capsule Blister Packaging Machine Thermoforms 2400 Pcs/Hour 160mm 0

Production capacity 2400 editions/hour
Forming area depth 85*115*14MM (can be customized to 30MM)
Standard stroke range 20-70MM (can be designed as required)
Standard plate 80*57MM one out of two (can be designed according to requirements)
Air pressure 0.6-0.8Mpa
Total power of power supply 220V/380V 50HZ 3.2KW
Main motor power 750W
PVC hard film 0.15-0.5*80MM
PTP aluminum foil 0.02-0.035*80MM
Punching frequency 10-40 times/min
Dialysis paper 50-100G*80MM
Mold cooling tap water or circulating water
Dimensions 1600*600*1100MM
Machine weight 450KG
Company Profile
Tablet Capsule Blister Packaging Machine Thermoforms 2400 Pcs/Hour 160mm 1
Our Company
- Since year 1996, LTPM CHINA had started manufacturing Pharmaceutical and food packaging machines such as Capsule Filling Machine, Ampoule Filling and Sealing Machine, Blister Packaging Machine, Pill Counting and Bottling Line, Cartoning Machine, Bag Packaging Machine, Liquid Filling and Capping Machine etc. - LTPM CHINA designs different types of packaging lines for customers, including standard or non-standard models. - LTPM CHINA's machinery = high automation + high precision + more energy saving + satisfactory warranty and after-sales service + trusted brand
Tablet Capsule Blister Packaging Machine Thermoforms 2400 Pcs/Hour 160mm 2
Our Workshop
FAQ
Q: What is the warranty period for your machine?
A: 5 years free warranty.

Q: Are you a real factory/manufacturer?
A: Of course. Our factory is inspected by third party. We much welcome you to visit us and free to pick you up form hotel. You don't have time? We can use live video and you can visit us on line.

Q: Is engineer available to serve oversea?
A: Yes, we can send engineers to your factory but all the fee will be on buyers. In order to save your cost, we will send you a video of full details machine installation and assist you till the end.

Q: How can we make sure about the machine quality after placing the order?
A: Before delivery, we will running half hour of the machine to checking the stability and sending you the testing video until you sastisfy. We will setting all the parameters well. And also you can arrange for quality checking by yourself or by your contacts in China.

Q: We are afraid you won't send us the machine after we send you the money?
A: We have our business license and certificate. And it is available for us to use alibaba trade assurance service, protect your money, machine qulaity and delivery are guaranted.
