Flat Plate Automatic Blister Packing Machine For Tablets Capsule 160mm

Brand Name:	LTPM CHINA
Model Number:	DPP-Series
MOQ:	1 SET
Price:	Negotiable
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	25 SETS Per month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Overall Dimension:

2315*630*1405mm

Production Capacity(pcs/h):

18000～236,000 Pcs/hour

Standard Travel Range:

40～160mm

Air Pressure(Mpa):

0.4-0.6

Total Power:

380V/220V 50Hz

Main Motor Power:

3.8Kw

Air Pressure:

0.6-0.8Mpa

Weight(kg):

820/890

Packaging Details:

wrapped with strech film packed into Export Standard Wooden case, this package afford long time sea shipment and anti moisture.

Supply Ability:

25 SETS Per month

Highlight:

Flat Plate Automatic Blister Packing Machine

Blister Packing Machine For Tablets Capsule

160mm Blister Packing Machine

Product Description

Imported controlling system is adopted; also it can be equipped with detecting and rejection function device for number of medicines according to the user’s requirement.

Punching frequency	10-35 Cycles/min.
Production capacity	4200pcs/h
Max. forming area, depth	*13010026mm*
Standard travel range	50-120mm
Standard blister size	*8057mm**
Air supply	0.4-0.6Mpa
Total power	380V/220V 50Hz 3.8Kw
Main motor power	1.5Kw
PVC sheet	*Thickness(0.15-0.5)Width150mm**
PTP	*Thickness (0.02-0.035)150mm**
Dialyzing paper	*(50-100)g150mm**
Cooling mould	Running water, Circulation water
Overall dimension	*23156301405mm*
Weight	820/890Kg
Noise	<75dBA

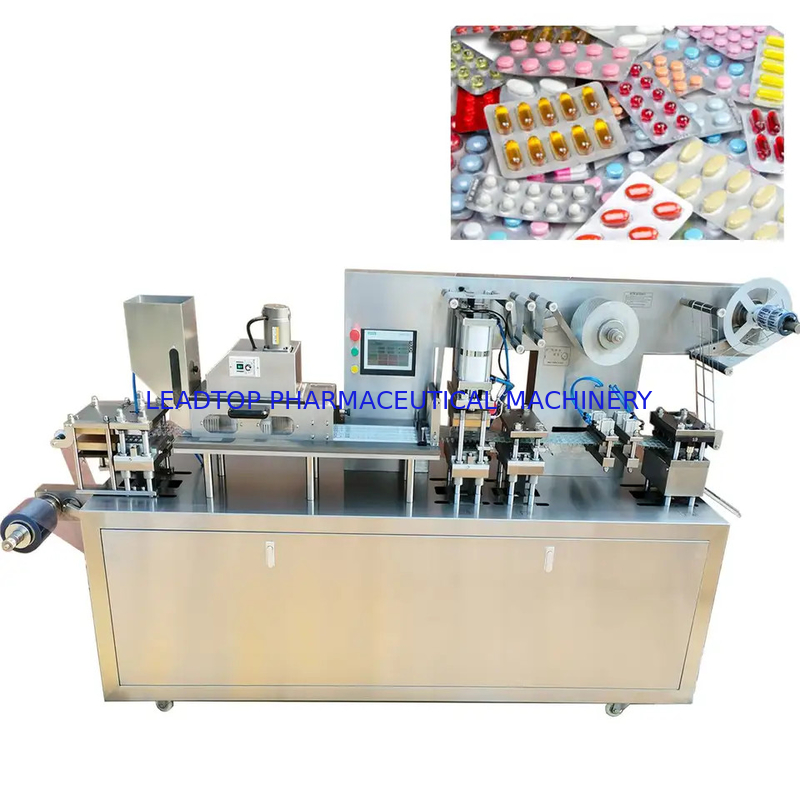

Flat Plate Automatic Blister Packing Machine For Tablets Capsule 160mm 1

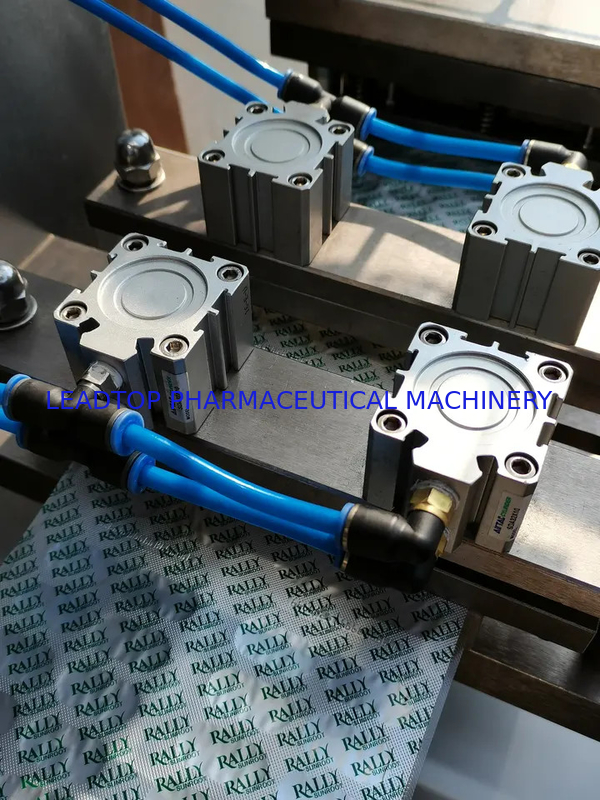

Flat Plate Automatic Blister Packing Machine For Tablets Capsule 160mm 2

Company Profile

Our Company
- Since year 1996, LTPM CHINA had started manufacturing Pharmaceutical and food packaging machines such as Capsule Filling Machine, Ampoule Filling and Sealing Machine, Blister Packaging Machine, Pill Counting and Bottling Line, Cartoning Machine, Bag Packaging Machine, Liquid Filling and Capping Machine etc. - LTPM CHINA designs different types of packaging lines for customers, including standard or non-standard models. - LTPM CHINA's machinery = high automation + high precision + more energy saving + satisfactory warranty and after-sales service + trusted brand
Our Workshop
FAQ
Q: What is the warranty period for your machine? A: 5 years free warranty.

Q: Are you a real factory/manufacturer?

A: Of course. Our factory is inspected by third party. We much welcome you to visit us and free to pick you up form hotel. You don't have time? We can use live video and you can visit us on line.

Q: Is engineer available to serve oversea?

A: Yes, we can send engineers to your factory but all the fee will be on buyers. In order to save your cost, we will send you a video of full details machine installation and assist you till the end.

Q: How can we make sure about the machine quality after placing the order?

A: Before delivery, we will running half hour of the machine to checking the stability and sending you the testing video until you sastisfy. We will setting all the parameters well. And also you can arrange for quality checking by yourself or by your contacts in China.

Q: We are afraid you won't send us the machine after we send you the money?

A: We have our business license and certificate. And it is available for us to use alibaba trade assurance service, protect your money, machine qulaity and delivery are guaranted.
