Place of Origin:
CHINA
Brand Name:
LTPM CHINA
Certification:
CE
Model Number:
DPP-Series
Contact Us
1. The whole machine can be divided into packaging to enter the 2.2 meter elevator and split purification workshop.
2. The key components are all made of high quality stainless steel and high-grade aluminum alloy material.
3. Novel mold positioning device, It is very convenient to replace the mold with the positioning mold and the whole guide rail ,to meet the general requirements of quick mold change.
|
Product Model |
DPP-115 |
DPP-140 |
|
Cutting Frequency |
10-40 time/min | 15-40 time/min |
| Production Capacity | 2400 plate/h | 4800 plate/h |
| Max. Forming Size | 115*85*14mm | 130*110*26mm |
| Standard Plate | 80*57mm Customized | 80*57mm Customized |
| Standard Stroke | 20-70mm Customized | 20-110mm Customized |
| PVC Rigid Sheet | 0.15-0.5*80mm | 0.15-0.5*140mm |
| PTP Aluminum Foil | 0.02-0.035*80mm | 0.02-0.035*140mm |
| Dialysis Paper | 50-100g*80mm | 50-100g*140mm |
| Total Power | 380V/220V 50Hz 3.2kW | 380V/220V 50Hz 5.2kW |
| Main Motor Power | 0.75kW | 1.5kW |
| Air Pressure | 0.6-0.8Mpa | 0.6-0.8Mpa |
| Noise | <75dBa | <75dBa |
| Mould Cooling | Tap water or Recycling water | Tap water or Recycling water |

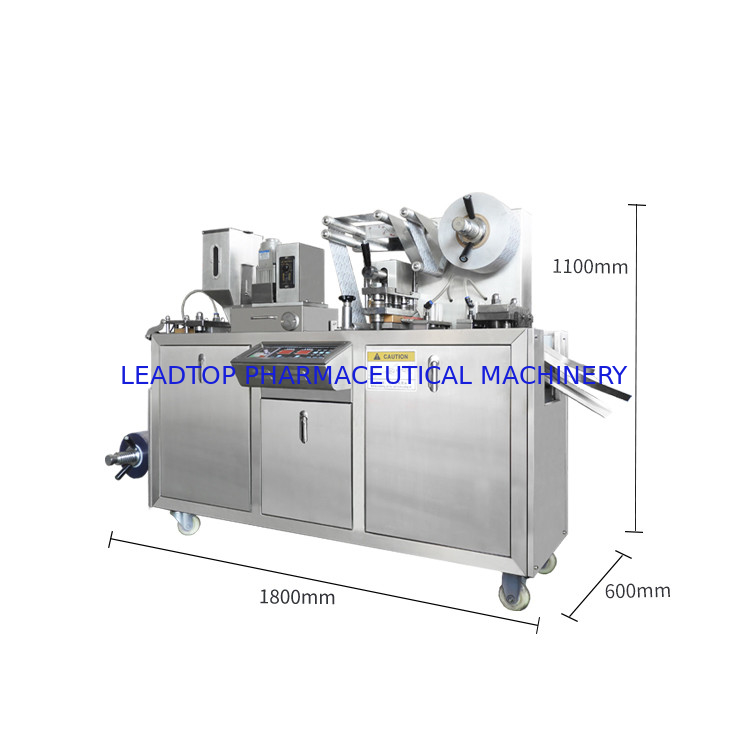

| Machine Dimensions | 1800*600*1100mm | 2150*550*1370mm |
| Machine Weight | 400kg | 600kg |
