Flat Plate Blister Packing Machine 380V Pvc Automatic

Flat Plate Blister Packing Machine 380V Pvc Automatic

Flat Plate Blister Packing Machine

380V Automatic Blister Packing Machine

Pvc Blister Packing Machine

Place of Origin:

CHINA

Brand Name:

LTPM CHINA

Certification:

CE

Model Number:

DPP-Series

Contact Us

Request A Quote
Product Details
Cutting Frequency (Times/min):
20-40
Feeding::
Universal Feeder
Total Power:
380V/220V 50Hz 1.8kw
Air Pressure(Mpa):
0.4-0.6
Max Forming Area And Depth(mm):
80×100×26
Stroke (mm):
20-100
Product Description

This machine is the latest and high automation product designed for middle and small sized pharmacy factory, healthcare factory and preparation-room of hospital, especially for those who need small batches product but many kinds. The machine is adopted with PLC, frequency converter and touch screen operation. It can automatically finish the processed of feeding, forming, heat-sealing, pressing, batch number printing, punching and so on. It is the ideal packing equipment with convenience operation, full purpose function. The product passed the provincial science and technology appraisal.

It is suitable for capsule, tablet, honey pill, candy, liquid (ointment), syringe as well as irregular shape Al-plastic or paper-plastic packing in pharmacy, healthcare, food, cosmetics, medical equipment industry etc.

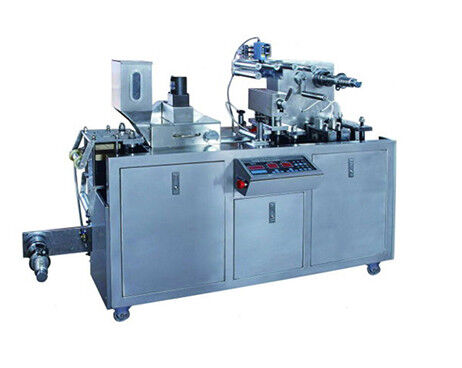

Flat Plate Blister Packing Machine 380V Pvc Automatic 0

Features:

1.Main transmission part adopts parallel axis and bevel wheel speed reducer, with novel structure, stable running, long longevity and low noise.

2.Spare parts as heat-sealing station fixing, forming, impressing and cutting etc can move freely to adjust the distance and it is easy to change moulds.

3.With manipulator towing and adjustable travel range, it can be suited for blister packing of various sizes.

4.Flat plate structure can pack special shape products, such as: elliptic shape, square shape, triangle shape, liquid, paste and syringe etc.

Cutting Frequency (Times/min) 20-40
Capacity(Blister/h) 2400 (According To Standard Plate80×57 Can Calculate The Max Capacity)
Max forming area and depth(mm) 80×100×26 (Standard 70×90×14)
Stroke (mm) 20-100 (Can Be Manufactured As User's Requirements)
Air Pressure(Mpa) 0.4-0.6
Standard Plate (mm) 80×57 (Can Be Manufactured As User's Requirements)
Total Power 380V/220V 50Hz 1.8kw
Main motor power (kw) 0.75
PVC hard pieces(mm) 0.15-0.5×80
PTP Aluminum Foil (mm) 0.02-0.035×80
Dialysis Paper (mm) 50-100g×80
Mould Cooling Tap water or recycle water
Overall Dimensions (mm) 1400×460×950(L×W×H)
Weight (Kg) 450
