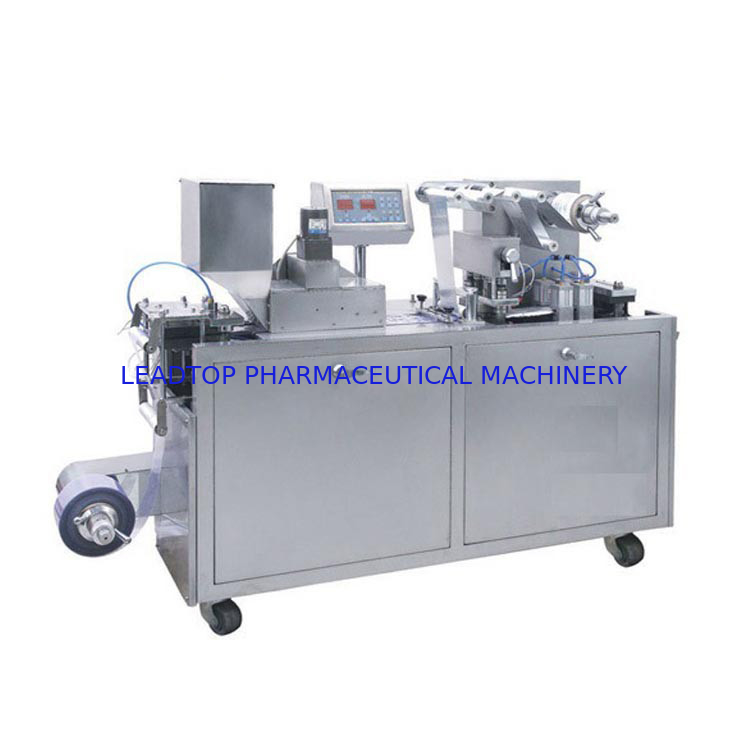

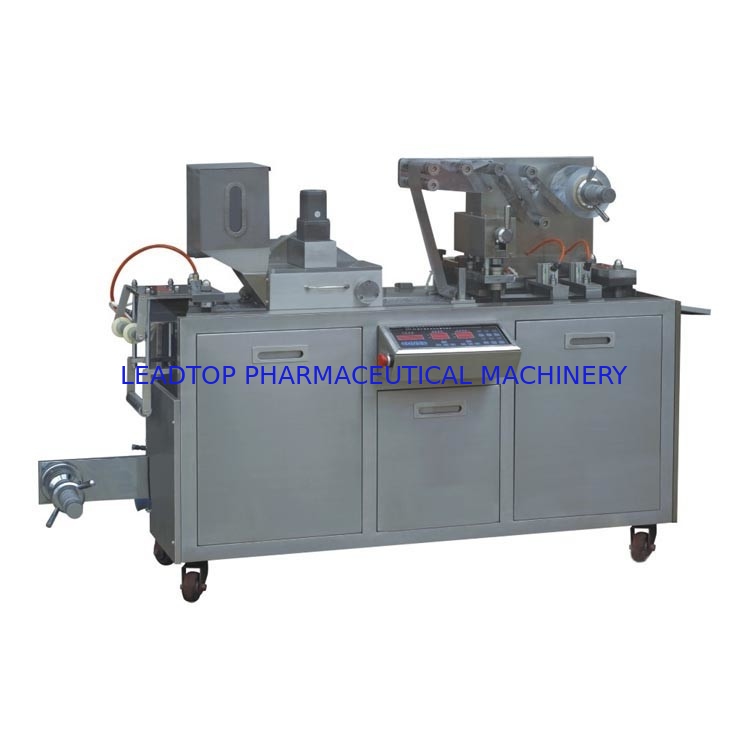

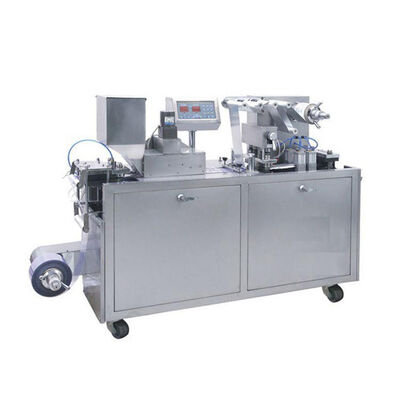

Dpp80 Plastic Tablet Blister Packing Machine Small Aluminum Capsule

Dpp80 Plastic Tablet Blister Packing Machine Small Aluminum Capsule

Product Details:

Place of Origin: CHINA
Brand Name: LTPM CHINA
Certification: CE
Model Number: DPP-Series

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: wrapped with strech film packed into Export Standard Wooden case, this package afford long time sea shipment and anti moisture.
Delivery Time: 25days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 25 SETS Per month
Get Best Price Contact Now

Detail Information

Control System: Micro Computer Feeding:: Universal Feeder
Power: 2.2kw Air Pressure(Mpa): 0.4-0.6
Dialyzing Paper: 50~100g*260mm Standard Travel Range: 40~110mm
High Light:

Plastic Tablet Blister Packing Machine

,

Dpp80 Blister Packing Machine

,

Aluminum Capsule Blister Packing Machine

Product Description

This product is a new packing machine designed by our company; it has reached domestic leading level. It is suitable for capsule, tablet, big honey pill, candy, liquid, paste, syringe as well as irregular shape Al-plastic, paper-plastic composite and Al-Al sealing packing in pharmacy, healthcare, food, cosmetics, medical equipment industry etc. This machine adopts micro-computer PLC, frequency converter, touch panel operation, high automation; it is an ideal blister packing equipment. The product passed the provincial science and technology appraisal.

Dpp80 Plastic Tablet Blister Packing Machine Small Aluminum Capsule 0

Feature:

a. Equipped with optical fiber or inductive self-inspection mechanism, it can automatically eliminate the waste plate with missing grains, and the packaging yield can reach 100%. b. The main drive adopts parallel shaft helical gear reduction box with novel structure, stable operation, low noise and long service life. d. Mold nail positioning, pressing plate fixation, mold replacement convenient and accurate, save packaging materials. e. The fixing, forming, batch number, indentation and blanking devices of the heat-sealing station can move freely to adjust the spacing, which is convenient for correction and easy to operate. f. Manipulator traction, adjustable travel, suitable for the packaging of different size plates.Flat structure, can be packaged oval, square, triangle and other different shape items g.It adopts the newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and noises of other gear wheel transmission can be avoided. h.Imported controlling system is adopted; also it can be equipped with detecting and rejection function device for number of medicines according to the user’s requirement. i.It adopts photoelectrical controlling system to make PVC, PTP, Aluminum/Aluminum material to be automatically fed and waste side to be cut automatically to guarantee the Synchronous stability of over- length distance and multi stations. j.It can be optional equipped with photocell correction device, imported stepper motor traction and image- character register to optimize packing grade. k.The machine is suitable for industries of foodstuff, medicine, medical instruments, hardware, electronics and etcfor packing.

model DPP-80(Hard double aluminum)
Cutting Frequency (Times/min) 6-20(one at a time)
Normal section 57×80mm(one at a time)
Maximum formed area 70×90×14mm
Feed stroke optional range 20-80mm( are designed according to user requirements)
Main Motor Power (kw) 0.75KW
Total power of supply 380V/220V 50HZ 3.6KW
Aluminum molding(mm) 0.1-0.15x100
PVC hard piece(mm) 0.25-0.5 x100
Mercury gas storage >0.3stere(provide for oneself)
Refrigeration circulating water or tap water
Weight(LxWxH) 450kg
Size 1400×460×950
