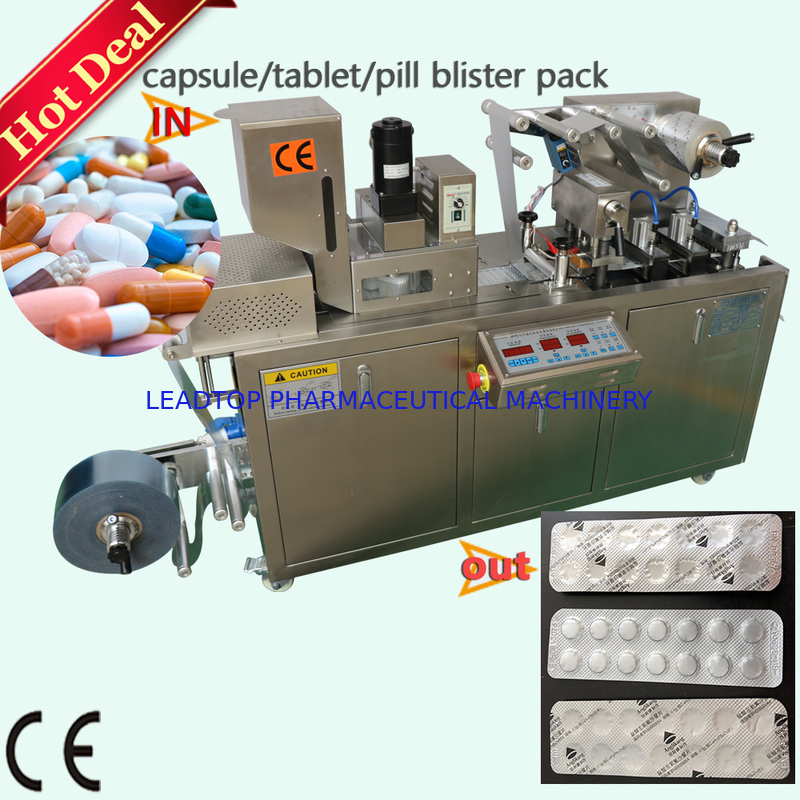

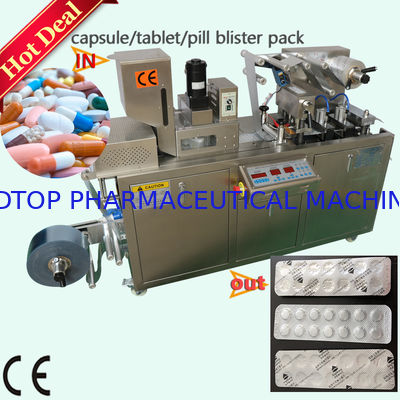

Automactic Tablet Pill Blister Packing Machine 2.2kw Mini Blue Tablet Capsule

Brand Name:	LTPM CHINA
Model Number:	DPP-Series
MOQ:	1 SET
Price:	Negotiable
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	25 SETS Per month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Capacity:

45cutting/min

Packaging Type:

Alu/PVC And Alu/Alu Package

Control System:

Micro Computer

Feeding::

Universal Feeder

Power:

2.2kw

Air Pressure(Mpa):

0.4-0.6

Packaging Details:

wrapped with strech film packed into Export Standard Wooden case, this package afford long time sea shipment and anti moisture.

Supply Ability:

25 SETS Per month

Highlight:

Automactic Tablet Pill Blister Packing Machine

2.2kw Mini Blister Packing Machine

Blue Tablet Capsule Blister Packing Machine

Product Description

This machine is specially designed for laboratory, dosage room in hospital, mini-pharmaceutical factory, mini-motor test workshop, and medicine institute.

This machine is flat plate structure, positive pressure and convenient to operate.

It is small and the stroke Length is adjustable.

It is suitable for AL/PL package for any shape of objects, such as capsule, tablet, pellet, sugar-coated tablet, leisure candy, milk tablet, mini metal etc.

Automactic Tablet Pill Blister Packing Machine 2.2kw Mini Blue Tablet Capsule 0

Automactic Tablet Pill Blister Packing Machine 2.2kw Mini Blue Tablet Capsule 1

Automactic Tablet Pill Blister Packing Machine 2.2kw Mini Blue Tablet Capsule 2

Main Technical Parameters

Cutting Frequency (Times/min)	27
Capacity (10 thousand pcs/h)	1.1-6.5
Stroke (mm)	40-110
Max. Forming Area and Depth(mm)	60×100×14
Air Compressor(m³/min)	≥0.3 (provided by user) oilless air compressor better
Air Pressure (Mpa)	0.4
Standard Plate(mm)	80×57 can be manufactured as user's requirements
Total Power	380V/220V 50Hz 2.8kw
PVC Hard Pieces(mm)	0.25-0.35×90
PTP Aluminum Foil(mm)	0.02-0.035×90
Mould Cooling	tap water or recycling water
