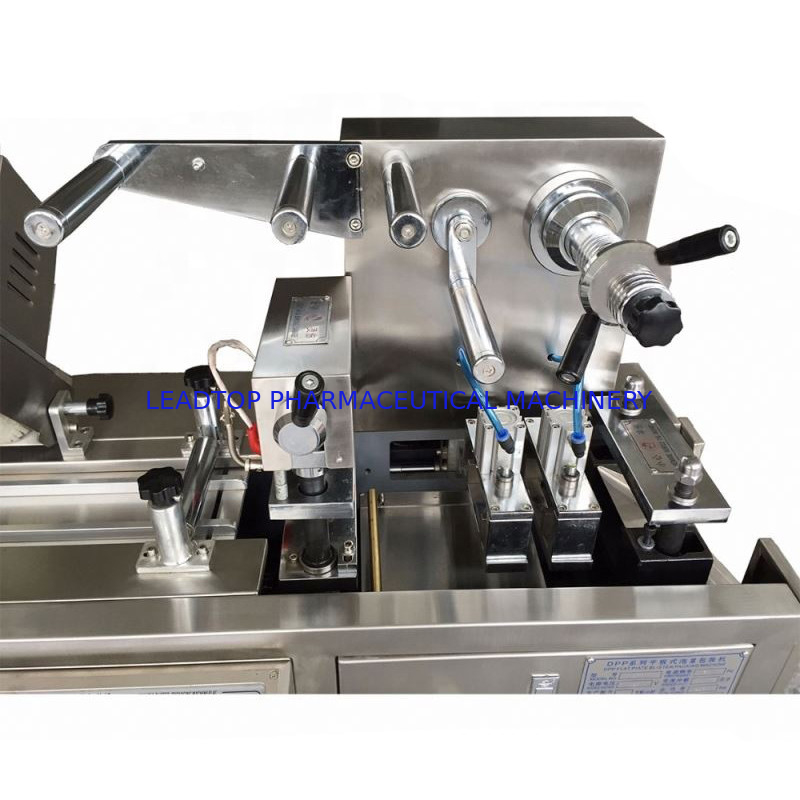

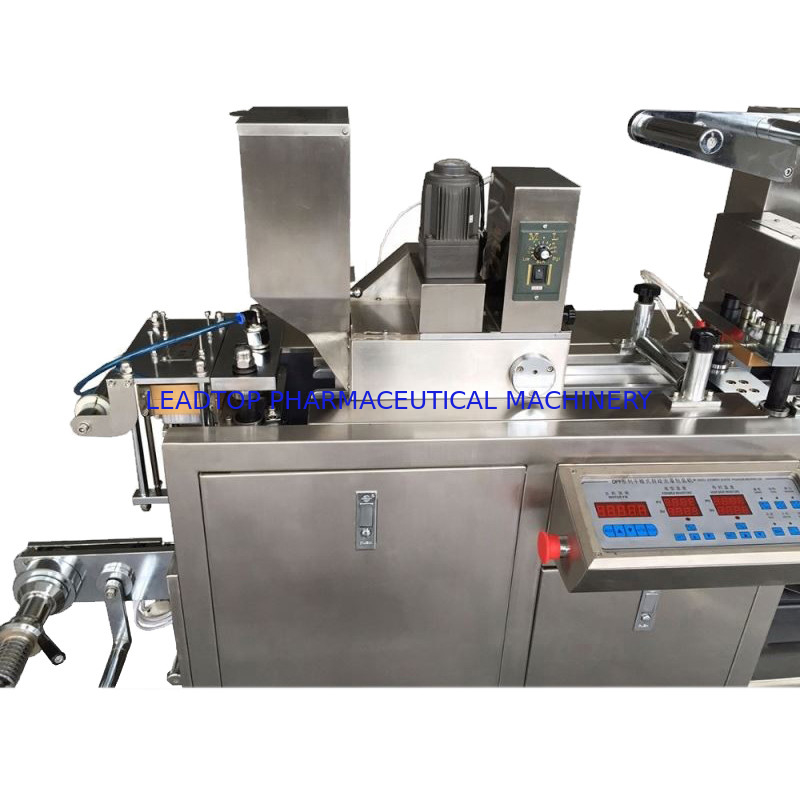

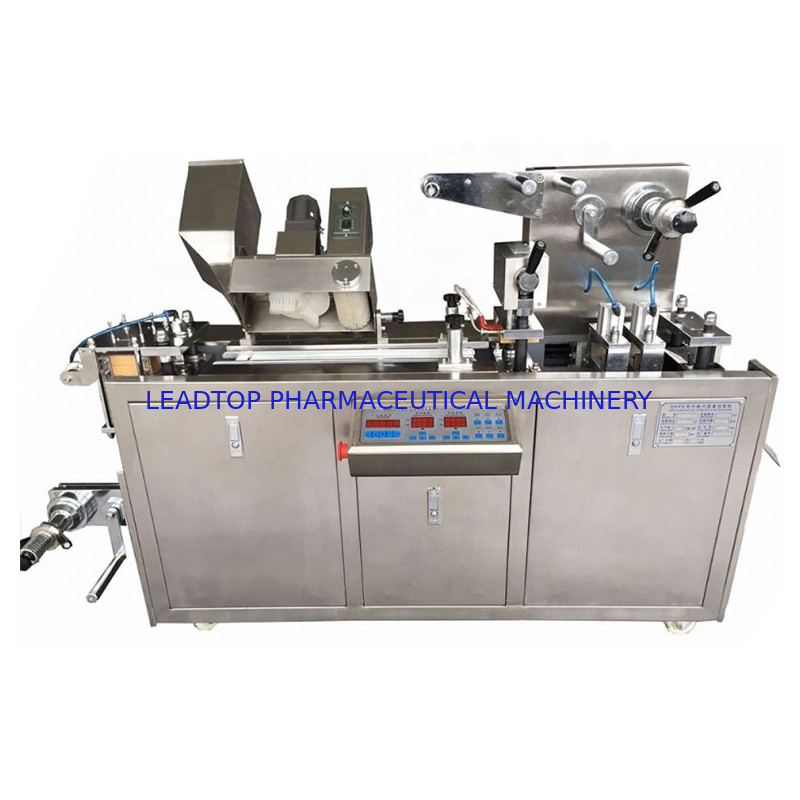

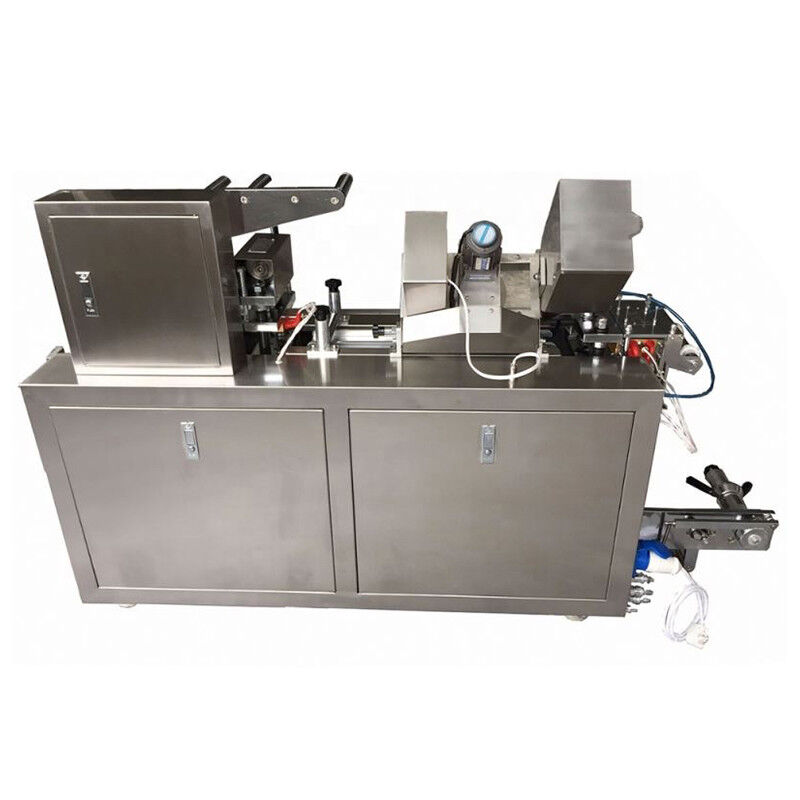

Small Aluminum Blister Packing Machine 0.4 Mpa Plastic Tablet Pharmaceutica

Detail Information

Place of Origin:

CHINA

Certification:

Capacity:

45cutting/min

Packaging Type:

Alu/PVC And Alu/Alu Package

Control System:

Micro Computer

Feeding::

Universal Feeder

Power:

2.2kw

Air Pressure(Mpa):

0.4-0.6

Packaging Details:

wrapped with strech film packed into Export Standard Wooden case, this package afford long time sea shipment and anti moisture.

Supply Ability:

25 SETS Per month

Highlight:

Product Description

1, Main transmission part adopts parallel shaft helical gear box, novel structure, smooth operation, long life, low noise.

2, Heat sealing station is fixed, forming, indentation, punching parts move freely adjust the spacing, easy operation .

3, Manipulator traction, adjustable stroke, can be adapted to the packaging of different sizes.

4, Flat structure, can be packaged article of a special shape, such as oval, square, triangular, liquid, paste, such as syringes.

Small Aluminum Blister Packing Machine 0.4 Mpa Plastic Tablet Pharmaceutica 0

Technical Parameters

Model	DPP-80
Punching frequency	20-40times/min
Capacity	2000 plates/ hour
Max forming area and depth	70×100×12mm(designed according user’s requirement )
Standard Plate	80×57(designed according user’s requirement)
Adjustable scope of travel	30-80(designed according user’s requirement)
Air-compressor	0.6-0.8Mpa
Total power	380V/220V 50Hz 1.8Kw
Main motor power	0.75Kw
PVC	0.15-0.5×80mm
PTP	0.02-0.035×80mm
Dialysis paper	50-100g×80mm
Mold cooling	Use of water cooling or chiller cooling
dimensions	1400×460×950mm(L×W×H)
weight	450Kg
Noise indicators	≤75dBA
