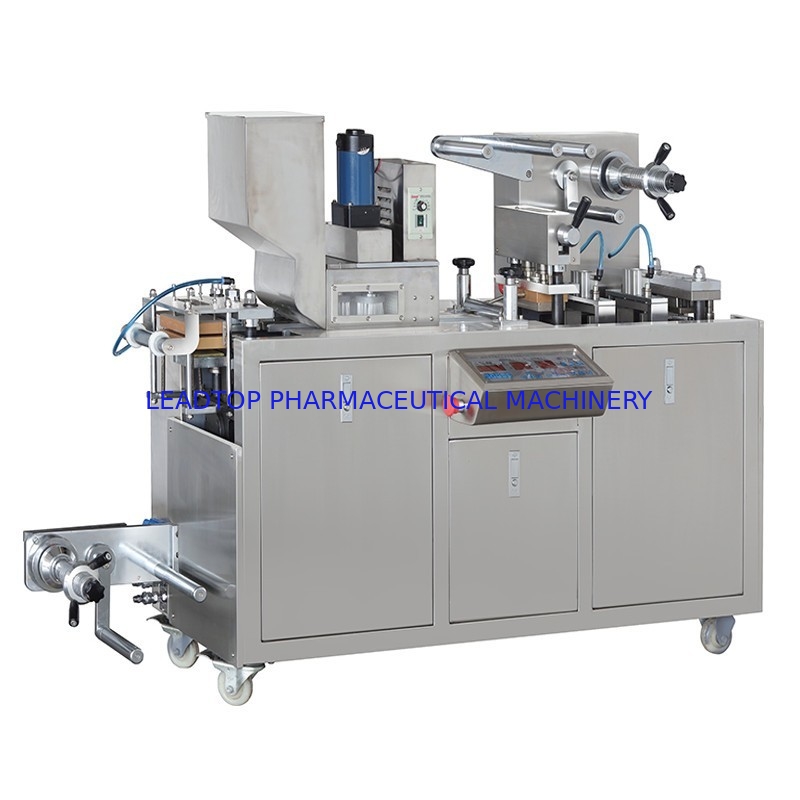

Dpp 80 Automatic Blister Packing Machine Small Aluminum Plastic Tablet Pharmaceutical

Detail Information

Place of Origin:

CHINA

Certification:

Capacity:

45cutting/min

Packaging Type:

Alu/PVC And Alu/Alu Package

Control System:

Micro Computer

Feeding::

Universal Feeder

Power:

2.2kw

Air Pressure(Mpa):

0.4-0.6

Air Supply:

≥0.3 M³/min

Mould Cooling:

Tap Water Or Recycling Water

Packaging Details:

wrapped with strech film packed into Export Standard Wooden case, this package afford long time sea shipment and anti moisture.

Supply Ability:

25 SETS Per month

Highlight:

Product Description

Dpp 80 Automatic Blister Packing Machine Small Aluminum Plastic Tablet Pharmaceutical 0

Model	DPP/B-80
Punch frequency	10-20times/min
Production capacity	2400plates/hour
Max.Forming area & Depth	105*70(standard depth ≤15mm),Max.depth 25mm
Standard stroke range	30-80mm (can be designed)
Standard plate size	80*70mm (can be designed)
Air pressure	0.4-0.6Mpa
Compressed air required	Air compressor ≥0.3m3 /min
Total power supply	220v 50hz 2.8kw
Main motor	0.75kw
PVC hard film	0.15-0.5*110mm
PTP Aluminum Film	0.02-0.035*110mm
Dialysis Paper	50100g110mm
Mould cooling	Tap water or recycling water
Overall dimension	18409001300 (mm)
Weight	Net weight:480kg Gross weight:550kg
Noise index	< 75dBA
